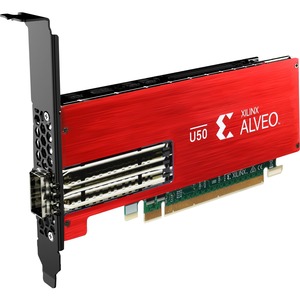

Xilinx Alveo U50 Data Center Accelerator Card

The Xilinx® Alveo™ U50 Data Center accelerator cards provide optimized acceleration for workloads in financial computing, machine learning, computational storage, and data search and analytics. Built on Xilinx UltraScale+ architecture and packaged up in an efficient 75-watt, small form factor, and armed with 100 Gbps networking I/O, PCIe Gen4, and HBM, Alveo U50 is designed for deployment in any server.

Alveo accelerator cards are adaptable to changing acceleration requirements and algorithm standards, capable of accelerating any workload without changing hardware, and reduce overall cost of ownership.

Enabling Alveo accelerator cards is an ecosystem of Xilinx and partner applications for common Data Center workloads. For custom solutions, Xilinx's Application Developer Tool Suite (Vitis™ environment) and Machine Learning Suite provide the frameworks for developers to bring differentiated applications to market.

Compute Resources

• Look-up Tables (LUTs): 872K
• Registers: 1,743K
• DSP Slices: 5,952

Dimensions

• Height: ½ Height
• Length: ½ Length
• Width: Single Slot

Memory

• HBM Memory Capacity: 8 GB
• HBM Total Bandwidth: 316 GB/s
• Internal SRAM Capacity: 28 MB
• Internal SRAM Total Bandwidth: 19 TB/s

Physical Interfaces

• PCI Express: Gen3x 16
• Network Interfaces: 1x QSFP28 (100GbE)
• Clock Precision: IEEE 1588

Tool Support

• Vitis Developer Environment: Yes
• Vitis Platform: Gen3x4 XDMA
• Vivado Design Suite: Yes

Power and Thermal

• Maximum Total Power: 75W
• Thermal Cooling: Passive
• Target Workloads: Machine Learning(ML) Inference

• Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS) 3
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
