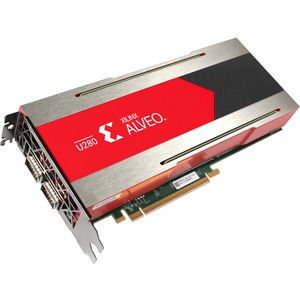

Xilinx Alveo U280 Data Center Accelerator Card

Xilinx® Alveo™ U280 Data Center accelerator cards are designed to meet the constantly changing needs of the modern Data Center. Built on the Xilinx 16nm UltraScale+™ architecture, Alveo U280 offers 8GB of HBM2 460 GB/s bandwidth to provide high-performance, adaptable acceleration for memory-bound, compute intensive applications including database, analytics, and machine learning inference. The U280 acceleration card includes PCI Express 4.0 support to leverage the latest server interconnect infrastructure for high-bandwidth host processors.

Alveo accelerator cards are adaptable to changing acceleration requirements and algorithm standards, capable of accelerating any workload without changing hardware, and reduce overall cost of ownership.

These production Alveo U280 Data Center Accelerator cards can be volume deployed in data centers or used for application development and prototyping. Only the U280 active cards include a USB for developers.

Thermal Cooling

• Passive

Compute

• INT8 TOPs (peak): 24.5

• Width: Dual Slot
• Form Factor: Full Height, 3/4 Length

• HBM2 Total Capacity: 8GB
• HBM2 Total Bandwidth: 460GB/s
• DDR Format: 2x 16GB 72b DIMM DDR4
• DDR Memory Capacity: 32GB
• DDR Total Bandwidth: 38GB/s

• Internal SRAM Capacity: 41MB
• Internal SRAM Total Bandwidth: 30TB/s

• PCI ExpressGen: 4x8 with CCIX
• Network Interfaces: 2x QSFP28 (100GbE)

• Look-up Tables (LUTs): 1,079,000

• Maximum Total Power: 225W
