WPL614PLUS 203 DPI

Name: WPL614PLUS 203 DPI
Brand: WASP
SKU: 8714BC
Price: 1513.43 USD
Availability: InStock

WASP

PCN#

8714BC

MFG#

633809009341

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,513.43

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

4.3" LCD Display Screen
83.33 ft Print Length x 4.09" Print Width
14 in/s Mono
203 dpi
WPL, EPL, ZPL, ZPL II, DPL Emulation

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 35 lbs.

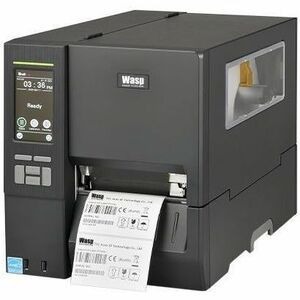

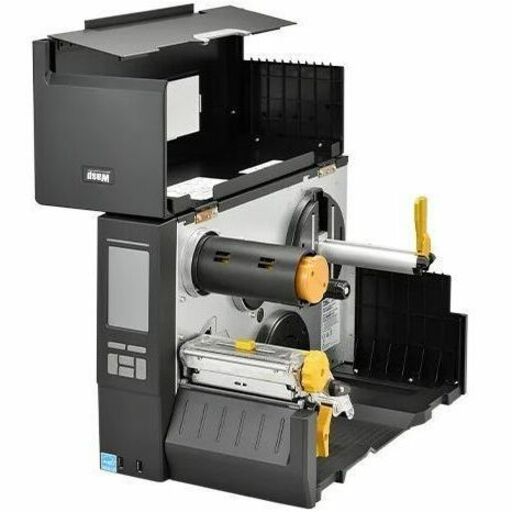

WPL614Plus Industrial Barcode Printer

Overview

Tech Specs

Specifications

Manufacturer	Wasp Barcode Technologies
Manufacturer Part Number	633809009341
Manufacturer Website Address	http://www.waspbarcode.com
Brand Name	Wasp
Product Model	WPL614Plus
Product Name	WPL614Plus Industrial Barcode Printer
Marketing Information	WPL614Plus Industrial Barcode Printer The Wasp WPL614Plus industrial barcode printer features a user-friendly design built for long-lasting durability in high-volume print applications. The rugged WPL614Plus boasts print speeds of up to 14 inches per second at 203 DPI resolution and a processor/memory supported by 256 MB of SDRAM, and 512 MB of Flash memory. Not only is the WPL614Plus heavy-duty, but its easy-to-use and configure as well due to its direct thermal and thermal transfer printing capabilities, a 6-button color LCD resistive touch screen, and our new premium print head technology which alerts users in advance of when a replacement is needed. The WPL614Plus includes ZPL, EPL, DPL and WPL emulation to ensure application compatibility and flexibility. The printer is capable of seamless connectivity as its supported by both Apple-certified MFi Bluetooth 5.0 or 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module that turns the barcode label printer into a connected network. The Wasp WPL614Plus includes a 2-year manufacturers warranty covering material defects.
Product Type	Direct Thermal/Thermal Transfer Printer

Technical Information

Recommended Use	Label Print
Print Color Capability	Monochrome
Maximum Mono Print Speed	14 in/s
Maximum Print Resolution (dpi)	203
Maximum Print Length	83.33 ft
Maximum Print Width	4.09"
Barcode Symbology Supported	1D Code 39 Code 93 Code 128 UCC Codabar Interleaved 2 of 5 EAN 128 UPC-A UPC-E EAN and UPC 2(5) Digits Add-On MSI Plessey POSTNET RSS Stacked GS1 DataBar Code 11 China Post 2D PDF-417 Maxi Code Data Matrix QR Code AZTEC
Application/Usage	Industrial Manufacturing Transportation & Logistic Warehouse Retail
Features	Rugged Durable Easy to Use
Mobile Device Printing	Yes
Wireless Print Technology	Apple MFi Certified
Number of Users	5
Connectivity Technology	Wired & Wireless
Fonts Included	8 alpha-numeric bitmap fonts Monotype Imaging true type font engine with one CG Triumvirate Bold Condensed scalable font
Duplex Printing	Yes
Print Technology	Direct Thermal /Thermal Transfer

Memory

Standard Memory	256 MB
Flash Memory	512 MB

Interfaces/Ports

USB	Yes
USB Standard	USB 2.0

Network & Communication

Ethernet	Yes
Ethernet Technology	Fast Ethernet
Bluetooth	Yes
Bluetooth Version	4.2 5.0
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11a/b/g/n/ac

Display & Graphics

Display Screen	Yes
Screen Size	4.3"
Display Screen Type	LCD
Touchscreen	Yes

Media Types & Handling

Media Type	Die-cut Label Black Mark Fanfold Notch Tag Perforated Paper
Media Sensor	Multi-position Transmissive/Gap Sensor Moveable Reflective/Black Mark Sensor Head Open Sensor Ribbon Encode Sensor

Fonts & Emulation

Language Emulation

WPL
EPL
ZPL
ZPL II
DPL

Power Description

Power Source	AC
Frequency	50 Hz 60 Hz

Environmental Conditions

Operating Temperature	32°F (0°C) - 104°F (40°C)
Storage Temperature	-40°F (-40°C) - 140°F (60°C)

Physical Characteristics

Form Factor	Desktop
Height	12.8"
Width	10.9"
Depth	19.8"
Weight (Approximate)	34.61 lb

Miscellaneous

Package Contents	WPL614Plus Industrial Barcode Printer Quick Start guide USB Cable Power Cord
Cables Included	RS-232 USB AC
Energy Star	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

2 Year
