Wasp WDI9600 USB Laser Barcode Scanner

by
WASP
PCN#
0370BD
MFG#
633809009013
$167.41
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Cable Connectivity
  • 400 scan/s
  • 57.87" Scan Distance

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 1 lbs.

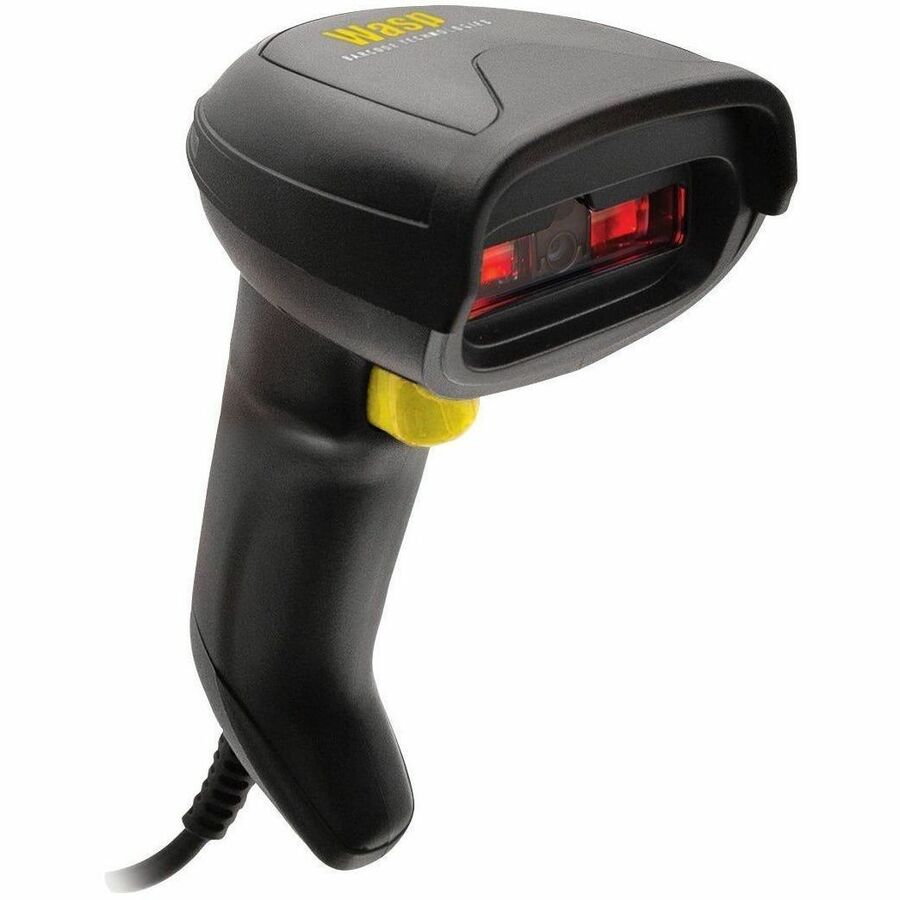

Wasp WDI9600 USB Laser Barcode Scanner
Tech Specs
Specifications

Manufacturer

Wasp Barcode Technologies

Manufacturer Part Number

633809009013

Manufacturer Website Address

http://www.waspbarcode.com

Brand Name

Wasp

Product Model

WDI9600

Product Name

WDI9600 USB Laser Barcode Scanner

Marketing Information

The new Wasp WDI9600USB Laser barcode scanneris a multipurpose linear imager designed to provide best-in-class reading performance with an exceptional depth of field.

The WDI9600's soft line viewfinder technology enables the operator to effortlessly read both high density and low-resolution barcodes, as well as hard-to-read, poor quality, and damaged barcodes without human intervention. The viewfinder technology enables operators to maximize productivity while reducing accidental reads in a multiple barcode environment. Adding to the WDI9600's versatility, barcodes can be scanned directly from mobile device screens or through plexiglass panels.

Ease of use is a hallmark of the WDI9600 which includes unique motionix technology that provides operators the flexibility to easily transition between handheld and stand-mounted operations. The scanner easily reads fast moving barcodes, including barcodes at awkward angles or in poorly lit or very bright lighting. The reader features a disinfectant-ready enclosure which can withstand harsh chemical cleaning. For added convenience, the WDI9600 can directly interface with USB-based solutions.

Benefits

  • Enhanced linear imaging technology for superior scanning and depth of field
  • Soft line viewfinder technology to easily target the barcode to be read
  • USB connectivity
  • Disinfectant-ready enclosure resistant to harsh chemical cleaning

Ideal For

  • Office and retail: point-of-sale
  • Commercial services including postal, banks, public administration, utilities
  • Light manufacturing, work-in-Progress, order processing
  • Healthcare, laboratories, pharmacies
  • Ticketing and entertainment

Product Type

Barcode Scanner Kit
Technical Information

Connectivity Technology

Cable

Scanning Capability

1D

Barcode Symbology Supported

1D/Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBarâ„¢ linear codes

Light Source

Laser

Image Sensor Type

CCD

Scan Rate

400 scan/s

Scan Mode

Trigger

Scanning Distance

57.87"

Features

  • Notification LED
  • Beep

Reading Angle (Skew)

65°

Reading Angle (Pitch)

65°

Reading Angle (Roll)

45°

Maximum Ambient Light

130000 lux

Drop Specification

Withstands repeated drops from 6.0 ft (1.8 m) onto a concrete surface.

Minimum Print Contrast

15%

Minimum Element Resolution (Code 39)

5 mil

Maximum Element Resolution (Code 39)

20 mil
Interfaces/Ports

Host Interface

USB
Power Description

Input Current

350 mA

Standby Current

60 mA
Environmental Conditions

Operating Temperature

32°F (0°C) to 122°F (50°C)

Storage Temperature

-40°F (-40°C) to 158°F (70°C)

Humidity (Non-condensing)

0% to 95%
Physical Characteristics

Form Factor

Handheld

Color Family

Dual Color

Product Color

  • Black
  • Yellow

Width

6.5"

Depth

2.7"

Length

4.3"

Weight (Approximate)

5.75 oz
Miscellaneous

Ingress Protection (IP) Rating

IP52

Application/Usage

  • Retail
  • Light/Clean Manufacturing
  • Healthcare
  • Laboratory
  • Pharmacy
  • Ticketing
  • Entertainment

Country of Origin

Vietnam
