Wasp WDI7500 2D Barcode Scanner

Name: Wasp WDI7500 2D Barcode Scanner
Brand: WASP
SKU: 0287BD
Price: 320.97 USD
Availability: InStock

WASP

PCN#

0287BD

MFG#

633809002830

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$320.97

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Cable Connectivity
33.40" Scan Distance
1D, 2D
LED
Imager
Omni
directional
USB
Black, Yellow
IP65
USB
Warehouse, Transportation, Logistics, Manufacturing, Healthcare, Hospitality, Entertainment

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 2 lbs.

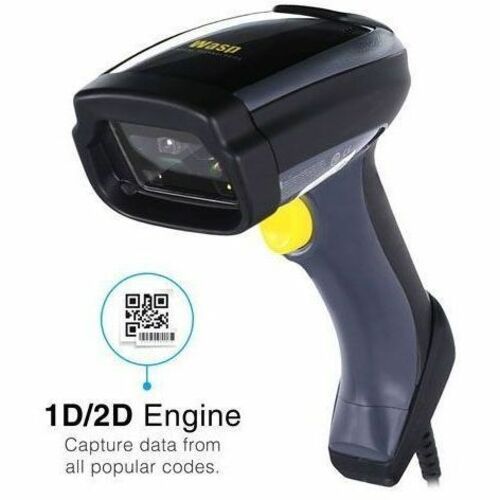

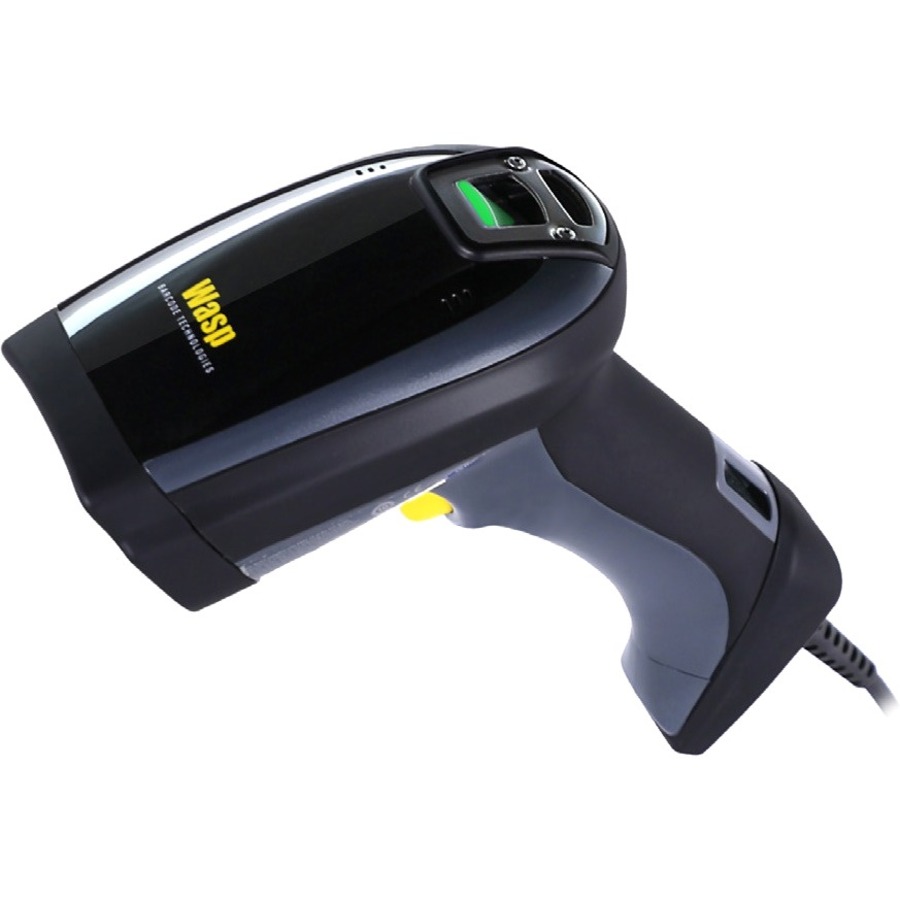

Wasp WDI7500 Industrial 2D Barcode Scanner w/USB cable

Overview

Tech Specs

Specifications

Manufacturer	Wasp Barcode Technologies
Manufacturer Part Number	633809002830
Manufacturer Website Address	http://www.waspbarcode.com
Brand Name	Wasp
Product Model	WDI7500
Product Name	WDI7500 Industrial 2D Barcode Scanner w/USB cable
Marketing Information	Wasp WDI7500 2D Barcode Scanner The Wasp WDI7500 industrial 2D barcode scanner is built for the harshest and most demanding applications in warehousing, transportation and logistics, and manufacturing industries. This 2D USB barcode scanner is a preferred corded scanner because of its omnidirectional reading capability which provides accurate scanning of both types of barcode, whether 1D or 2D barcodes from printed labels or mobile devices, regardless of the orientation, from contact to over 3.3 ft. depending on the barcode resolution. It also includes a four dot aiming system that provides quick and accurate scans to increase efficiency and ensure error free scanning, making it an ideal desktop barcode scanner or QR code scanner in decent ambient light. Innovative, rugged and ergonomic, the Wasp WDI7500 industrial 2D barcode scanner is designed to provide a comfortable data collection for the user and a reliable operation in the long term. This ultra-rugged scanner operates in a wide range of temperatures, has a water and particulate sealing rating of IP65 and maintain its reliability even when subjected to repeated 6.6 ft. drops on concrete if it's not plugged into a USB port. The Wasp WDI7500 industrial USB barcode scanner incorporates advanced features to excel in the most demanding environments: œLiquid lens that adapts and focus at different distances; this provides a versatile optic that is able to fulfill any scanning need with a single corded scanner. It also features 3 Green Light technology for visual good-read feedback and loud beeper for audio good-read feedback. The WDI7500 industrial 2D barcode scanner includes a 2-year manufacturers warranty covering material defects. If you would like to upgrade this coverage, WaspProtect extended service plans cover accidental breakage and can provide coverage beyond the original warranty.
Product Type	Barcode Scanner

Technical Information

Connectivity Technology	Cable
Scanning Capability	1D 2D
Barcode Symbology Supported	GS1 DataBar linear codes Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Australian Post China Post IMB Japanese Post KIX Post Planet Code Portuguese Post Postnet Royal Mail Code (RM4SCC) Swedish Post EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites
Light Source	LED
Image Sensor Type	Imager
Scan Mode	Trigger
Scan Pattern	Omni-directional
Scanning Distance	33.40"
Features	Scan Button Beep 3GL Notification LED Ergonomic Design
Cable Type Included	USB
Reading Angle (Skew)	40°
Reading Angle (Pitch)	40°
Reading Angle (Roll)	360°
Maximum Ambient Light	100000 lux
Drop Specification	6.6 ft. (2.0 m)
Minimum Print Contrast	15%
Minimum Element Resolution (DataMatrix)	7.5 mil
Maximum Element Resolution (DataMatrix)	10 mil
Minimum Element Resolution (PDF417)	10 mil
Image Sensor Resolution	864 x 544
Illumination Type	LED
Illumination Color	White

Interfaces/Ports

Host Interface

USB

Power Description

Standby Current

180 mA

Environmental Conditions

Operating Temperature	-4°F (-20°C) to 122°F (50°C)
Storage Temperature	-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing)	0% to 95%

Physical Characteristics

Form Factor	Handheld
Rugged	Yes
Color Family	Dual Color
Product Color	Black Yellow
Durability	Drop Resistant Water Resistant Dust Resistant
Weight (Approximate)	11.60 oz

Miscellaneous

Package Contents	WDI7500 2D Barcode Scanner 6' USB cable Scanner programming guide 2-year warranty (Optional WaspProtect warranty available)
Ingress Protection (IP) Rating	IP65
Application/Usage	Warehouse Transportation Logistics Manufacturing Healthcare Hospitality Entertainment
Country of Origin	Slovakia
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty

2 Year
