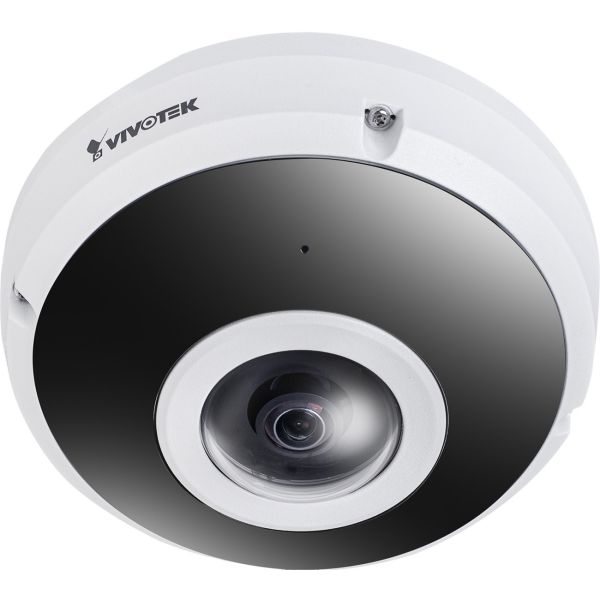

FISHEYE NETWORK CAMERA, 6MP, H.265, 20M IR, WDR PRO, IP66, IK10, NEMA 4X

Name: FISHEYE NETWORK CAMERA, 6MP, H.265, 20M IR, WDR PRO, IP66, IK10, NEMA 4X
Brand: VIVOTEK USA INC.
SKU: 4767AZ
Price: 675.38 USD
Availability: InStock

VIVOTEK USA INC.

PCN#

4767AZ

MFG#

FE9382-EHV-V2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$675.38

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

65.62 ft
H.265, H.264, MJPEG
2048 x 2048
1.25 mm Fixed Lens
30 fps
CMOS
Ceiling Mount, Wall Mount
Water Resistant, Dust Resistant, Weather Proof, Vandal Proof

Product Condition: New and Factory Fresh

Limited Warranty36 Month

Shipping Weight: 2 lbs.

Vivotek FE9382-EHV-V2 6 Megapixel HD Network Camera - Fisheye

Overview

Tech Specs

Specifications

Manufacturer	Vivotek, Inc
Manufacturer Part Number	FE9382-EHV-V2
Manufacturer Website Address	http://www.vivotek.com
Brand Name	Vivotek
Product Series	S
Product Model	FE9382-EHV-V2
Product Name	FE9382-EHV-v2 Fisheye Network Camera
Marketing Information	The new 6-Megapixel FE9382-EHV-v2 is the latest update to an already stellar VIVOTEK 360° fisheye product line. The FE9382-EHV-v2 is a true day/night camera, with a removable IR-cut filter and 360° IR illumination up to 20 meters radius with Smart IR II technology. It supports up to 30fps at full 6MP resolution as well as WDR Pro 120dB to maintain excellent image quality in high contrast lighting environments. These features greatly enable the FE9382-EHV-v2 to provide clear images 24 hours a day. To meet the demands of any harsh outdoor application, the FE9382-EHV-v2 is also armed with an IP66-rated housing for protection from rain and dust, as well as IK10-rated for robust protection against acts of vandalism. With added NEMA 4X protection, even more extreme offshore applications will not be an issue. Lastly the FE9382-EHV-v2 comes fully equipped with VIVOTEK's Smart VCA (Video Content Analysis). With AI based deep-learning and Smart Motion Detection, Smart VCA will enable users to quickly and accurately detect event triggers such as line crossing and missing objects alerts. This suite of analytic functions is only available on our SUPREME line of products.
Product Type	Network Camera

Technical Information

Recording Formats	HD
HD Recording	Yes
Night Vision Distance	65.62 ft
Number of IR LEDs	4

Display & Graphics

Image Sensor Type	CMOS
Color Supported	Color
Field of View	180°
Effective Camera Resolution	6 Megapixel

Video

Video Formats	H.265 H.264 MJPEG
Maximum Video Resolution	2048 x 2048
Maximum Frame Rate	30 fps

Lens

Lens Type	Fixed
Maximum Focal Length	1.25 mm
Lens Included	Yes
Maximum Aperture	f/1.6

Exposure

Shortest Shutter Speed	1/32000 Second
Longest Shutter Speed	1/5 Second

Network & Communication

Connectivity Technology	Wired
Remote Management	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Power Description

Input Voltage

12 V DC

Physical Characteristics

Mount Type	Ceiling Mount Wall Mount
Form Factor	Fisheye
Durability	Water Resistant Dust Resistant Weather Proof Vandal Proof
Diameter	5.9"
Weight (Approximate)	1.55 lb

Environmental Conditions

Minimum Operating Temperature	-40°F (-40°C)
Maximum Operating Temperature	140°F (60°C)
Maximum Operating Humidity	90%

Miscellaneous

Features	Wide Dynamic Range Motion Detection Built-in Microphone Day/Night ePTZ 3D Digital Noise Reduction Automatic White Balance Highlight Compensation (HLC) Back Light Compensation (BLC) Auto Gain Control Password Protection Audio Detection Active Tampering Alarm SD Card Local Storage Shock Detection
Indoor/Outdoor	Outdoor
Package Contents	FE9382-EHV-v2 Fisheye Network Camera Quick installation guide alignment sticker screw pack desiccant bag
Impact Protection Rating	IK10
Ingress Protection Rating	IP66
Country of Origin	Taiwan

Warranty

Limited Warranty

36 Month
