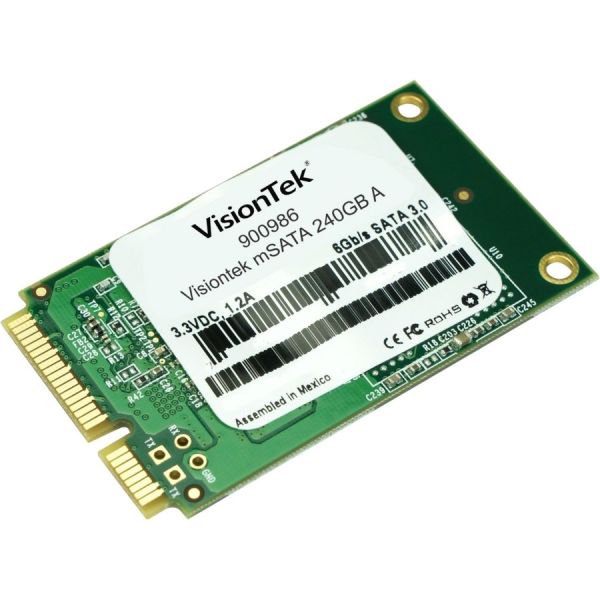

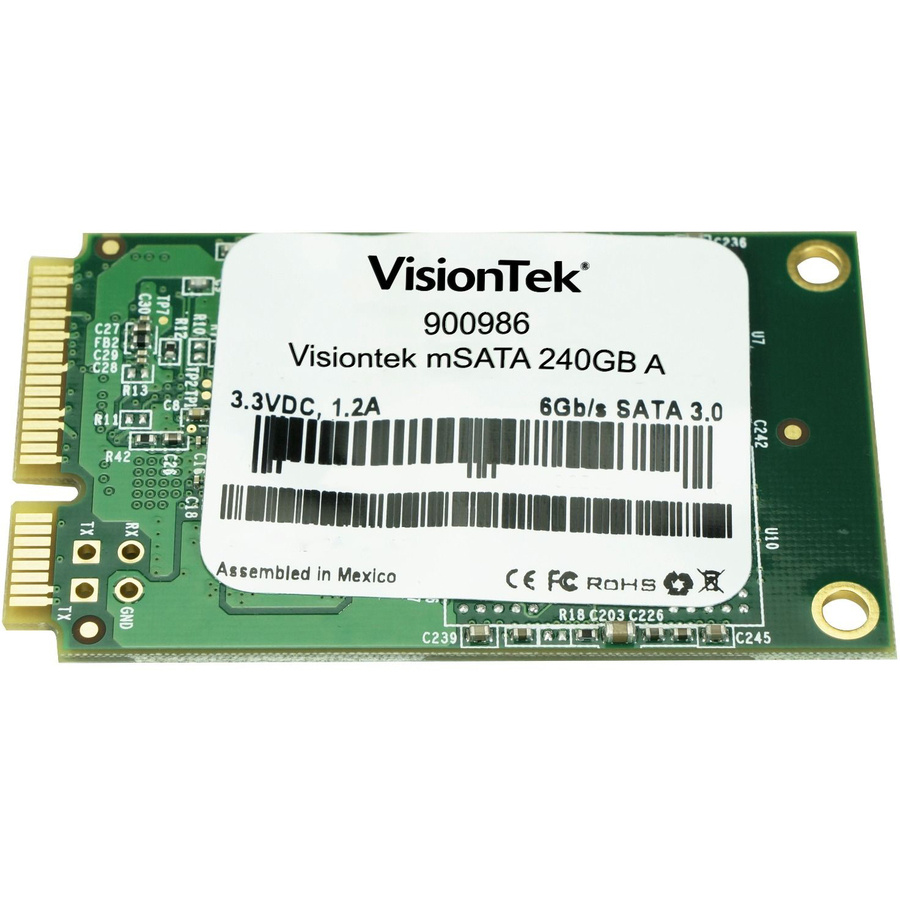

VisionTek 240GB 3D MLC mSATA SSD

by
VISIONTEK
PCN#
8X9217
MFG#
900986
$60.56
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 550 MB/s Maximum Read Transfer Rate
  • 445 MB/s Maximum Write Transfer Rate
Product Condition: New and Factory Fresh
Shipping Weight: 1 lbs.
VisionTek 240GB 3D MLC mSATA SSD
Tech Specs
Specifications

Manufacturer

VisionTek Products, LLC

Manufacturer Part Number

900986

Manufacturer Website Address

http://www.visiontek.com

Brand Name

VisionTek

Product Name

240GB 3D MLC mSATA SSD

Marketing Information

When your definition of high-performance means both massive storage and reliability, this SSD is the answer.

Engineered for long-term real-world use, you'll experience speeds up to 550MB/s read and 445MB/s write, up to 100x greater data reliability than a costly Enterprise class HDD, and access times up to 50x faster than a conventional HDD. It's SATA 6G ready, but backward compatible with SATA 3G and 1.5G machines too making this SSD the upgrade solution for everything from a desktop workhorse to the latest ultra-thin laptop.

This SSD drive is perfect for:

  • Power Users
  • Home Offices
  • Gamers
  • Digital Photographers
  • Creative Professionals

Designed for Real World Use
Because it features a Silicon Motion Controller and tier one high-performance NAND flash, the 3D MLC mSATA SSDs are designed to deliver top speeds with the files you utilize daily...videos, mp3s, graphics files, and zip files. While these files are compressed, the SSD controller doesn't slow down while processing them like other controllers do.

Fits Select Portable Computers
Whether you have a rugged full-sized laptop or travel light with an Ultrabook, the SSD will fit your MSATA compatible machine. Ultrabooks and performance laptops can benefit from the increased storage and speeds.

FEATURES

High-reliability 3D MLC NAND flash
DataRefresh technology ensures data integrity
Global wear-leveling evens program and erase counts across blocks to extend drive endurance
SATA 3.0 (6Gb/s) interface (backwards compatible with SATA 2.0 (3Gb/s) and SATA 1.0 (1.5Gb/s))
Supports Secure Erase
TRIM support (OS/driver support required)
S.M.A.R.T. support
Built-in BCH ECC (Up to 66 bits correctable per 1024 bytes)
Temperature sensor
RoHS, FCC, CE
Power Consumption (Idle): 0.035W
Power Consumption (Active): 2W
Operating Temperature 0°C-70°C
Storage Temperature -40°C-85°C
Max Shock Resistance 1500G

Product Type

Solid State Drive Cartridge
Technical Information

Storage Capacity

240 GB
Drive Performance

Maximum Read Transfer Rate

550 MB/s

Maximum Write Transfer Rate

445 MB/s
Interfaces/Ports

Drive Interface

SATA

Drive Interface Standard

SATA/600
Physical Characteristics

Drive Type

Internal

Form Factor

mSATA
Miscellaneous

Device Supported

  • Ultrabook
  • Notebook
  • Desktop PC

Environmentally Friendly

Yes
