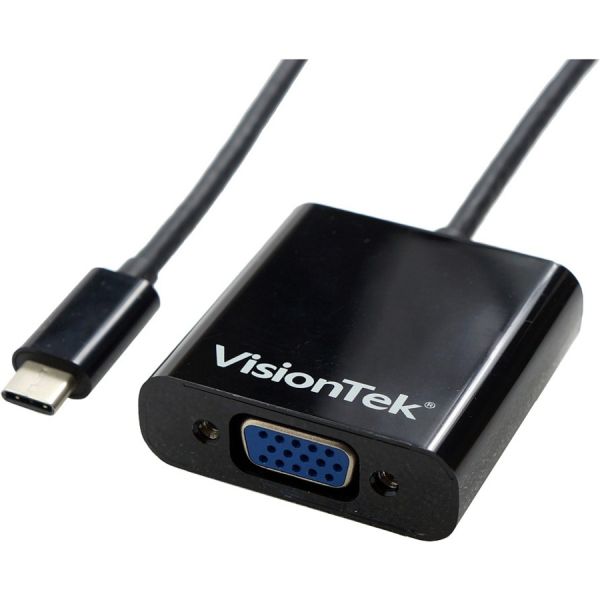

VisionTek USB-C to VGA Active Adapter(M/F)

by
VISIONTEK
PCN#
1X5170
MFG#
900818
$22.52
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • USB Type C to VGA Adapter
  • USB
  • C to VGA Adapter Male to Female 5 Inch 1080p (1920x1080) 60 Hz Thunderbolt 3 TB3 Compatible for Mac Windows Chromebook
Product Condition: New and Factory Fresh
Limited Warranty1 Year
Shipping Weight: 1 lbs.
VisionTek USB-C to VGA Active Adapter(M/F)
Tech Specs
Specifications

Manufacturer

VisionTek Products, LLC

Manufacturer Part Number

900818

Manufacturer Website Address

http://www.visiontek.com

Brand Name

VisionTek

Product Name

USB-C to VGA Active Adapter(M/F)

Marketing Information

The VisionTek USB 3.1 Type-C to VGA Adapter lets you connect your Mac, PC or laptop with DisplayPort over USB-C port to a VGA monitor, TV or projector. This adapter is also compatible with all systems that have a Thunderbolt 3 port. You can run mirrored or extended desktop display configurations at resolutions up to 1080p FHD (1920 x 1080 @32-bit color) at 60Hz. Simply connect the adapter to the USB-C port on your Macbook, PC or laptop to your VGA display. Plug and play operation - no software drivers to install. Perfect for projectors and TVs that have a DP connection. VGA cable required (not included).

Requires USB-C port which supports "DisplayPort Alternate Mode" (not all USB-C ports/systems support Alternate Mode functionality) or Thunderbolt 3 port. Plug and Play installation on any Windows, Mac or Linux host which supports DisplayPort Alternate Mode (Alt Mode) video output functionality.

Most current phones and tablets with USB-C ports do not support Alt Mode video output.

Compatible systems include USB-C or Thunderbolt 3 equipped MacBook Pro 2019/2018/2017, MacBook Air 2018, Microsoft Surface, Microsoft Surface Go, Dell, Lenovo or HP laptops.

Key Features

  • Supports resolutions of up to1080p FHD (1920 x 1080 @32-bit color @ 60Hz).
  • Portable Design: Bus powered, does not require a power adapter.
  • Does not transmit audio signal.
  • No drivers required.
  • OS Support: Windows 10, 8.1, 8, 7, Linux, Mac OSX.
  • One Year Warranty.

Product Type

Video Adapter
Technical Information

Adapter Type

USB-C/VGA

Connector Type on First End

USB 3.1 Type C - Male

Connector on First End Details

USB 3.1 Type C Male

Connector Type on Second End

HD-15 - Female

Connector on Second End Details

15-pin HD-15 VGA Female

Maximum Resolution Supported

1920 x 1080

Features

  • Active
  • Plug and Play
Physical Characteristics

Weight (Approximate)

7.20 oz
Miscellaneous

Country of Origin

China
Warranty

Limited Warranty

1 Year
