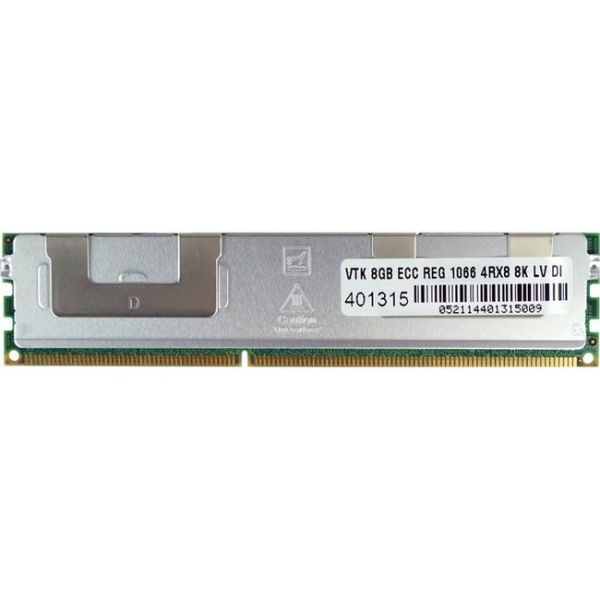

VisionTek 8GB DDR3L 1066 MHz (PC3-8500) Registered 4RX4 8K Low Voltage RDIMM

Name: VisionTek 8GB DDR3L 1066 MHz (PC3-8500) Registered 4RX4 8K Low Voltage RDIMM
Brand: VISIONTEK
SKU: 1F7748
Price: 145.89 USD
Availability: InStock

VISIONTEK

PCN#

1F7748

MFG#

900713

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$145.89

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 GB (1 x 8 GB)
DDR3 SDRAM
1066 MHz DDR3
1066/PC3
8500
1.35 V
ECC
Registered
240
pin
DIMM

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

VisionTek 8GB DDR3L 1066 MHz (PC3-8500) Registered 4RX4 8K Low Voltage RDIMM

Overview

Tech Specs

Specifications

Manufacturer	VisionTek Products, LLC
Manufacturer Part Number	900713
Manufacturer Website Address	http://www.visiontek.com
Brand Name	VisionTek
Product Name	8GB DDR3 SDRAM Memory Module
Marketing Information	The Simple Performance Equation: More Memory = A Faster Computer The VisionTek 1 x 8GB PC3-8500 DDR3 ECC Registered 8K 1066MHz Low Voltage RDIMM Memory Module is a Quad Rank Registered DDR3 SDRAM DIMM module. This module is JEDEC MO-269 R/C H DDR3 SDRAM Registered DIMM. The module has all the addresses and control signals buffered to reduce capacitive loading. The module utilizes a phase lock loop to reduce the capacitive loading on the clock signals and to synchronize all SDRAM input clocks with the system clock. A 256 byte Temp Sensor serial EEPROM on board can be used to store module information such as timing, configuration, density, etc. as well as to monitor the module temperature and prevent the module from exceeding the maximum operating temperature. The VisionTek 900713 memory module is 8GByte and organized as 1GX72 ECC Quad Rank array using (36) 256MX8 DDR3 SDRAMs in lead-free FBGA packages. The module PCB is fabricated using the latest technology design, twelve-layer printed circuit board substrate construction with low ESR decoupling capacitors on-board for high reliability and low noise. Maxing out your memory is the most cost-effective, easy DIY install solution to dramatically speeding up file transfers, app launches, and many other memory intensive tasks. Every VisionTek memory module is test certified to the JEDEC standard for assured speed and reliability. For peace of mind ownership, the upgrade comes backed by our Limited Lifetime warranty.
Product Type	RAM Module

Technical Information

Memory Size	8 GB
Memory Technology	DDR3 SDRAM
Memory Voltage	1.35 V
Number of Modules	1 x 8GB
Memory Speed	1066 MHz
Memory Standard	DDR3-1066/PC3-8500
Error Checking	ECC
Signal Processing	Registered
CAS Latency	CL7

Physical Characteristics

Number of Pins	240-pin
Form Factor	DIMM

Miscellaneous

Environmentally Friendly

Yes

Warranty

Limited Warranty

Lifetime
