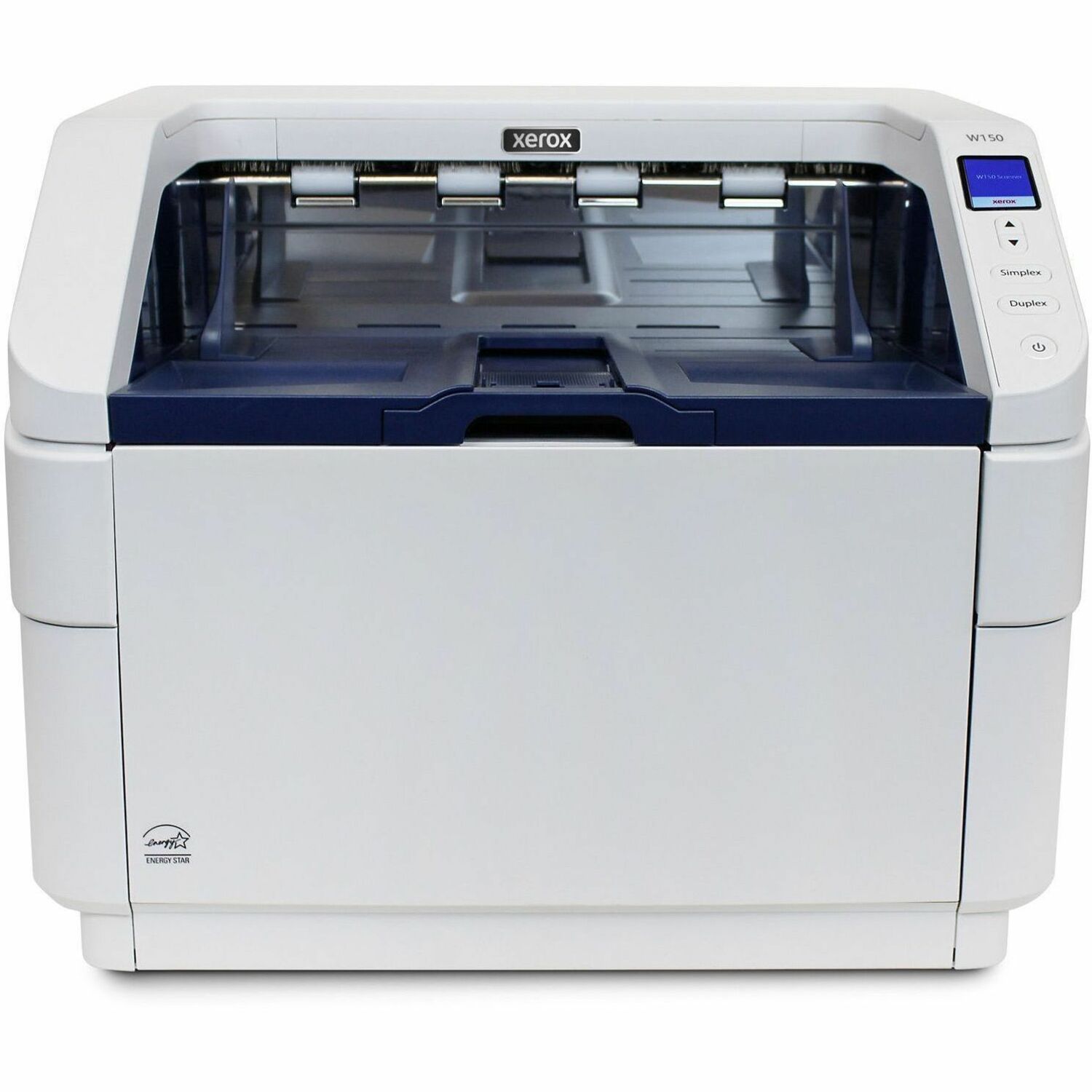

XEROX W150N DOCUMENT SCANNER 150PPM 300 IPM COLOR DUPLEX

PRICE-PERFORMANCE PACKAGEThe Xerox® W150 Scanner with network connectivity and included imprinter continues to deliver price-performance leadership in the production scanning space. The W150 Scanner offers even higher speeds than its predecessor, at up to 150 ppm / 300 ipm. A current-state hardware platform provides a daily duty cycle of 120,000 pages per day and handles documents ranging from hard cards to A3 paper, even long documents up to 236 inches (5994 mm). An adjustable, motorized 500-sheet input tray feeds jobs through a u-turn paper path or for thicker stock and cards, a straight paper path is also provided. A high-resolution color LCD makes it easy for operators to change scan and workflow settings. PRODUCTIVITY IS A PLATFORMXerox® W150 Scanner is built for productivity. Award-winning "reversing rollers" technology and a multiple-motor paper path keep misfeeds to a minimum. Three ultrasonic sensors provide double-feed detection (DFD) functionality across incoming pages, and staple detection is built-in. On the software side, the W150 is equipped with the Visioneer® Intelligent Software Platform, including Visioneer® OneTouch, Capture SE, and Organizer AI. Up to 20 customizable OneTouch workflows are presented on the LED display to get jobs started at the touch of a button. An exceptional OCR solution rounds out the software offering. QUALITY IMAGES AT FULL SPEEDDocuments going to the cloud and OCR applications require precise, flexible image quality controls. The W150 achieves this with a dual-lamp LED lightbar to provide consistent, bright light across the page. Visioneer Acuity Intelligent Image Processing provides more than 25 imaging features, configured through the accessible TWAIN™ DriverPLUS user interface, and built into OneTouch and Capture SE applications. The W150 Scanner delivers full-rated speeds by removing bottlenecks end-to-end. Visioneer Acuity handles 7 image-processing tasks in hardware, USB 3.1 Gen 1 provides a fast pipeline to the PC, and the proprietary Acuity PC optimization finishes the scan on the PC by using available CPU cores and main memory. CONNECTIVITY AND FLEXIBILITYMultiple users can connect with the thin scanning-capable Xerox® W150 Scanner, thanks to Visioneer VAST Network© technology with TWAIN Direct®. And the Xerox® W150 comes standard with imprinter technology to add characters, date/ time and other tags to scans. The Xerox® DocuMate® 4700 A3 flatbed can be easily tethered to the W150 Scanner for special documents. Finally, our Proprietary Parallel Scanning technology allows multiple W150 scanners to scan concurrently to a single PC, fundamentally changing the economics of ultra-high-speed production capture.Product TypeADF ScannerTechnical InformationImage Sensor TypeDual CCDOptical Resolution (dpi)1200Scan Color

• Color
• Monochrome
• Grayscale

Color Depth24-bitGrayscale Depth8-bitMaximum Mono Scan Speed (ppm)150Maximum Color Scan Speed (ppm)150Maximum Mono Scan Speed (ipm)300Maximum Color Scan Speed (ipm)300Scanning ModesDuplexADF Capacity500 SheetsMaximum Media Thickness50 milDuty Cycle120000Duplex ScanningYesLight SourceLEDInterfaces/PortsUSBYesUSB StandardUSB 3.1SoftwareOperating System Supported

• Windows 11
• Windows 10
• Windows 7

Power DescriptionInput Voltage

• 120 V AC
• 230 V AC

Input Frequency

• 50 Hz
• 60 Hz

Physical CharacteristicsHeight14.3"Width18.1"Depth17.6"Weight (Approximate)50 lbMiscellaneousPackage Contents

• W150 Scanner
• Power Cable
• USB 3.0 Cable
• Ethernet Cable
• Quick Installation Guide
• Technical Support Card

Energy StarYesTAA CompliantYesEnvironmentally FriendlyYesEnvironmental CertificationElectronic Product Environmental Assessment Tool (EPEAT)
