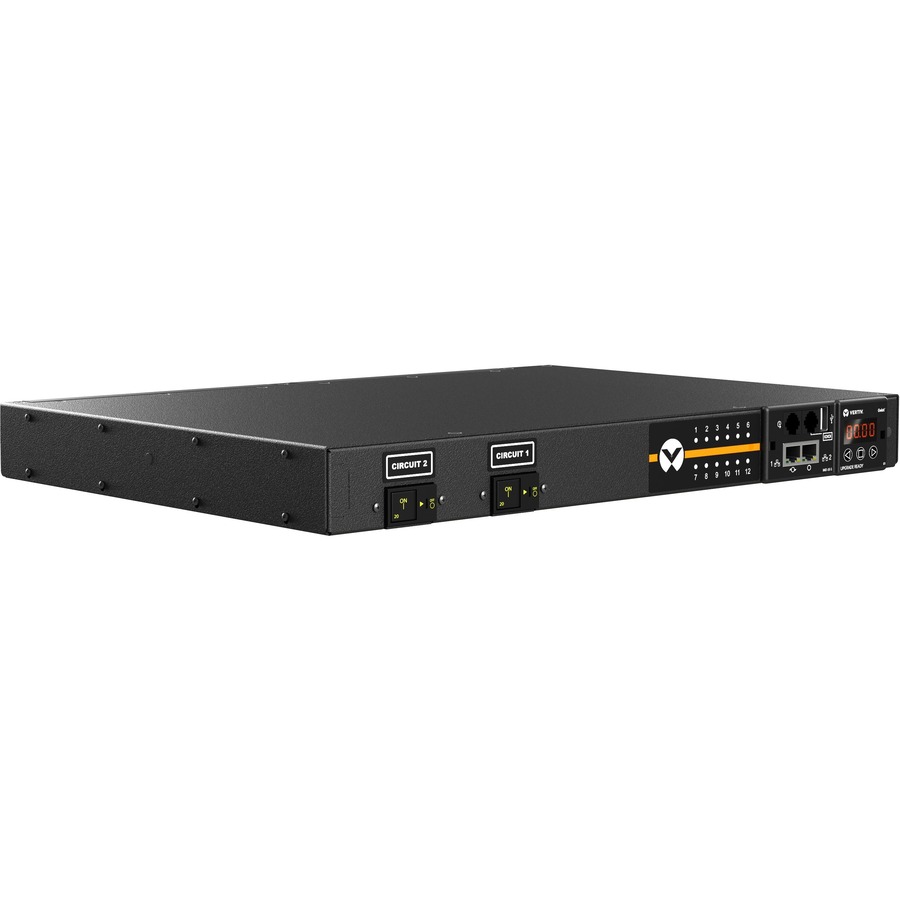

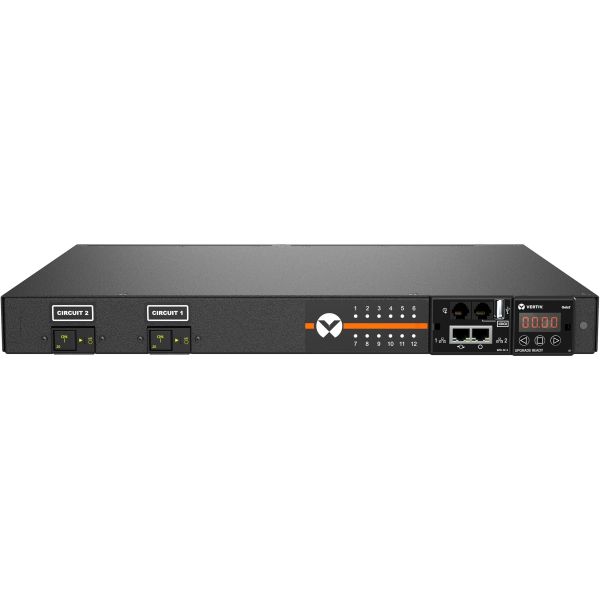

Vertiv Geist Switched Rack PDU - 1U Rack| 30A| C13/C19| L6-30P| Horizontal PDU

The Vertiv Geist Switched Rack PDU VP53100 is a 30A, 208V 1U horizontal rack power distribution unit (PDU) with input power monitoring and outlet level switching. The VP53100 features 12 Combination Outlet C13 / C19receptacles and a NEMA L6-30P plug with a 10ft cord providing 4.9kW in power capacity. This Switched rPDU allows you to turn off receptacles to avoid accidental overloads and power cycle equipment remotely to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD) displays current on the local LED display. It also supports Visible Light Communication (VLC) technology so you can view complete power usage data from a mobile device with the Vertiv rPDU Scanner application. The IMD includes ports for serial communication and environmental monitoring, and dual ethernet ports. Simplify management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. All Vertiv Geist Switched PDUs are UL-Listed, meeting an important requirement for data centers, and each unit undergoes individual testing for functionality to ensure your network is powered by a reliable power distribution unit.

• DHCP
• HTTP
• HTTPS
• IPv4
• IPv6
• LDAP
• NTP
• RADIUS
• RSTP
• SSH
• SMTP
• Syslog
• TACACS+

• v1
• v2c
• v3

• Cabinet-mountable
• Rack-mountable

• rPDU 12-Outlets PDU
• 12ft / 3.6m Cable

• UL
• c-UL Listed 60950
• IP67
