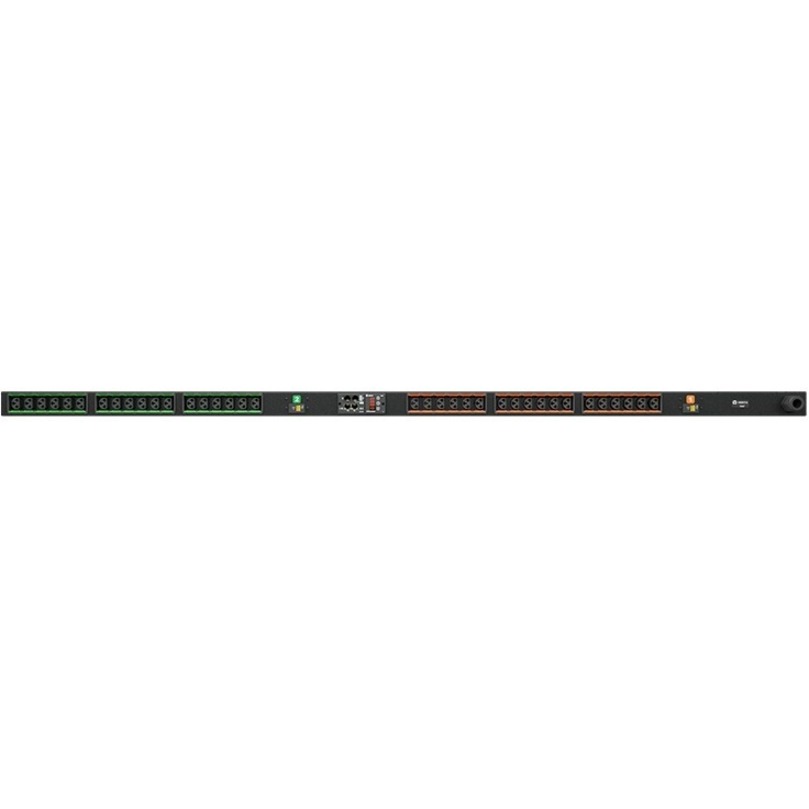

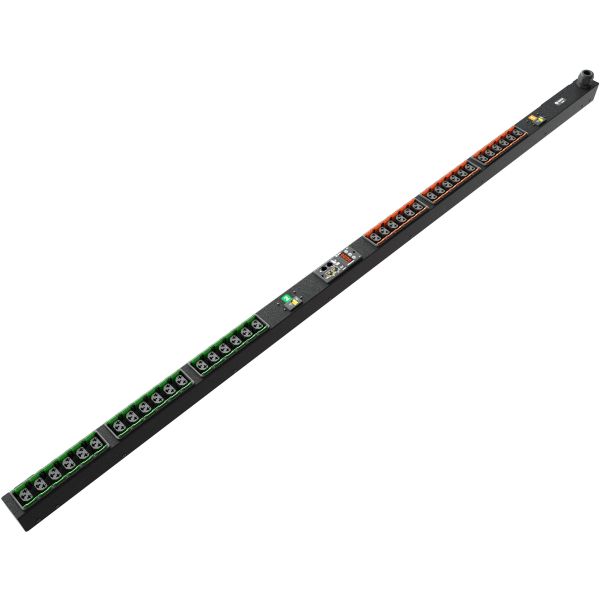

Vertiv Geist Rack PDU - Combination Outlet| C13 / C19| 30A| 208V (VP43301)

Name: Vertiv Geist Rack PDU - Combination Outlet| C13 / C19| 30A| 208V (VP43301)
Brand: VERTIV
SKU: 7RA918
Price: 851.01 USD
Availability: InStock

VERTIV

PCN#

7RA918

MFG#

VP43301

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$851.01

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

36 Hybrid Outlets C13 / C19| For C14 and C20 plugs| 30A| 208V| 4.9kW| L6
30P| 0U Rack Power Distribution Unit

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 16 lbs.

Vertiv Geist Rack PDU - Combination Outlet| C13 / C19| 30A| 208V (VP43301)

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	VP43301
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	VERTIV
Product Series	N
Product Name	GU NI30684 PDU

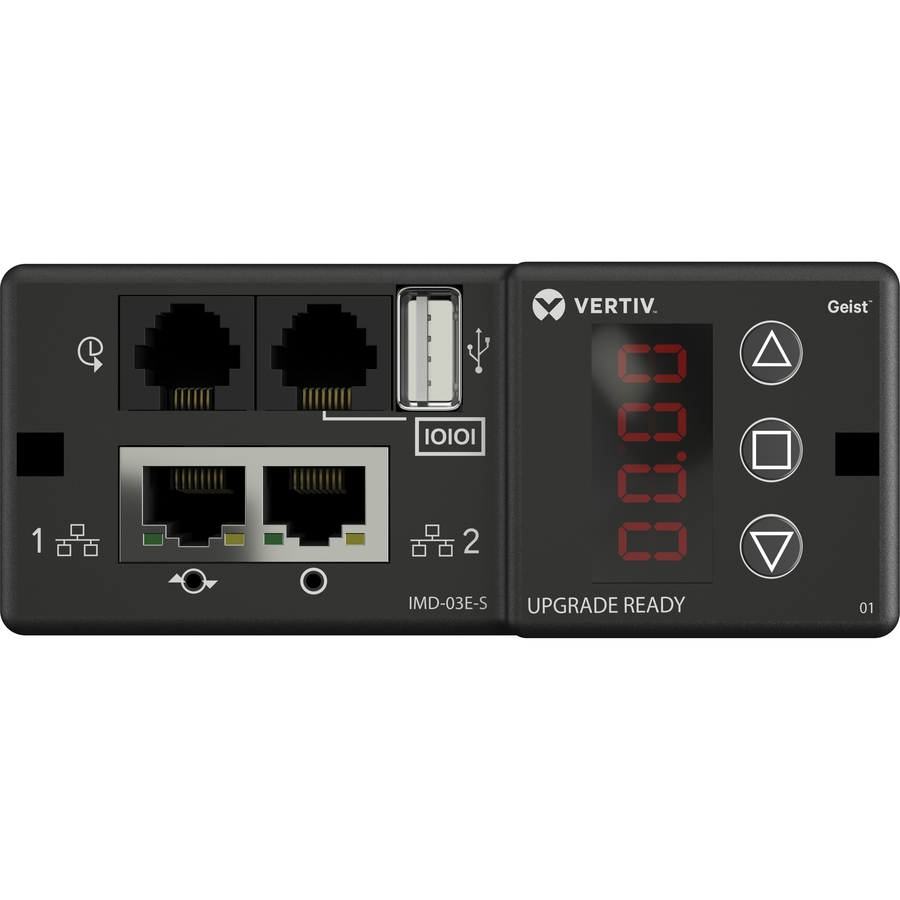

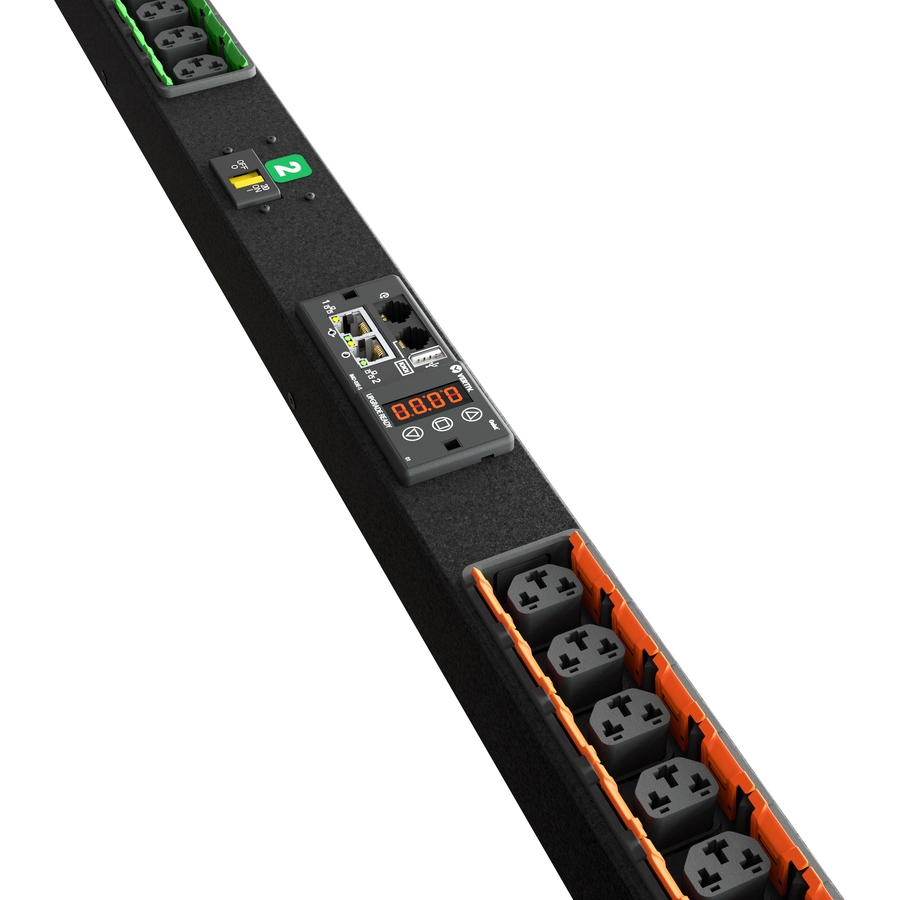

Marketing Information	The Vertiv Geist NI30684 rPDU is a versatile rack power distribution unit featuring 36 Combination C13/C19 Outlets. The NI30684 is a 30A, 208V single phase upgradeable rack PDU with an L6-30P plug and 10ft power cord. The NI30684 provides unit level remote power monitoring and environmental monitoring capabilities with the addition of optional environmental sensors. Remotely monitor and manage the rPDU through any web browser or via serial communication. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of costly downtime from accidental disconnections of the power cord and are also P-Lock compatible. The hot-swappable IMD provides peace of mind that as business needs change the technology can easily be updated.
Product Type	PDU

Technical Information

PDU Type	Monitored
Phase	Single Phase
Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Protection Type	Overcurrent Protection

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	240 V AC
Output Voltage Range	200 V AC - 240 V AC
Power Rating (Watt)	4900 W
Input Current	30 A

Management

Management	DHCP HTTP HTTPS IPv4 IPv6 LDAP NTP RADIUS RSTP SSH SMTP SNMP (v1/v2c/v3) Syslog TACACS+
Remote Outlet Switching	No

Interfaces/Ports

Serial Port	Yes
Modem (RJ-11)	No
Modem (RJ-12)	Yes
Network (RJ-45)	Yes
USB	Yes

Physical Characteristics

Product Color	Black
Mounting Orientation	Vertical
Mount Type	Rack-mountable Cabinet-mountable
Rack Height	0U
Number of Cord/Cable	1
Cord Length	10 ft
Height	66.3"
Width	2"
Depth	2"
Length	2"
Weight (Approximate)	16 lb

Miscellaneous

Certifications & Standards	UL & c-UL Listed 60950 FCC Part 15 Class A Conformance
Energy Star	No
Environmentally Friendly	Yes
Country of Origin	United States
TAA Compliant	Yes

Warranty

Limited Warranty

5 Year
