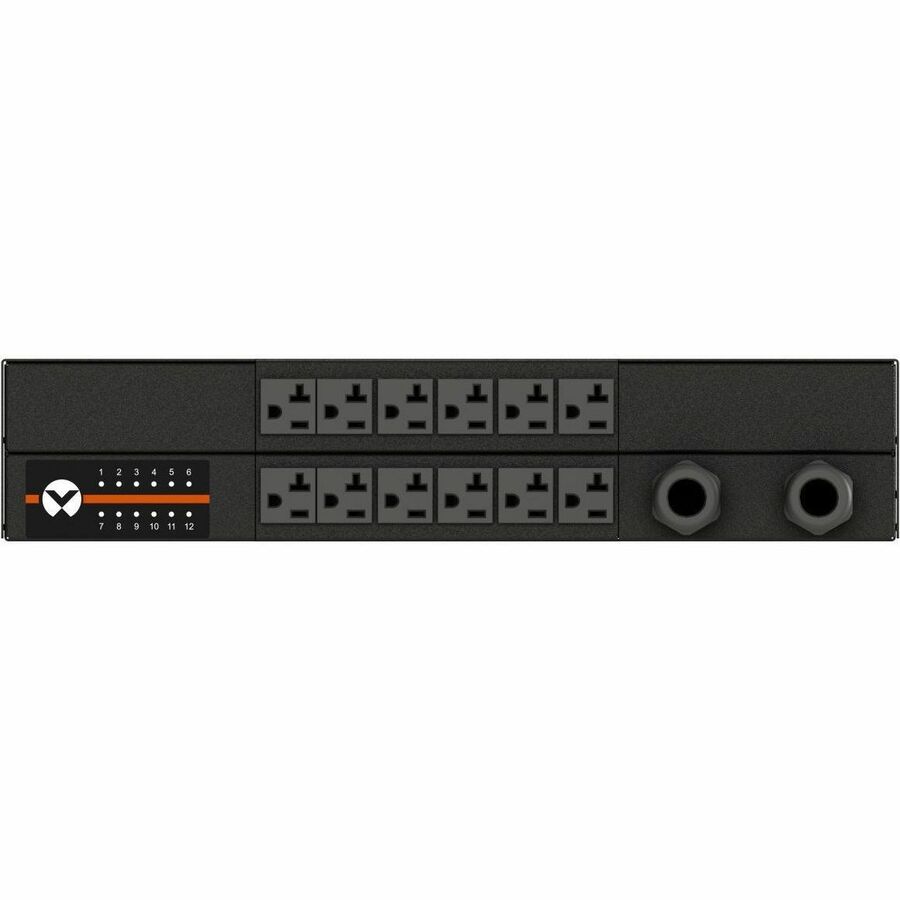

RPDU RACK TRANSFER SWITCHMONITORED OUTLET LEVEL 30A 12

Name: RPDU RACK TRANSFER SWITCHMONITORED OUTLET LEVEL 30A 12
Brand: VERTIV
SKU: HT3538
Price: 1850.45 USD
Availability: InStock

VERTIV

PCN#

HT3538

MFG#

VA6N3200

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,850.45

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

Switched Outlet Monitored
NEMA L5
30P
12 x NEMA 5
20R
120 V AC
Overcurrent Protection, Single Pole, Circuit Breaker
Network (RJ
45)
10 ft Cord Length
Horizontal
Rack
mountable
Horizontal

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years.

Shipping Weight: 12 lbs.

Geist rPDU ANR3E2R6-12S203-3TL5TL5A011-D 12-Outlets PDU

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	VA6N3200
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Geist
Product Series	rPDU
Product Model	ANR3E2R6-12S203-3TL5TL5A011-D
Product Name	rPDU ANR3E2R6-12S203-3TL5TL5A011-D 12-Outlets PDU
Marketing Information	Rack Transfer Switch (RTS) delivers redundant power to single corded devices. The RTS automatically detects the loss of power and switches the power load (no phase-syncronization required) to the alternative power source in less than 4-8 milliseconds without the need for human intervention. Benefits Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime. Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime. Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs. Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices. Standard three-year warranty, upgraded to a five-year warranty with product registration.
Product Type	PDU

Technical Information

PDU Type	Switched Outlet Monitored
Plug/Connector Type	NEMA L5-30P
Plug/Connector Detail	2 x NEMA L5-30P
Receptacle Type	NEMA 5-20R
Receptacle Detail	12 x NEMA 5-20R
Protection Type	Overcurrent Protection Single Pole Circuit Breaker
Features	LED Display

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 120 V AC
Output Voltage	120 V AC
Power Rating (Watt)	2800 W
Input Current	30 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	DHCP HTTP HTTPS IPv4 IPv6 LDAP NTP RADIUS RSTP SSH SMTP SNMP (v1/v2c/v3) Syslog TACACS+ Modbus TCP CSV datalog JSON API JSON datalog
Remote Outlet Switching	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family	Other
Product Color	Black Powder Coat
Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Form Factor	Horizontal
Cord Length	10 ft
Height	3.4"
Width	17"
Depth	18"

Environmental Conditions

Maximum Operating Temperature

140°F (60°C)

Miscellaneous

Certifications & Standards	FCC Part 15 Class A UL & c-UL Listed 62368-1
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years.
