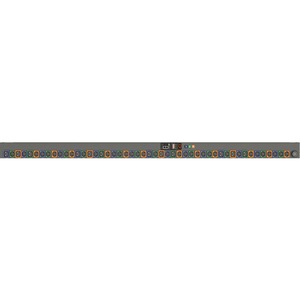

Geist MNS3EHW0-48PZB3-2PS56B0A10-S-A 48-Outlets PDU

by
VERTIV
PCN#
5KA523
MFG#
NS30014L
$2,055.52
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Switched
  • 3P+N+E (IP44)
  • 36 x U

Show more

Product Condition: New and Factory Fresh
Limited Warranty5 Year
Shipping Weight: 18 lbs.
Geist MNS3EHW0-48PZB3-2PS56B0A10-S-A 48-Outlets PDU
Tech Specs
Specifications

Manufacturer

Vertiv

Manufacturer Part Number

NS30014L

Manufacturer Website Address

http://www.vertiv.com/

Brand Name

Geist

Product Model

MNS3EHW0-48PZB3-2PS56B0A10-S-A

Product Name

MNS3EHW0-48PZB3-2PS56B0A10-S-A 48-Outlets PDU

Marketing Information

The NS30014L provides IP-based monitoring and outlet control with quick access to real-time power metrics and environmental sensor data. Using Visible Light Communication (VLC) technology, NS30014L optically transmits power usage data from its LED display to a handheld device using the Geist Mobile App, presenting comprehensive power usage data down to the phase and circuit levels. With the Geist Upgradeable hot-swap technology, users may easily upgrade PDUs to the latest available technology by replacing the Interchangeable Monitoring Device (IMD) module.

Product Type

PDU
Technical Information

PDU Type

Switched

Phase

Three Phase

Plug/Connector Type

3P+N+E (IP44)

Plug/Connector Detail

1 x 3P+N+E (IP44)

Receptacle Type

  • U-Lock IEC 60320 C13
  • U-Lock IEC 60320 C19

Receptacle Detail

  • 36 x U-Lock IEC 60320 C13
  • 12 x U-Lock IEC 60320 C19
Power Description

Input Voltage

  • 230 V AC
  • 415 V AC

Input Voltage Range

  • 200 V AC - 240 V AC
  • 346 V AC - 415 V AC

Output Voltage

230 V AC

Power Rating (Watt)

11 kW

Input Current

20 A
Management

Management

  • DHCP
  • HTTP
  • HTTPS
  • IPv4
  • IPv6
  • LDAP
  • NTP
  • RSTP
  • SSH
  • SMTP
  • SNMP (v1/v2c/v3)
  • Syslog

Remote Outlet Switching

Yes
Interfaces/Ports

Network (RJ-45)

Yes
Physical Characteristics

Mounting Orientation

Vertical

Mount Type

Rack-mountable

Rack Height

0U

Width

3.7"

Depth

2.6"

Length

70"
Miscellaneous

Package Contents

  • MNS3EHW0-48PZB3-2PS56B0A10-S-A 48-Outlets PDU
  • Vertical Mounting Bracket Kit

Environmentally Friendly

Yes

Country of Origin

United States
Warranty

Limited Warranty

5 Year
