Vertiv Liebert MicroPOD - (8) NEMA 5-20R| 16A| UPS Maintenance Bypass/Switch

Name: Vertiv Liebert MicroPOD - (8) NEMA 5-20R| 16A| UPS Maintenance Bypass/Switch
Brand: VERTIV
SKU: 629578
Price: 315.97 USD
Availability: InStock

VERTIV

PCN#

629578

MFG#

MP2-120C

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$315.97

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

(3) NEMA 5
20P| Max Current 16A| AC 120V| for GXT and PSI UPS| 3kVA and below

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 10 lbs.

Vertiv Liebert MicroPOD - (8) NEMA 5-20R| 16A| UPS Maintenance Bypass/Switch

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	MP2120C
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Liebert
Product Line	MicroPOD
Product Model	MP2-120C
Product Name	MicroPOD MP2-120C Bypass Switch

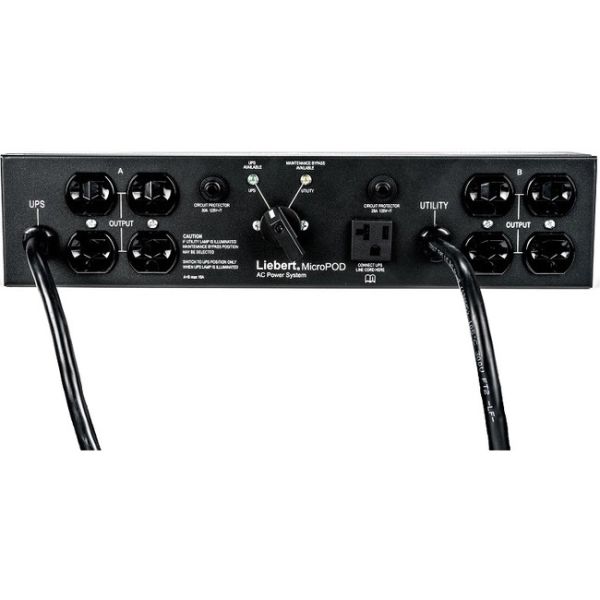

Marketing Information	The Vertiv Liebert MicroPod External Maintenance Bypass POD (MP2-120C) is an external power output distribution (POD) unit and maintenance bypass switch for your uninterruptible power supply (UPS) unit. With the MicroPod, you can avoid initiating unnecessary downtimes during UPS maintenance or replacements. It allows the manual transfer of power from the UPS to the utility source without power interruption to the connected load, ensuring continuous uptime for your critical operations. The MicroPod MP2-120C is designed for the Vertiv Liebert GXT and Vertiv Liebert PSI UPS 3kVA models and below, but is compatible with other UPS brands as well. It comes with brackets for easy rack mounting and is equipped with three NEMA 5-20P input connectors. The MicroPOD has eight NEMA 5-20R output connectors and is available at 120V and supports a max current of 16A.
Product Type	Bypass Switch

Technical Information

Plug/Connector Type	NEMA 5-20P
Receptacles	8 x NEMA 5-20R
Protection Type	Surge Signal

Power Description

Input Voltage	120 V AC
Output Voltage	120 V AC
Current	16 A

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	2U
Height	3.5"
Width	17"
Depth	3.5"

Miscellaneous

Package Contents	MicroPOD MP2-120C Bypass Switch Brackets for Rack Mounting
Compatibility	Liebert Micro-UPS Systems
Certifications & Standards	UL cUL

Warranty

Limited Warranty

2 Year
