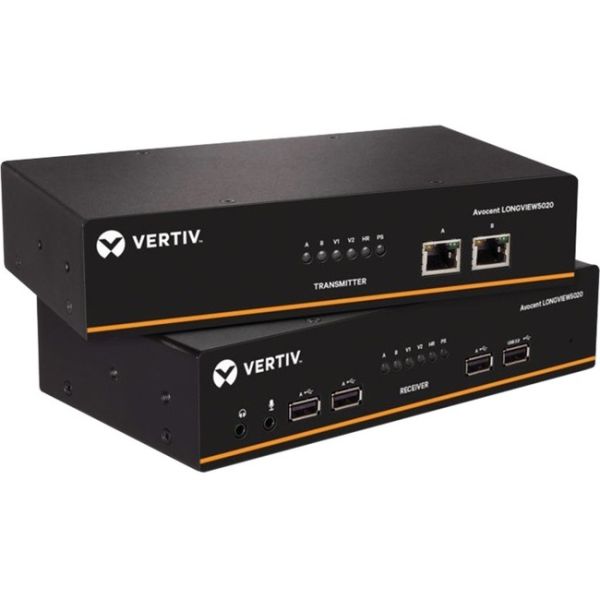

Vertiv Avocent LongView - Dual Monitor, USB, Audio, CATx up to 100m / 330ft

by
VERTIV
PCN#
4D5673
MFG#
LV5020P-001
$2,134.02
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • LongView DP, USB, audio, CatX Extender 150 Meters/500 ft (Single Head 4K 30 Hz Support)
Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 7 lbs.
Vertiv Avocent LongView - Dual Monitor, USB, Audio, CATx up to 100m / 330ft
Tech Specs
Specifications

Manufacturer

Vertiv

Manufacturer Part Number

LV5020P-001

Manufacturer Website Address

http://www.vertiv.com/

Brand Name

AVOCENT

Product Line

LV

Product Series

5000

Product Model

LV5020

Product Name

LV5020 Dual VGA KVM Extender

Marketing Information

The Vertiv Avocent LV 5000 high-performance KVM extender kit uses DisplayPort technology to support ultra-high-resolution (3840x2160) 4K video transmission and remote KVM control. The extender moves computing assets to secure, climate-controlled environments up to 330 ft. from the workstation while still delivering seamless and instantaneous KVM capabilities. The extender delivers a smooth user experience with no delays or signal degradation and supports isochronous USB devices such as webcams, joysticks and touchscreens. Pass through ports allow use of a local console at the transmitter and/or receiver as needed. The Avocent LV 5000 high-performance KVM extender does not require on-site configuration, plug them in, and start working right away without drivers or software to install. Bring order to environments that can't afford unnecessary complexity with the Vertiv Avocent LV 5000 High-Performance KVM Extender Kit.

Packaged Quantity

1

Product Type

KVM Console/Extender
Technical Information

Connectivity Technology

Wired

Number of Computers Supported

1

Number of Remote Users Supported

1

Maximum Operating Distance

492.13 ft

Device Type

KVM Extender
Video

Graphic Mode

4K

Maximum Video Resolution

3840 x 2160
Interfaces/Ports

USB

Yes

DisplayPort

Yes
Power Description

Input Voltage

  • 120 V AC
  • 240 V AC

Input Voltage Range

100V AC to 240V AC

Power Consumption

20 W
Physical Characteristics

Rack Height

1U

Form Factor

Rack-mountable

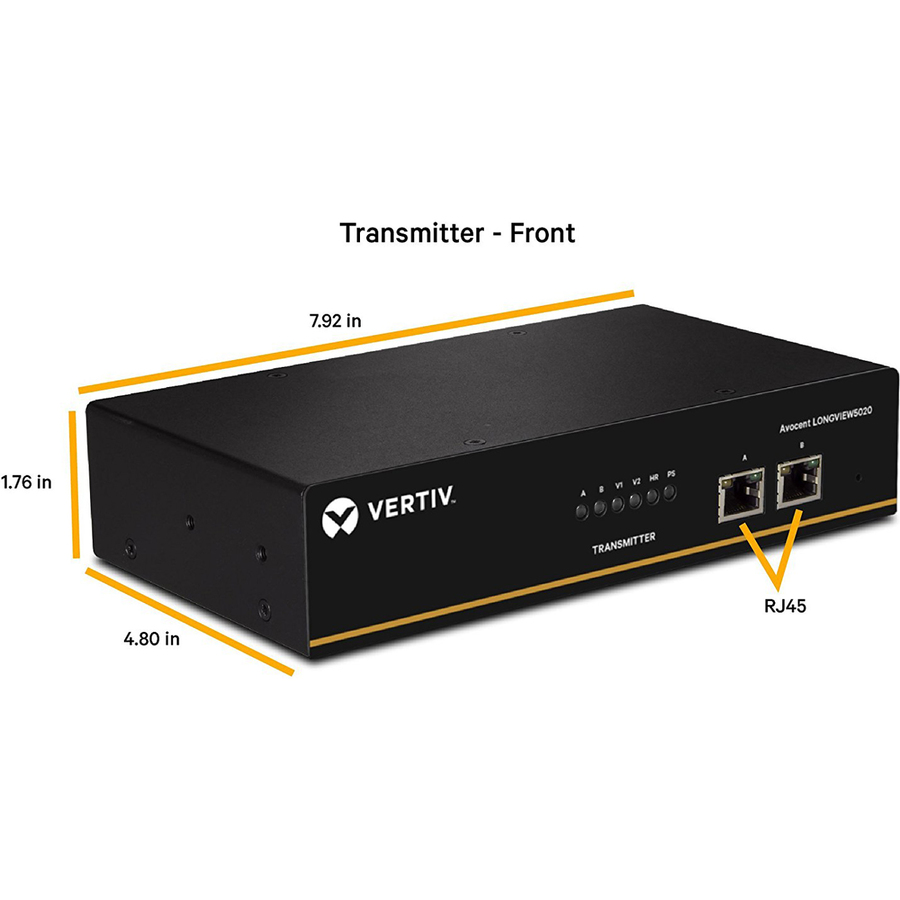

Transmitter Height

1.76"

Transmitter Width

7.92"

Transmitter Depth

4.80"

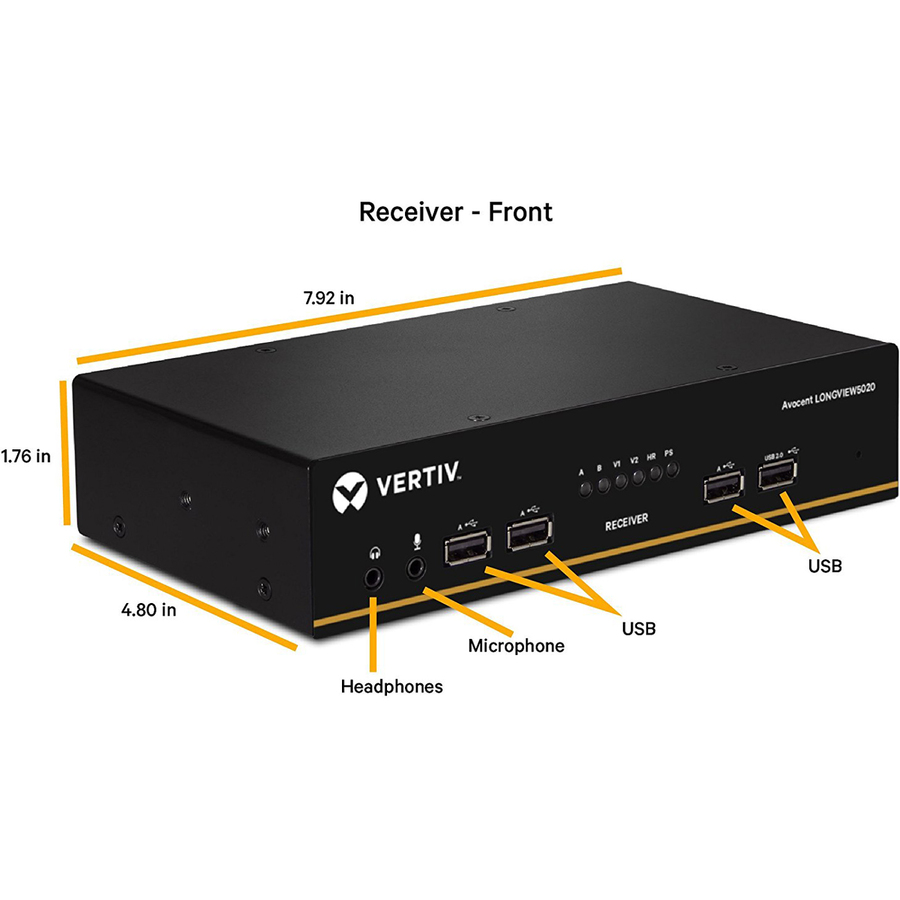

Receiver Height

1.76"

Receiver Width

7.92"

Receiver Depth

4.80"

Transmitter Weight (Approximate)

1.65 lb

Receiver Weight (Approximate)

1.65 lb
Miscellaneous

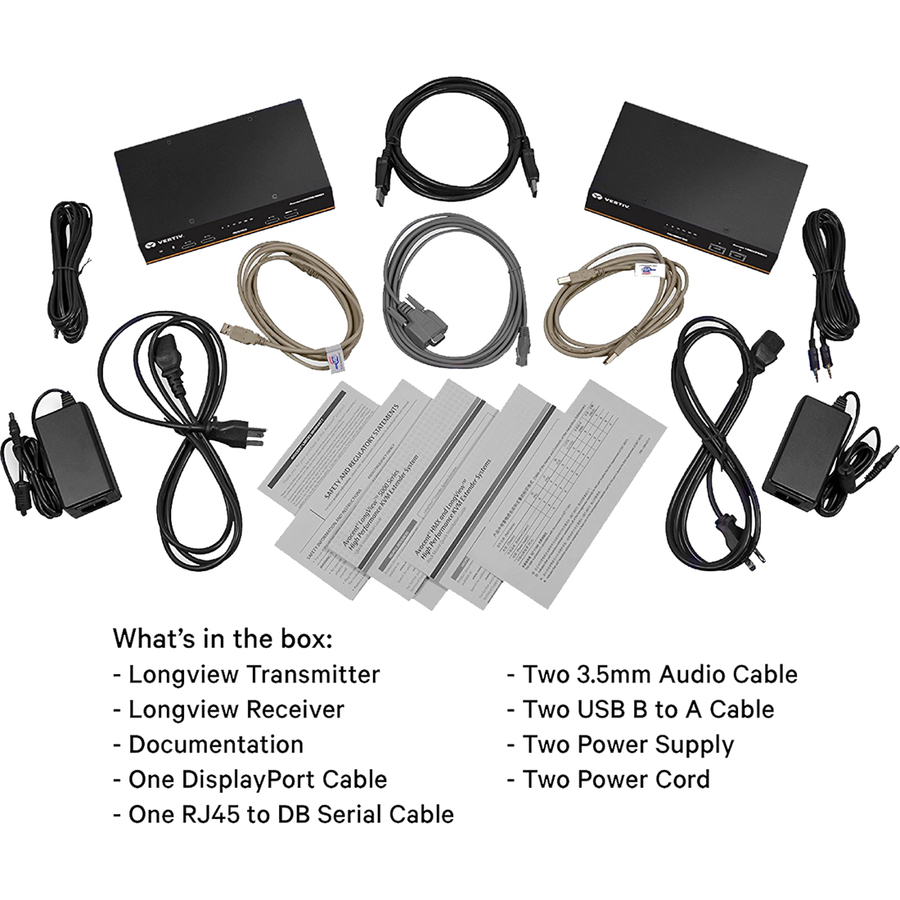

Package Contents

  • LongView Dual Display Port,USB,audio,CATx 150M
  • Power Adapter

Certifications & Standards

  • CE
  • FCC
  • UL

Country of Origin

United States
Warranty

Limited Warranty

2 Year
