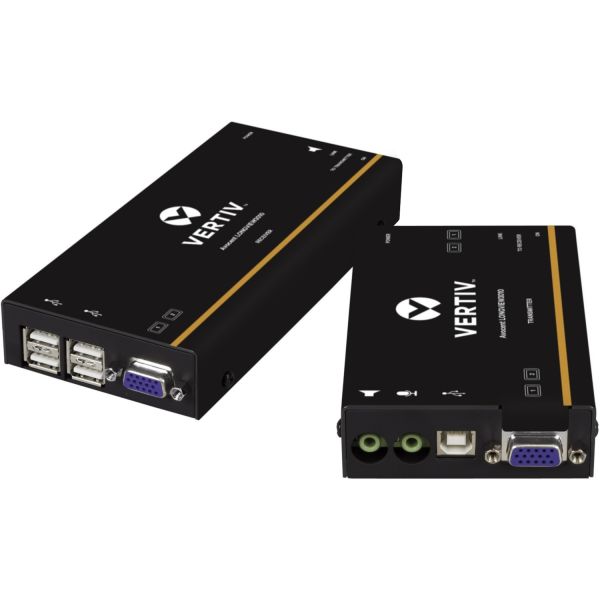

Avocent LV 3000 Series High Quality KVM Extender Kit with Receiver & Transmitter

by
VERTIV
PCN#
3A0183
MFG#
LV3010P-001
$1,237.34
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • LongView, Single Display, 1920x1200 VGA, USB, Audio, 300m Extender
Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 5 lbs.
Avocent LV 3000 Series High Quality KVM Extender Kit with Receiver & Transmitter
Tech Specs
Specifications

Manufacturer

Vertiv

Manufacturer Part Number

LV3010P-001

Manufacturer Website Address

http://www.vertiv.com/

Brand Name

AVOCENT

Product Line

LV

Product Series

3000

Product Model

LV3010

Product Name

LV3010 Single VGA KVM Extender

Marketing Information

The Vertiv Avocent LV 3000 High-Performance KVM Extender allows computing assets to be in secure, climate-controlled environments up to 1,000 ft. away from the workstation while still delivering seamless and instantaneous KVM control. The extender supports VGA transmission for single and multi-screen desktops with a single VGA, USB, Audio, or CATx cable. Pass through ports allow use of a local console at the transmitter and/or receiver as needed. The Avocent LV 3000 supports up to four USB 2.0 devices, including isochronous devices such as webcams, joysticks and touchscreens. The Avocent LV 5000 high-performance KVM extender does not require on-site configuration, plug them in, and start working right away without drivers or software to install. Bring order to environments that can't afford unnecessary complexity with the Vertiv Avocent LV 3000 High-Performance KVM Extender Kit.

Packaged Quantity

1

Product Type

KVM Console/Extender
Technical Information

Connectivity Technology

Wired

Number of Local Users Supported

1

Number of Remote Users Supported

1

Maximum Operating Distance

1000 ft

Device Type

KVM Extender
Video

Graphic Mode

WUXGA

Maximum Video Resolution

1920 x 1200
Interfaces/Ports

USB

Yes

VGA

Yes

Number of VGA Ports

1

Number of USB Ports

4
Power Description

Input Voltage

  • 120 V AC
  • 240 V AC

Input Voltage Range

120V AC to 230V AC

Power Consumption

12 W
Physical Characteristics

Form Factor

Rack-mountable

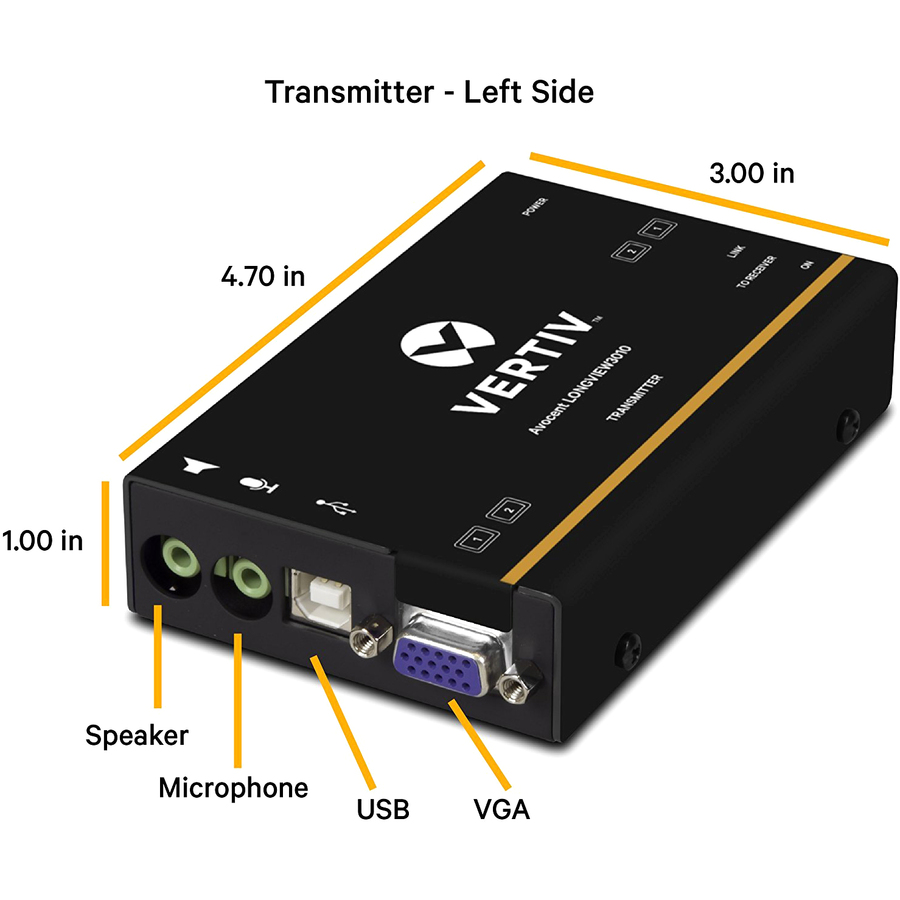

Transmitter Height

3"

Transmitter Width

6.10"

Transmitter Depth

1"

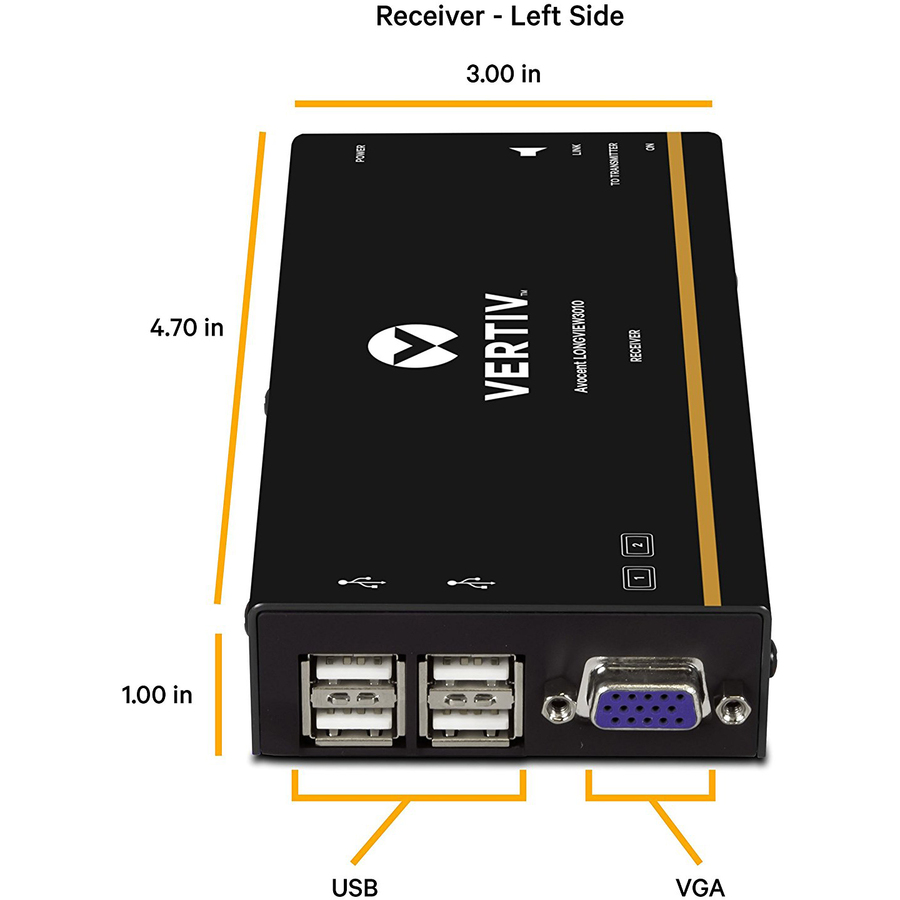

Receiver Height

3"

Receiver Width

6.10"

Receiver Depth

1"

Transmitter Weight (Approximate)

2.09 lb

Receiver Weight (Approximate)

2.09 lb
Miscellaneous

Platform Supported

PC

Country of Origin

United Kingdom
Warranty

Limited Warranty

2 Year
