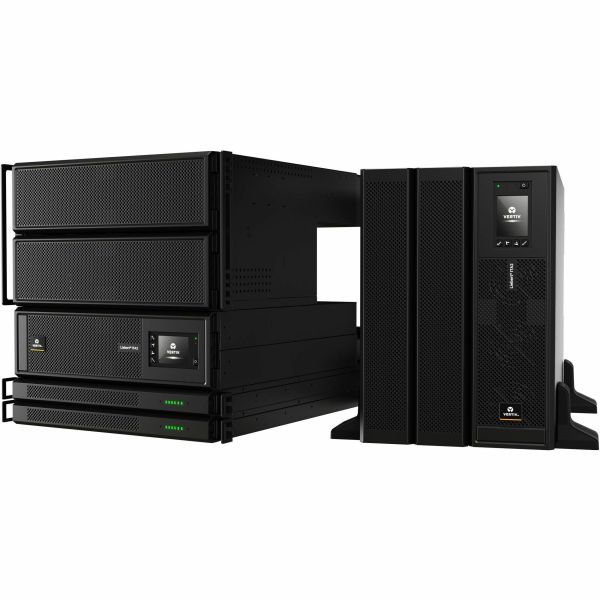

Vertiv Liebert ITA2 UPS External Battery Cabinet System (Qty 2-3U Cabinets)(ITA2-BCI0020K02)

Name: Vertiv Liebert ITA2 UPS External Battery Cabinet System (Qty 2-3U Cabinets)(ITA2-BCI0020K02)
Brand: VERTIV - 3 PHASE UPS
SKU: 7AD633
Price: 3054.38 USD
Availability: InStock

VERTIV - 3 PHASE UPS

PCN#

7AD633

MFG#

ITA2-BCI0020K02

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$3,054.38

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

rack
mountable / tower
Qty 2 cabinets/string
each cabinet is 2U (4U per string)
One ITA2
BCI20K02L2 cable kit required for each additional (2 or more) battery cabinet systems

Product Condition: New and Factory Fresh

Limited Warranty2 YearAdditional Warranty Information1 & 3 Additonal years optional

Shipping Weight: 1 lbs.

Vertiv Liebert ITA2 UPS External Battery Cabinet System (Qty 2-3U Cabinets)(ITA2-BCI0020K02)

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	ITA2-BCI0020K02
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv Liebert
Product Series	ITA2
Product Model	Liebert ITA2
Product Name	ITA2-BCI0020K02 EBC
Marketing Information	The Vertiv Liebert ITA2-BCI0020K02 is a hot-swappable, lead-acid UPS external battery cabinet (EBC) system that provides the Liebert ITA2 3-phase UPS systems with extended battery runtimes. It offers rackmount or tower configuration options. The EBC system consists of (2) 2U cabinets per string (total 4U per string). It is easy to install and operate. The capability to add external battery cabinets provides scalable runtime for those applications requiring even a longer period of backup in case of AC mains failures. The Liebert ITA2 UPS EBC has a 2-year warranty.
Packaged Quantity	1
Product Type	Battery Cabinet

Technical Information

Battery Characteristics	Valve-regulated/User Replaceable
Battery Chemistry	Lead Acid
Hot Swappable	Yes
Input Voltage	384 V DC
Output Voltage	384 V DC

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	122°F (50°C)

Physical Characteristics

Color Family	Dual Color
Product Color	Black Gray
Form Factor	Tower/Rack Mountable
Rack Height	4U
Height	3.3"
Width	16.9"
Depth	29.6"
Weight (Approximate)	230 lb

Miscellaneous

Package Contents	2 x Battery Cabinets individually in shipping cartons stacked on pallet with outer box Rack handles & associated hardware in each individually boxed cabinet Rack Rail Kit Low Cost & associated hardware in each individually boxed cabinet Support base extension (2) in each individually boxed cabinet Quick Start Guide in each individually boxed cabinet
Additional Information	Protection Type: Under Voltage, Over Temperature, Short Circuit, Output Over Voltage, Output Over Current, No Load Extra Power for Future Expansion: Additional Battery Cabinets wired in parallel available Plug/Connector Type: Custom Plug Connected Number of Batteries: 16 per cabinet (32 per string) Maximum Operating Temperature: 32-122 degF (0-50 degC), 77 degF (25 degC) optimum & recommended Package Type: Corugated, ISTA 3B certified
Compatibility	ITA2-08KRT208C ITA2-10KRT208C
Certifications & Standards	UL/cUL listed to UL 1778, 5th Ed. CSA 22.2 No. 107.3 CE certified ISTA 3B
Country of Origin	China
TAA Compliant	No
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) 2 Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty	2 Year
Additional Warranty Information	1 & 3 Additonal years optional
