Vertiv Liebert ITA2 8kVA/7.2kW 208/120VAC 3-Phase 4 Wire Online UPS with SNMP (ITA2-08KRT208C)

Name: Vertiv Liebert ITA2 8kVA/7.2kW 208/120VAC 3-Phase 4 Wire Online UPS with SNMP (ITA2-08KRT208C)
Brand: VERTIV - 3 PHASE UPS
SKU: 5DA975
Price: 7223.95 USD
Availability: InStock

VERTIV - 3 PHASE UPS

PCN#

5DA975

MFG#

ITA2-08KRT208C

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$7,223.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $418.99

3-Year $535.99

Estimated Shipment:

Product Highlights:

Rack/Tower
208 V AC, 220 V AC Input

Product Condition: New and Factory Fresh

Limited Warranty2 YearAdditional Warranty Information1 & 3 Additonal years optional

Shipping Weight: 80 lbs.

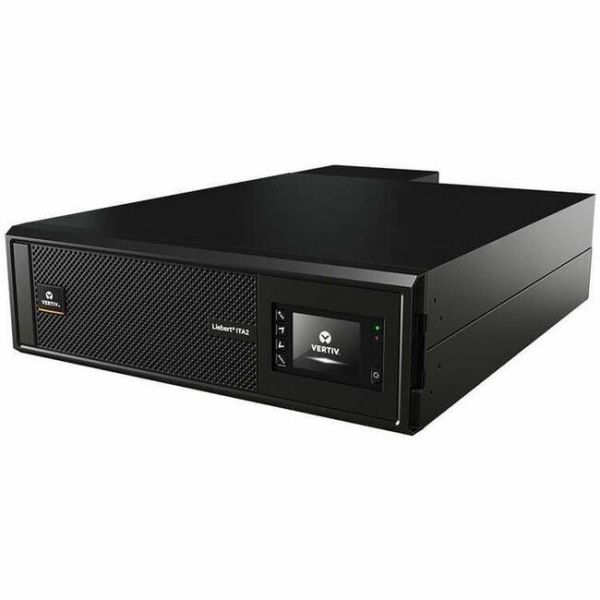

Liebert ITA2 8kVA Rack/Tower UPS

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	ITA2-08KRT208C
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv Liebert
Product Series	ITA2
Product Model	Liebert ITA2
Product Name	ITA2-08KRT208C UPS
Marketing Information	The Vertiv Liebert ITA2 UPS (ITA2-08KRT208C) is a compact, rack-tower convertible uninterruptible power supply (UPS) that employs true on-line, double-conversion technology that continuously conditions and regulates its output voltage. The Liebert ITA2 UPS is designed to supply microcomputers, servers, networking, and other sensitive equipment with clean sine wave input power. This UPS offers economical, efficient, and reliable three-phase power for critical loads up to 8kVA. This intelligent UPS has scalable battery runtimes, output distribution options, a unity power factor (1.0) and an optimized maintenance bypass cabinet option for enhanced availability and flexibility. It is easy to install and operate. It includes a network connectivity communications card. It provides intuitive control panel and optional software monitoring for visibility, control, and peace of mind for manned or unmanned locations. It has Energy Star 2.0 certification and comes with a 2-year warranty.
Packaged Quantity	1 Pack
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	Hardwired
Receptacle Type	Hardwired
Transfer Time	0 ns
Overload Protection	Yes
EMI/RFI Noise Filter	Yes
Phase	Three Phase
Application/Usage	IT Infrastructure

Power Description

Load Capacity (VA)	8000 VA
Load Capacity (Watt)	7200 W
Input Voltage	120 V AC 127 V AC 208 V AC 220 V AC
Input Voltage Range	166 V AC - 249 V AC
Output Voltage	120 V AC 127 V AC 208 V AC 220 V AC
Input Frequency	50 Hz
Input Current	24 A
Output Current	22 A
Waveform Type	Pure Sine Wave
Surge Energy Rating	80 J

Management

Network Management

SNMP/Modbus/TCP/BacNet IP

Interfaces/Ports

Serial Port	Yes
Parallel Port	Yes
Modem (RJ-11)	No
Network (RJ-45)	Yes
USB	Yes
USB (HID Compliant) Port	Yes
EPO Port	Yes
Modular Slots	Intellislot

Battery Information

Battery Characteristics	Hot-swappable/Valve-regulated
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	13 Minute
Backup/Run Time (Half Load)	33 Minute
Typical Battery Recharge Time	5.60 Hour
Replaceable Battery	Yes

Environmental Conditions

Maximum Operating Temperature	122°F (50°C)
Sound Emission (A-Weighted)	58 dB(A)
Thermal Dissipation	533.10 W

Physical Characteristics

Color Family	Dual Color
Product Color	Black Gray
Form Factor	Rack/Tower
Rack Height	3U
Height	5.1"
Width	16.9"
Depth	19.7"
Weight (Approximate)	50.70 lb

Miscellaneous

Package Contents	208V 8kVA UPS module USB Cable Rack handles & associated hardware Rack Rail Kit & associated hardware Wiring boxes with knockouts installed on back of module 4 x Support base ends for Tower mount application 2 x Support base extension Quick Start Guide (install & Start-up)/Safety instruction booklet IS-Unity-DP Intellislot Communication Card installed Power Cable Kit - UPS to 1st Battery String Communication Cable - UPS to 1st Battery String
Additional Information	Product Shipping Length: 33.1" Product Shipping Width: 25.3 " Product Shipping Height: 13.8 " Product Shipping Weight: 66 lbs Package Type: Corugated, ISTA 1A certified Protection Type: Transient, Overload, EMI / RFI, Under Voltage, AC Surge, Harmonics, Brownout, Over Temperature, Lightning, Short Circuit, Output Over Voltage, Output Over Current, AC Noise, No Load Minimum Frequency: Frequency 40 Hz Maximum Frequency: Frequency 70 Hz Input Current 24A Output Current 22A Energy Rating: Surge Energy Rating 385 Management: Network Management SNMP, Modbus TCP, BacNet IP, External Environmental Sensors Status: Overload Protection Electronic & External Circuit Breaker Type: Bypass Switch Automatic Internal Standard, External Maintenance Bypass Optional Status: Parallel Port Yes Status: Modem (RJ-11) No Number of Slots: Modular Slots 1, Expandable to 2 with Extnder Kit Slot Type: Modular Slots Vertiv Intellislot Time: Backup/Run Time (With Optional Battery): 33 @ FL with 2 strings 52 @ FL with 3 strings 76 @ FL with 4 strings Maximum Operating Temperature 32-122 degF (0-50 degC), no derating Body Color: Color Black-Grey (RAL 7021) Country/Region: For Country/Region Americas and any other 60 Hz country 208/120V or 220/127V System Requirements: System Requirements 208/120 VAC (or 220/127 VAC), 3 Phase, 4W+G Wye source Certifications & Standards: UL/cUL listed to UL 1778, 5th Ed CSA 22.2 No. 107.3 FCC Part 15, Class A ANSI C62.41 Cat. A, Level 3 IEC 62040-1 IEC6240-3
Certifications & Standards	UL listed to UL 1778, 5th Ed. CSA 22.2 No. 107.3 FCC Part 15, Class A ANSI C62.41, Cat. A, Level 3 IEC 62040-1, IEC6240-3 ISTA 1A
Energy Star	Yes
Country of Origin	China
TAA Compliant	No
Environmentally Friendly	Yes
Environmental Certification	ENERGY STAR 2.0
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) 2 Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty	2 Year
Additional Warranty Information	1 & 3 Additonal years optional
