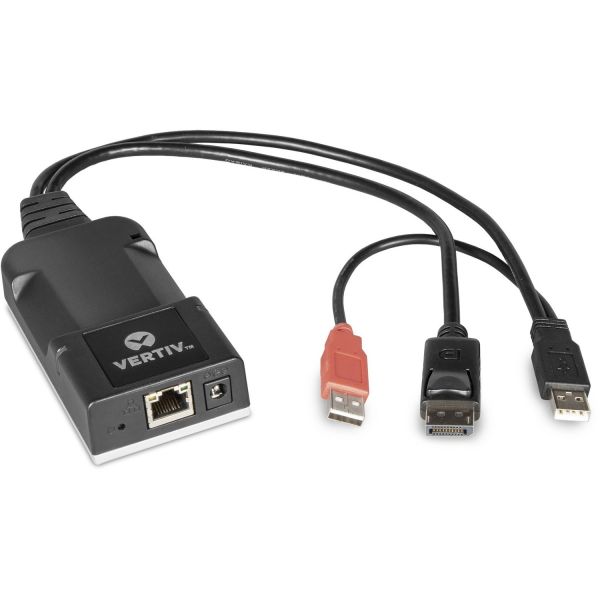

Vertiv Avocent HMX 6150T | High Performance KVM Transmitter | DisplayPort (HMX6150T-DP)

Name: Vertiv Avocent HMX 6150T | High Performance KVM Transmitter | DisplayPort (HMX6150T-DP)
Brand: VERTIV
SKU: 9AA041
Price: 920.17 USD
Availability: InStock

VERTIV

PCN#

9AA041

MFG#

HMX6150T-DP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$920.17

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

High Performance KVM Extender | IP
Based KVM Transmitter | DisplayPort | HDMI | USB 2.0 | HD to 2K | True Emulation

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 2 lbs.

Vertiv Avocent HMX 6150T | High Performance KVM Transmitter | DisplayPort (HMX6150T-DP)

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	HMX6150T-DP
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	AVOCENT
Product Line	HMX
Product Series	6000
Product Model	HMX6150
Product Name	HMX 6150T \| KVM Transmitter \| DisplayPort (HMX6150T-DP)
Marketing Information	The Vertiv Avocent HMX 6150T High Performance KVM System transmitter is a high performance KVM extender that provides access to system computers, allowing users the ability to access and share computing resources. It is a small form factor transmitter that takes up zero-U of rack space. Its IP-based KVM technology removes any distance limitations, allowing the extension of computers away from the user environment. The Vertiv Avocent HMX 6150T extends the current HMX offering through the increased video support from HD to 2K and adding USB 2.0 high speed with True Emulation support. The HMX 6150T is backward compatible with the current advanced HMX platform. It is ideal for demanding applications such as broadcast, control rooms, and collaborative environments.
Packaged Quantity	1
Product Type	KVM Extender Transmitter

Technical Information

Connectivity Technology	Wired
KVM Technology	Digital
Number of Computers Supported	1
Maximum Operating Distance	300 ft
Device Type	KVM Extender

Video

Graphic Mode	2K
Maximum Video Resolution	2560 x 1600

Interfaces/Ports

Host Interface	DisplayPort
Network (RJ-45)	Yes
PS/2 Port	No
USB	Yes
Digital Audio/Video	Yes
DVI	No
Headphone	No
Microphone	No
HDMI	No
VGA	No
DMS-59 Port	No
DisplayPort	Yes
Proprietary Interface	No
Number of HDMI Ports	0
Number of VGA Ports	0
Number of Network (RJ-45) Ports	1
Number of PS/2 Ports	0
Number of USB Ports	2
Number of DVI Ports	0
Number of ST Ports	0

Power Description

Input Voltage	5 V DC
Power Consumption	3 W

Physical Characteristics

Product Color	Black
Rack Height	0U
Transmitter Height	1"
Transmitter Width	2.17"
Transmitter Depth	1.10"
Transmitter Weight (Approximate)	6.40 oz

Miscellaneous

Certifications & Standards	CE UL FCC
Platform Supported	Linux Mac Sun Unix PC
Environmentally Friendly	Yes
Country of Origin	United Kingdom
TAA Compliant	Yes

Warranty

Limited Warranty

2 Year
