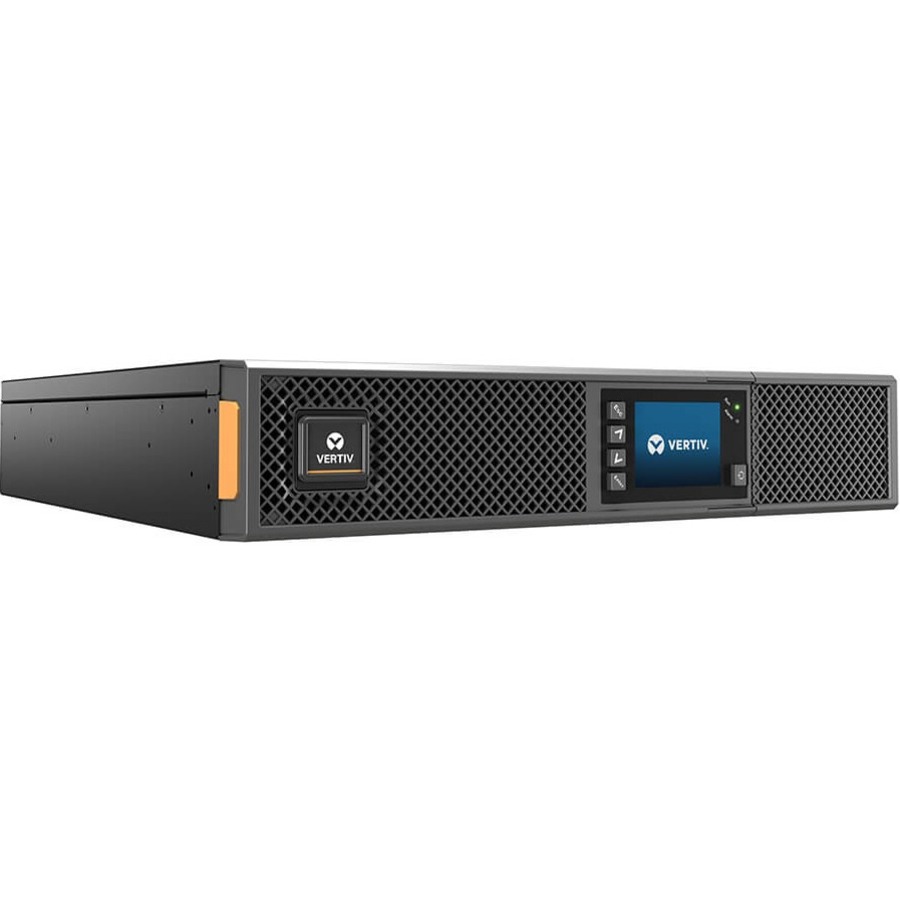

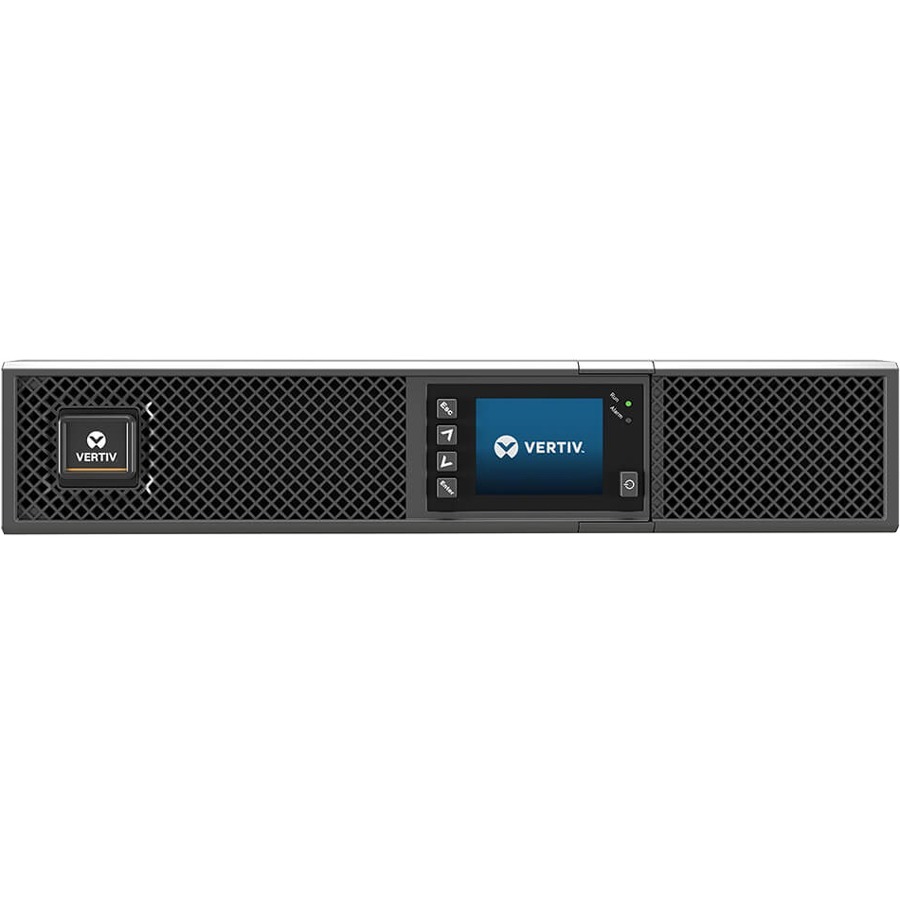

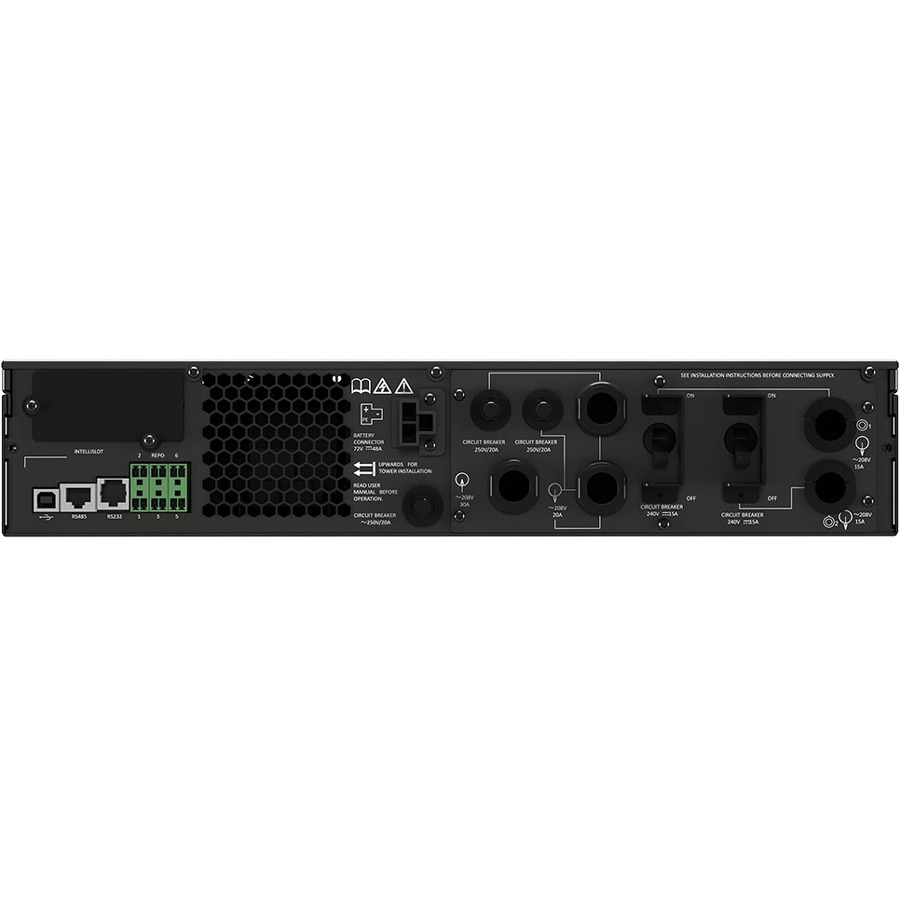

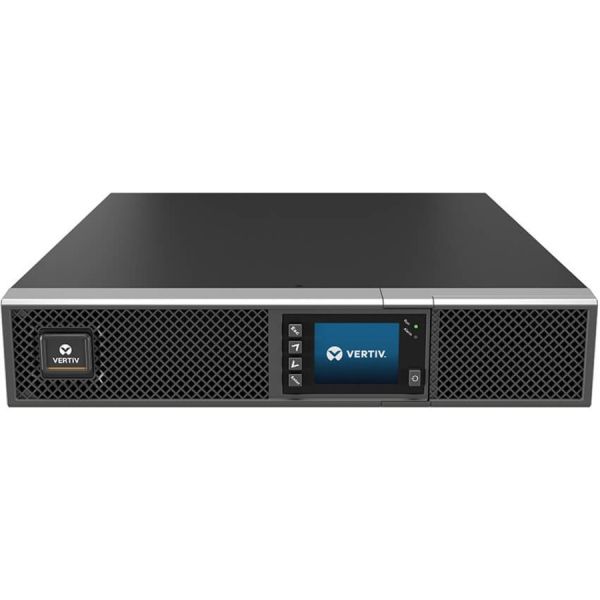

Vertiv Liebert GXT5 UPS - 3kVA/3kW 208V | Online Rack Tower Energy Star L6-30P

Name: Vertiv Liebert GXT5 UPS - 3kVA/3kW 208V | Online Rack Tower Energy Star L6-30P
Brand: VERTIV-CONTAINER
SKU: 6TU736
Price: 3706.26 USD
Availability: InStock

VERTIV-CONTAINER

PCN#

6TU736

MFG#

GXT5-3KL630RT2UXL

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$3,706.26

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Estimated Shipment:

Product Highlights:

Double Conversion| 2U| Optional RDU101 Card , Color/Graphic LCD| 3
Year Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationOpt. 2 year extension

Shipping Weight: 81 lbs.

Vertiv Liebert GXT5 UPS - 3kVA/3kW 208V | Online Rack Tower Energy Star L6-30P

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	GXT5-3KL630RT2UXL
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv Liebert
Product Series	GXT
Product Name	GXT5 3kVA 208V UPS
Marketing Information	The Vertiv Liebert GXT5-3KL630RT2UXL uninterruptible power supply (UPS) protects critical equipment against outages and power disturbances. This single-phase, 3kVA online double conversion UPS comes with an L6-30P Input Cord. It offers continuous power conditioning in centralized and edge locations. With a high power factor (0.9-1.0), it allows more connected loads, saving space and costs. This compact rack mount/tower UPS has an optional Vertiv RDU101 communications card for remote monitoring and control to help enable faster event resolution. With the free Vertiv Power Insight software, monitor up to 100 distributed UPS units and receive simple notifications of their status and events in one place. This UPS has scalable runtime options with matching external battery cabinets for extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive, gravity-sensing, full-color LCD screen.
Packaged Quantity	1
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	NEMA L6-30P
Receptacle Type	NEMA L6-30R NEMA L6-15R
Receptacle Detail	2 x NEMA L6-30R 2 x NEMA L6-15R
Bypass Switch	Automatic & Manual Internal
Emergency Power OFF	Yes
Cord Length	10 ft
Transfer Time	0 ns
Phase	Single Phase
Application/Usage	Mission Critical Equipment Data Center

Power Description

Load Capacity (VA)	3000 VA
Load Capacity (Watt)	3000 W
Input Voltage	208 V AC
Output Voltage	200 V AC 208 V AC 220 V AC 230 V AC 240 V AC
Input Frequency	50 Hz
Waveform Type	Sine Wave
Utility (AC) Mode Overload	>200% for 250ms 150-200% for 2 seconds 125-150% for 10 seconds 105-125% for 15 seconds

Controls/Indicators

Status Indicators

Full Color Graphic LCD / Diagnostic LEDs:

Alarm
Fault Indication

Interfaces/Ports

Serial Port	Yes
VGA	No
Modem (RJ-11)	No
Network (RJ-45)	Yes
USB	Yes
Total Number of Expansion Slots	1

Battery Information

Battery Characteristics	Valve-regulated, Non-spillable
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	3 Minute
Backup/Run Time (Half Load)	9 Minute
Number of External Battery Cabinets	1
Backup/Run Time With External Battery Cabinet (Full Load)	17 Minute
Backup/Run Time With External Battery Cabinet (Half Load)	43.50 Minute
Hot Swappable	Yes

Environmental Conditions

Environmental Sensors

Leak Detection Sensor
Temperature Sensor
Humidity Sensor

Physical Characteristics

Height	3.3"
Width	16.9"
Depth	21.3"
Rack Height	2U
Form Factor	Rack/Tower
Weight (Approximate)	65.10 lb

Miscellaneous

Package Contents	GXT5 3kVA 208V UPS 4 Post Fixed Rail Kit Tower Stand USB Cable Quick Start Guide Safety Instruction Manual
Additional Information	Package Type: Natrual corrugated with single color silk screen Dataline Protection: No
Certifications & Standards	IEEE/ANSI C62.41 Category A & B ISTA Procedure 1A UL1778 c-UL listed CSA 22.2 No 107.3 FCC Part 15 (Class A)
Energy Star	Yes
Country of Origin	China
TAA Compliant	No
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Opt. 2 year extension
