Vertiv Geist PDU Facility Side Cable - 30/32A, 230/400V WYE

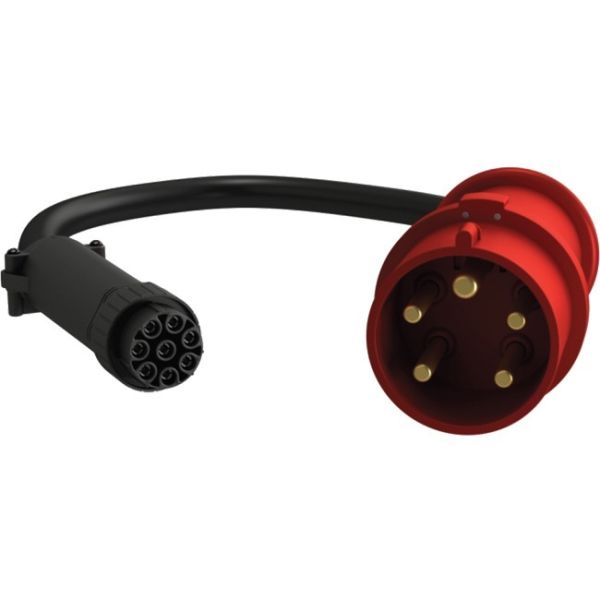

The Vertiv Geist Facility Side Cable (FSC3U002) is the detachable power cord used to define the input power configuration of the Vertiv Geist Universal Power Distribution Unit (Vertiv Geist UPDU). This 10-foot cord is equipped with a 3P+N+E (IP44) plug. It has a max power capacity of 22.0kW and has a power rating of 30/32A and 230/400V WYE.

• 230 V AC
• 415 V AC

• 50 Hz
• 60 Hz

• 30 A
• 32 A

• Voltage: 208-240/360-415V WYE
• Current: 30/32A x 3 Phase WYE
• Power Cable Wire Gauge: 9/5 (6mm2)
• Plug Type: Splashproof IP44
• Max Plug kW: 22.0kW (230V)
• UPDU Voltage per Receptacle/Socket: 208-240V

• CE Marked
• EN 55032 and EN 55024
• IEC 60950-1 (CB Certificate Available)
• UL & c-UL Listed 60950
