Vertiv Geist PDU Facility Side Cable - 60A, 208V Delta

Name: Vertiv Geist PDU Facility Side Cable - 60A, 208V Delta
Brand: VERTIV
SKU: 7AB134
Price: 396.61 USD
Availability: InStock

VERTIV

PCN#

7AB134

MFG#

FSC3N006

$396.61

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 14 lbs.

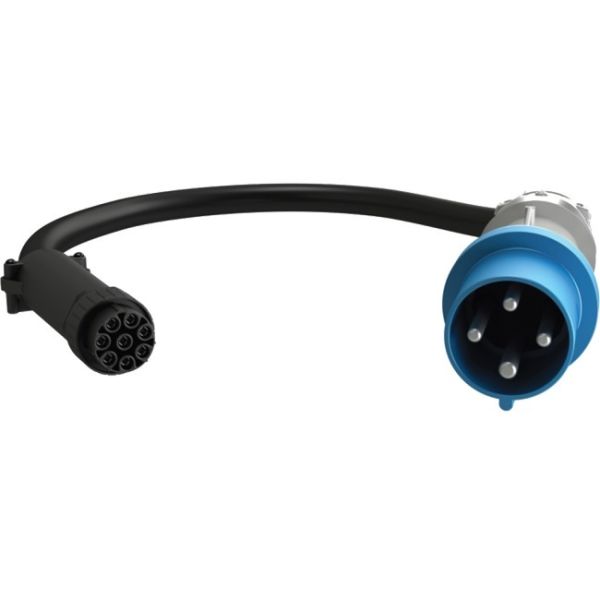

Vertiv Geist PDU Facility Side Cable - 60A, 208V Delta

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	FSC3N006
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Geist
Product Model	CSN-S02A8-03000-6PS15D-S
Product Name	CSN-S02A8-03000-6PS15D-S Standard Power Cord
Marketing Information	The Vertiv Geist Facility Side Cable (FSC3N006) is the detachable power cord used to define the input power configuration of the Vertiv Geist Universal Power Distribution Unit (Vertiv Geist UPDU). This 10-foot cord is equipped with a 3P+E (IP44) plug. It has a max power capacity of 17.2kW and has a power rating of 60A and 208V Delta.
Packaged Quantity	1
Product Type	Standard Power Cord

Technical Information

First End Connector Type	IEC 60309 3P+E
First End Connector Detail	1 x 4-pin IEC 60309 3P+E Male
Second End Connector Type	Universal Connector
Second End Connector Detail	1 x 8-pin Universal Connector Female
Device Supported	PDU

Power Description

Physical Characteristics

Cord Length

10 ft

Miscellaneous

Additional Information	Voltage: 208V Delta Current: 60A x 3 Phase DELTA Power Cable Wire Gauge: 6/4 Plug Type: Splashproof IP44 Max Plug kW: 17.2kW (208V) UPDU Voltage per Receptacle/Socket: 208-240V
Compatibility	Vertiv Geist Universal Rack PDU (UPDU)
Certifications & Standards	UL & c-UL Listed 60950
Environmentally Friendly	Yes
Country of Origin	United States

Warranty

Limited Warranty

5 Year
