Vertiv Geist PDU Facility Side Cable - 30A, 208V

Name: Vertiv Geist PDU Facility Side Cable - 30A, 208V
Brand: VERTIV
SKU: 7AB127
Price: 212.23 USD
Availability: InStock

VERTIV

PCN#

7AB127

MFG#

FSC1N001

$212.23

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

Vertiv Geist PDU Facility Side Cable - 30A, 208V

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	FSC1N001
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Geist
Product Model	CSN-S02A8-03000-3TL6A-S
Product Name	CSN-S02A8-03000-3TL6A-S Standard Power Cord

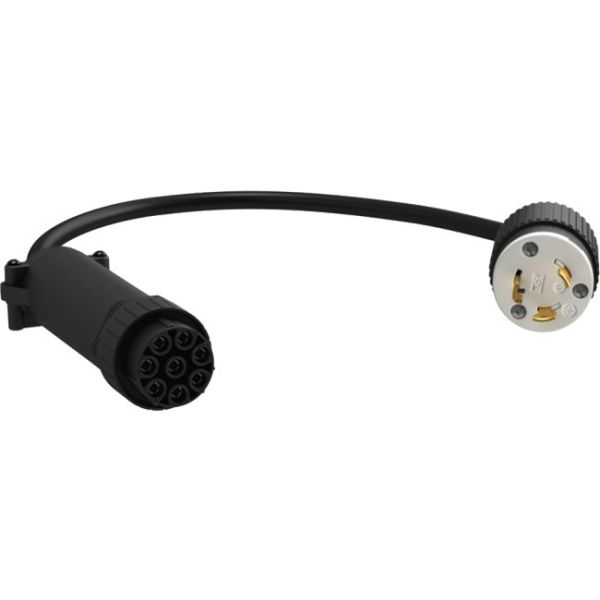

Marketing Information	The Vertiv Geist Facility Side Cable (FSC1N001) is the detachable power cord used to define the input power configuration of the Vertiv Geist Universal Power Distribution Unit (Vertiv Geist UPDU). This 10-foot cord is equipped with a NEMA L6-30P plug. It has a max power capacity of 4.9kW and has a power rating of 30A and 208V.
Packaged Quantity	1
Product Type	Standard Power Cord

Technical Information

First End Connector Type	NEMA L6-30P
First End Connector Detail	1 x 3-pin NEMA L6-30P Male
Second End Connector Type	Universal Connector
Second End Connector Detail	1 x 8-pin Universal Connector Female
Device Supported	PDU

Power Description

Physical Characteristics

Cord Length

10 ft

Miscellaneous

Additional Information	Voltage: 200-240V Power Cable Wire Gauge: 10/3 Plug Type: NEMA L6-30P Twistlock Max Plug kW: 4.9kW (208V) UPDU Voltage per Receptacle/Socket 208-240V
Compatibility	Vertiv Geist Universal Rack PDU (UPDU)
Certifications & Standards	UL & c-UL Listed 60950
Environmentally Friendly	Yes
Environmental Certification	RoHS

Warranty

Limited Warranty

5 Year
