18414 - RPDU METERED SURGE 20A 10 NEMA 5-15R 10FT POWER CORD

Name: 18414 - RPDU METERED SURGE 20A 10 NEMA 5-15R 10FT POWER CORD
Brand: VERTIV
SKU: 7AA897
Price: 322.19 USD
Availability: InStock

VERTIV

PCN#

7AA897

MFG#

18414

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$322.19

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Metered
NEMA 5
20P
10 x NEMA 5
20R
120 V AC
Surge Protection, Overcurrent Protection
10 ft Cord Length
Horizontal
Rack
mountable
Rack
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 7 lbs.

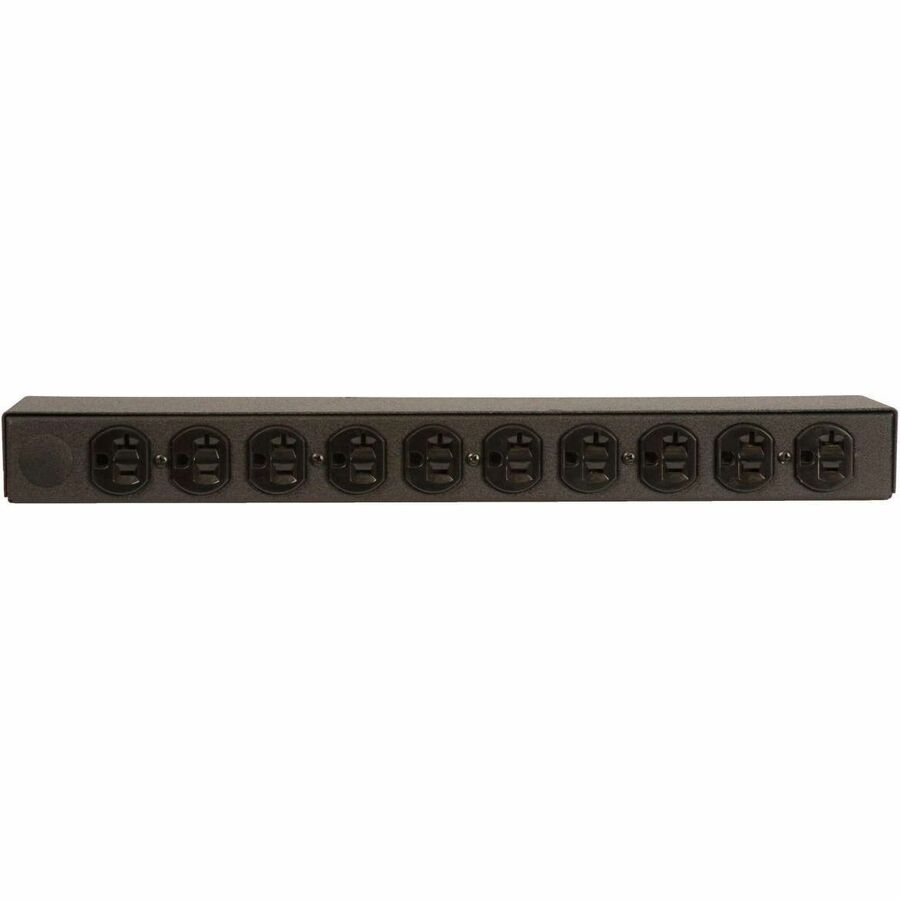

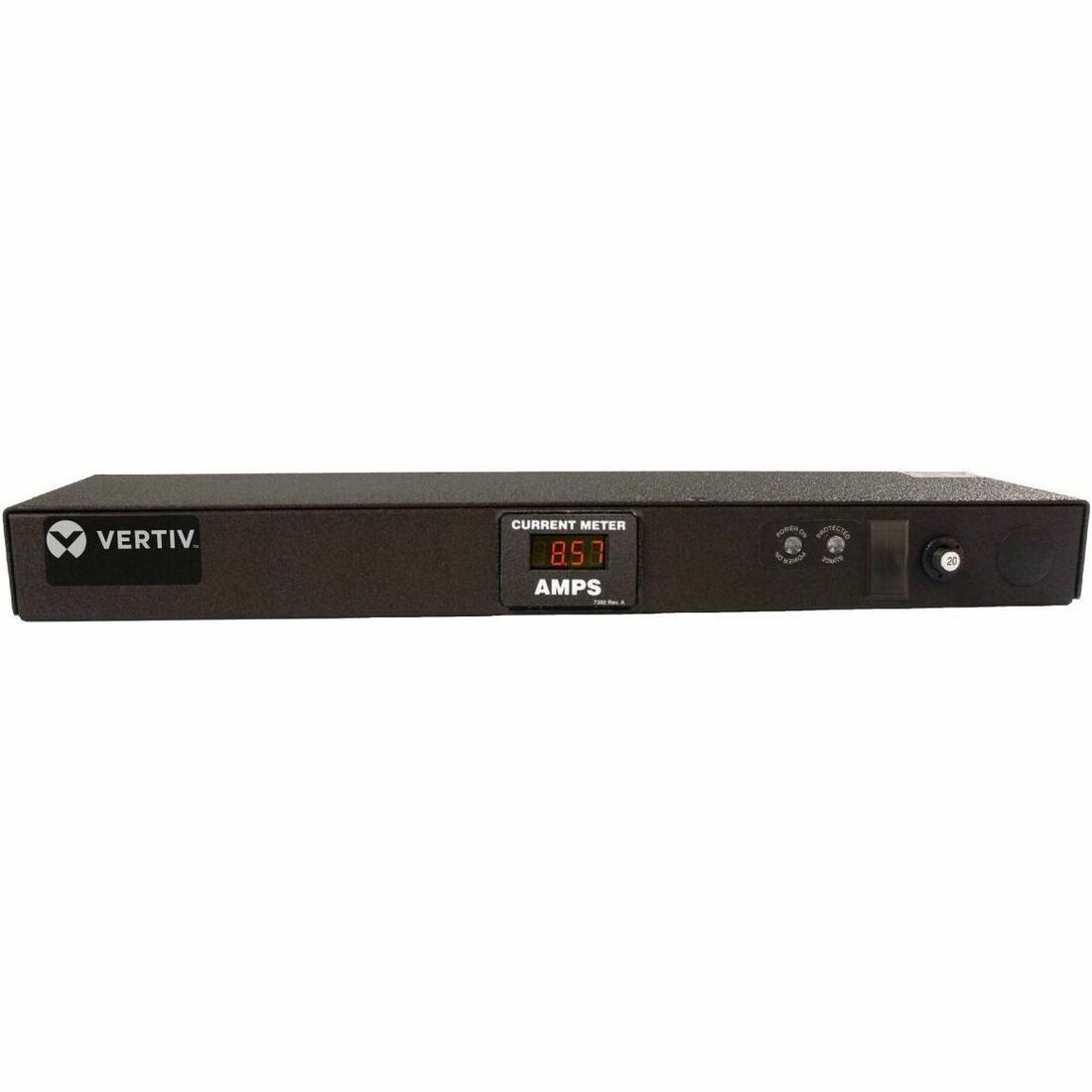

Vertiv Geist PowerIT rPDU SPFAN104-1025 10-Outlets PDU

Overview

Tech Specs

Specifications

Manufacturer	Vertiv
Manufacturer Part Number	18414
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv Geist
Product Line	PowerIT
Product Series	rPDU
Product Model	SPFAN104-1025
Product Name	PowerIT rPDU SPFAN104-1025 10-Outlets PDU
Marketing Information	Metered surge protected rPDUs deliver reliable power to critical IT equipment within a rack or cabinet and comes equipped with built-in surge protection and a local power meter displaying real-time power metrics. Benefits Ideal for environments lacking facility-level surge suppression or for applications requiring additional protection. Avoid accidental overloads when deploying or moving critical server equipment with instant access to power consumption metrics on the local digital display. The local LED display provides real-time power data for instant feedback when deploying or moving critical IT equipment. Every unit is 100% tested for reliability and functionality. Simple and convenient configuration options for cord lengths and chassis colors
Product Type	PDU

Technical Information

PDU Type	Metered
Plug/Connector Type	NEMA 5-20P
Plug/Connector Detail	1 x NEMA 5-20P
Receptacle Type	NEMA 5-20R
Receptacle Detail	10 x NEMA 5-20R
Protection Type	Surge Protection Overcurrent Protection
Features	LED Status Indicator
Load Capacity (Watt)	1900 W

Power Description

Input Voltage	120 V AC
Input Voltage Range	100 V AC - 120 V AC
Output Voltage	120 V AC
Input Current	20 A
Input Frequency	60 Hz

Physical Characteristics

Color Family	Black
Product Color	Black Powder Coat
Product Material	Steel
Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Form Factor	Rack
Cord Length	10 ft
Height	1.7"
Width	17"
Depth	4.5"

Environmental Conditions

Minimum Operating Temperature	50°F (10°C)
Maximum Operating Temperature	113°F (45°C)

Miscellaneous

Application/Usage	IT Equipment Server Rack/Cabinet
Country of Origin	United States
TAA Compliant	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
UL Listed	Yes

Warranty

Limited Warranty

5 Year
