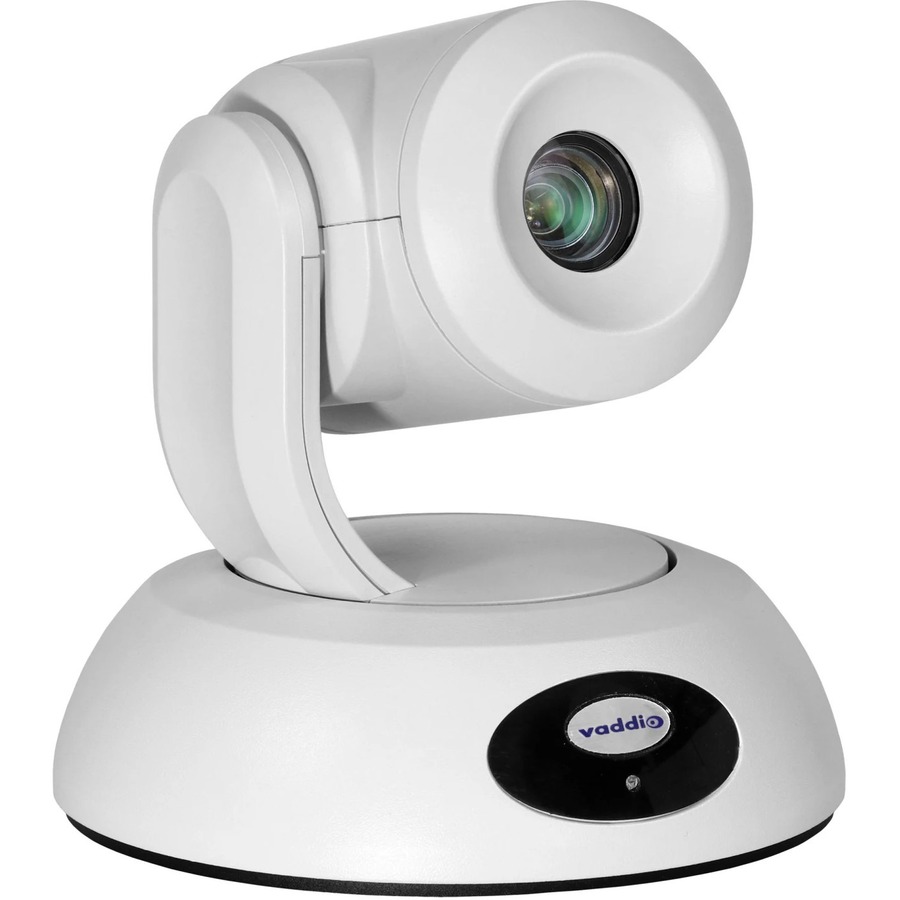

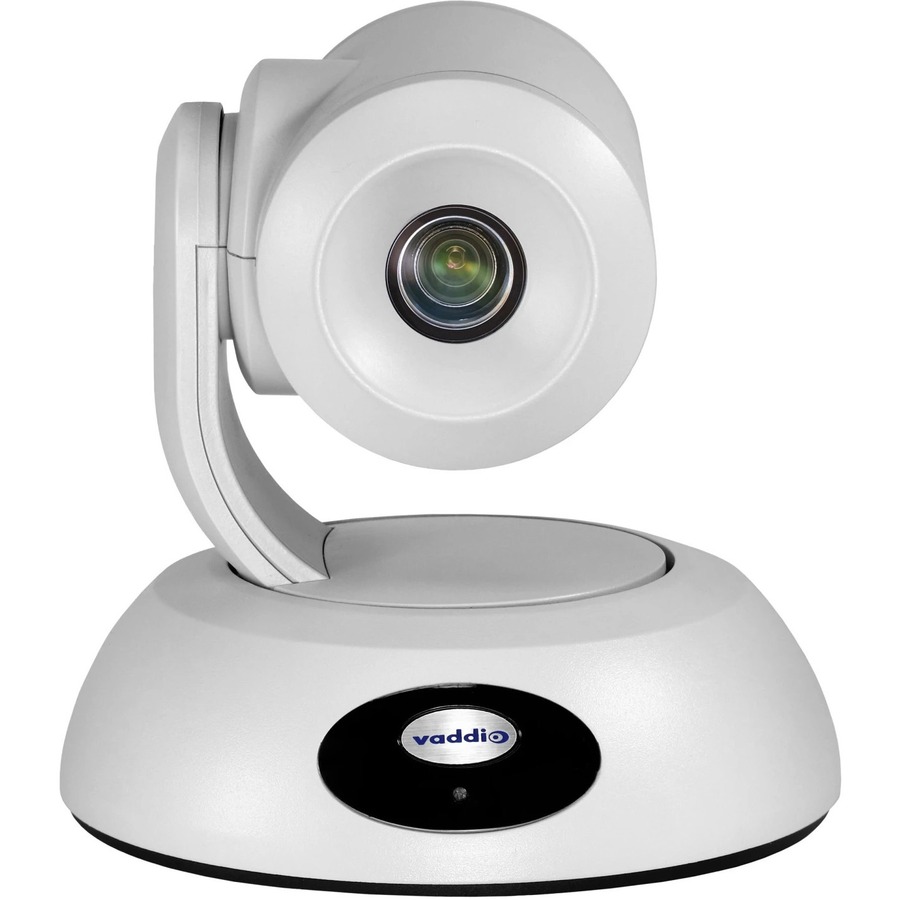

Vaddio EasyIP 20x Optical Zoom PTZ Camera - White

Name: Vaddio EasyIP 20x Optical Zoom PTZ Camera - White
Brand: VADDIO
SKU: 09LR80
Price: 3489.3 USD
Availability: InStock

VADDIO

PCN#

09LR80

MFG#

999-30230-000W

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$3,489.30

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

1920 x 1080
4.40 mm
20x Optical
Exmor R CMOS
HDMI

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 12 lbs.

Vaddio EasyIP 20x Zoom PTZ Camera - White

Overview

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	999-30230-000W
Manufacturer Website Address	http://www.legrand.us
Brand Name	Vaddio
Product Line	EasyIP
Product Name	EasyIP 20 Camera
Marketing Information	The EasyIP 20 Camera brings professional AV quality performance to the EasyIP Ecosystem, an AV-over-IP solution for lecture capture, remote learning and videoconferencing in large meeting rooms, lecture halls, and houses of worship. It delivers 1080p/60 resolution feeds to EasyIP endpoints and connects to a 1 GB PoE+ switch - eliminating the need for costly USB extensions. A local HDMI output allows for easy IMAG (image magnification). The system works on an IP-based infrastructure, sending video and control signals over the LAN using IP switching and configuration protocols. By offloading the extension and switching to a PoE switch, total cost of the system is reduced, providing a simple, more affordable alternative to traditional extension systems. The EasyIP solution eliminates the need for more expensive video switchers, controllers, extension systems and dedicated processing devices. The EasyIP 20 Camera, sends 1080p/60 resolution feeds to the EasyIP Ecosystem for delivery to web-based streaming and conferencing solutions and connects to a 1 Gb PoE+ switch - eliminating the need for costly USB extensions. IMPORTANT: This camera requires a PoE+ power source to operate (not included). Consider the EasyIP 20 Base Kit 999-30232-000 which includes the Luxul AMS-1208P-EasyIP Switch, EasyIP 20 Camera and EasyIP Decoder. Designed with an 1/2.5-type Exmor R CMOS sensor, the EasyIP 20 camera delivers striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions. Enhanced Wide Dynamic Range The EasyIP 20 camera is equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed. Remote Management A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. Perfect for remote management, network operating centers and overall IT control. Smooth Tri-Synchronous Motion The EasyIP 20 camera is equipped with Vaddio's industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion. Flexible Video Outputs Video outputs include simultaneous EasyIP (Network PoE+) and local HDMI video output.
Packaged Quantity	1
Product Type	Network Camera

Technical Information

Recording Formats	HD
HD Recording	Yes

Display & Graphics

Image Sensor Type	Exmor R CMOS
Field of View	70.2º wide end to 4.1º tele end
Effective Camera Resolution	8.5 Megapixel

Video

Maximum Video Resolution

1920 x 1080

Lens

Minimum Focal Length	4.40 mm
Maximum Focal Length	88.40 mm
Minimum Aperture	f/2
Maximum Aperture	f/3.8
Optical Zoom	20x

Exposure

Shortest Shutter Speed	1/10000 Second
Longest Shutter Speed	1/1 Second

Network & Communication

Connectivity Technology	Wired
Remote Management	Yes

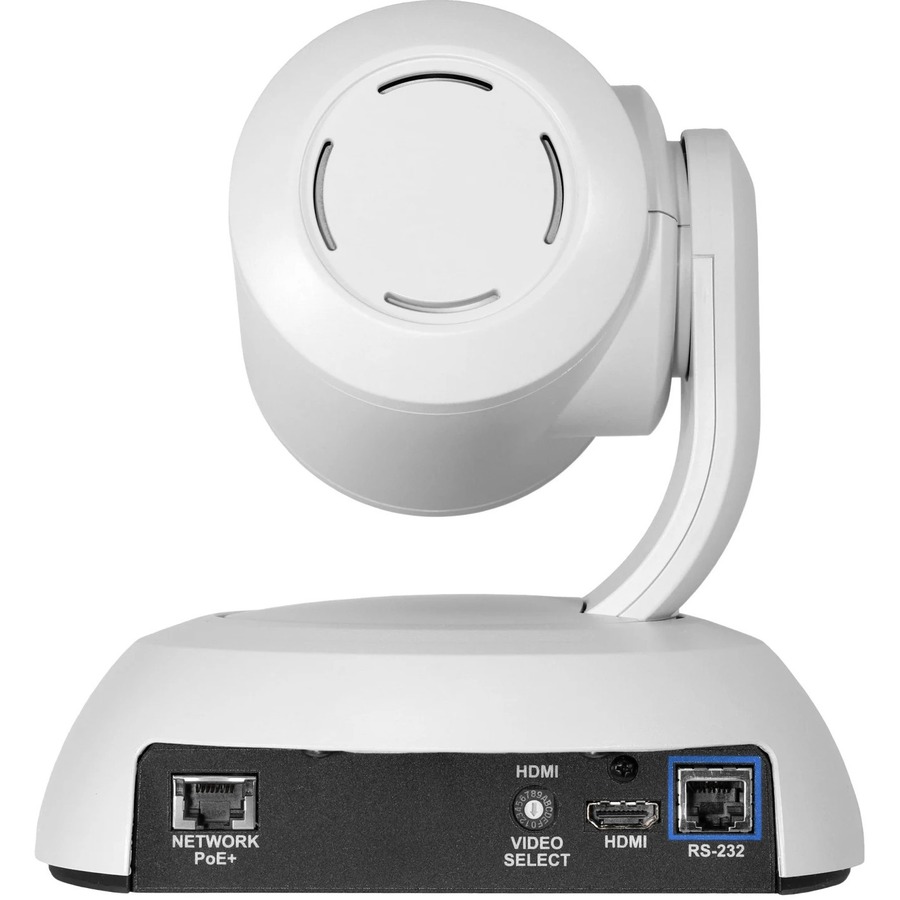

Interfaces/Ports

HDMI	Yes
Network (RJ-45)	Yes

Physical Characteristics

Color Family	White
Product Color	White
Height	6.9"
Width	7.1"
Depth	6.8"
Weight (Approximate)	4.85 lb

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Maximum Operating Humidity	80%

Miscellaneous

Features	PTZ Noise Reduction

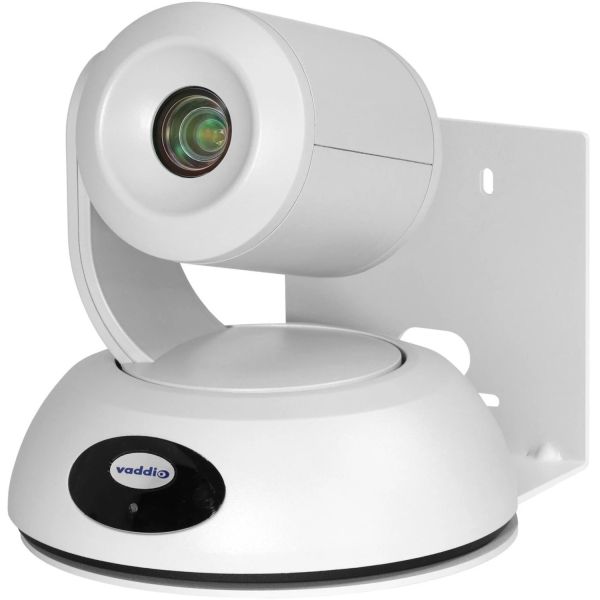

Package Contents	EasyIP 20 Camera 1 x Quick-Start Guide 1 x Thin Profile Wall Mount (white) with mounting hardware and installation manual 1 x Vaddio IR Remote Commander 10 ft (3.05m) cat-5e snagless cable, black
TAA Compliant	Yes

Warranty

Limited Warranty

2 Year
