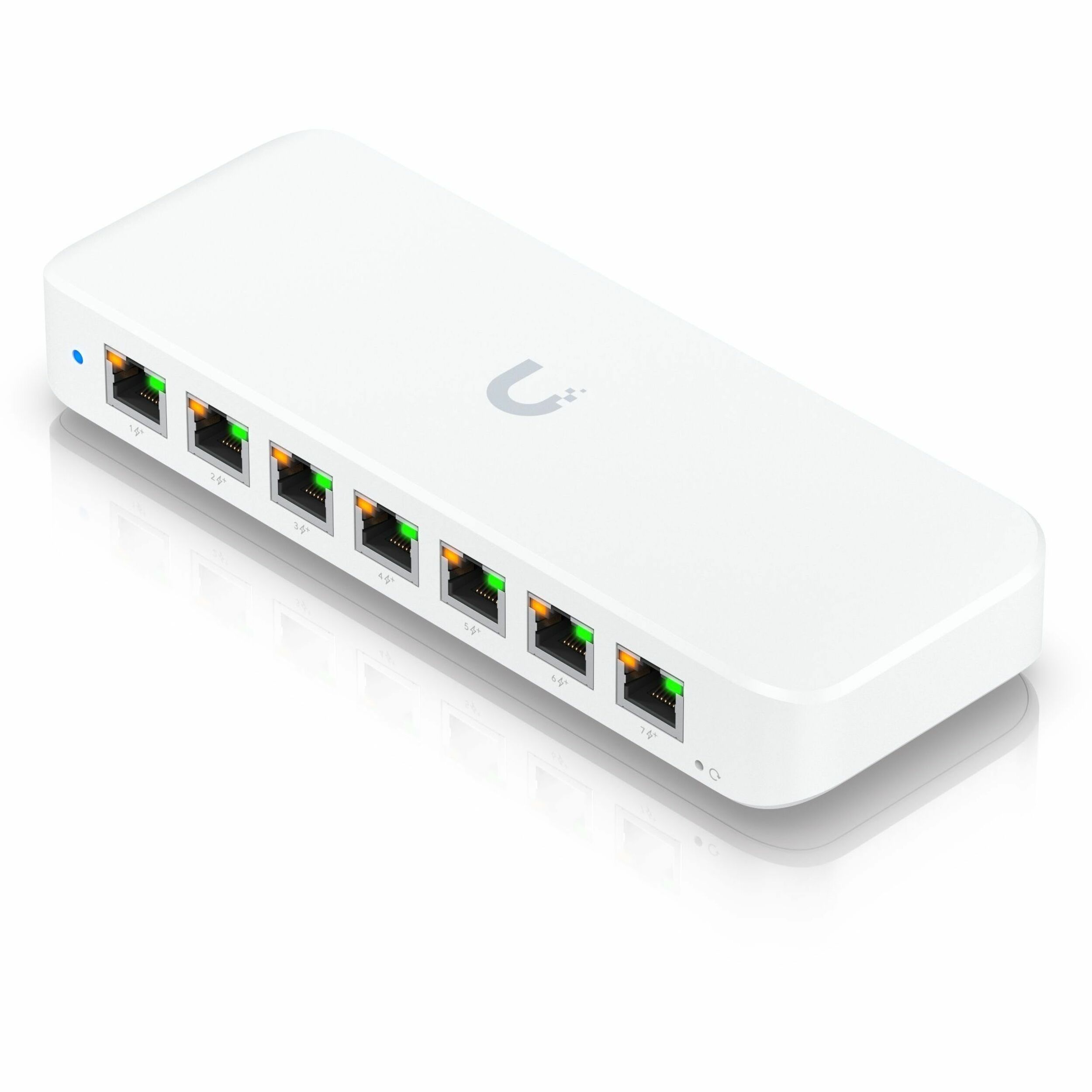

A COMPACT LAYER 2 8PORT GBE POE SW W/ VERSATILE MOUNTING OPTIONS

Name: A COMPACT LAYER 2 8PORT GBE POE SW W/ VERSATILE MOUNTING OPTIONS
Brand: UBIQUITI
SKU: JR7942
Price: 139.08 USD
Availability: InStock

UBIQUITI

PCN#

JR7942

MFG#

USW-ULTRA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$139.08

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 Ports
Manageable
Gigabit Ethernet
10/100/1000Base
T
3 Layer Supported
210 W Power Consumption
42 W PoE Budget
Twisted Pair
PoE Ports
Desktop, Wall Mountable, Compact, Magnetic Mount

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

8 Ports - Manageable - Gigabit Ethernet - 1000Base-T - 2 Layer Supported - 9 W Power Consumption - 42 W PoE Budget - Twisted Pair - PoE Ports - Wall Mountable

Overview

Tech Specs

Specifications

Manufacturer	Ubiquiti Inc.
Manufacturer Part Number	USW-Ultra
Manufacturer Website Address	http://www.ui.com
Brand Name	Ubiquiti
Product Line	Ultra
Product Model	USW-Ultra
Product Name	USW-Ultra Ethernet Switch
Product Type	Ethernet Switch

Technical Information

Features

Flow Control
Port Mirroring
Virtual LAN (VLAN)
Loop Protection
Reset Button
LED Indicator

Interfaces/Ports

Total Number of Network Ports	8
Network (RJ-45)	Yes
Port/Expansion Slot Details	7 x Gigabit Ethernet PoE+ 1 x Gigabit Ethernet PoE++

Media & Performance

Media Type Supported	Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T
Maximum Data Transfer Rate	128 MB/s

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.1x

Management & Protocols

Manageable

Yes

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	42 W
Input Voltage	50 V DC 57 V DC
Power Source	AC/DC PoE++
Power Consumption	210 W

Physical Characteristics

Product Material	Polycarbonate
Form Factor	Desktop Wall Mountable Compact Magnetic Mount
Height	1.3"
Width	8"
Depth	3"
Weight (Approximate)	705.48 lb

Miscellaneous

Application/Usage	Network Wireless Access Point Security Camera
Additional Information	Switching Capacity: 16 Gbps Total Non-Blocking Throughput: 8 Gbps Forwarding Rate: 12 Mpps Supported VLANs: 256 MAC Address Table Size: 4,000 Management: Ethernet Heat Dissipation: 15 BTU/hr (Excluding PoE Output) Ambient Operating Temperature: PoE++ input: -30 to 60° C (-22 to 140° F), 60W AC adapter input: -20 to 45° C (-4 to 113° F), 210W AC adapter input: -20 to 60° C (-4 to 140° F) Ambient Operating Humidity: 10 to 90% noncondensing NDAA Compliant: Yes STP & RSTP: Yes Egress Rate Limit: Yes Storm Control: Yes Multicast & Broadcast Rate Limiting: Yes Port Isolation: Yes Jumbo Frames: Yes
Certifications & Standards	CE FCC IC Anatel: 06367-24-08356
