Ubiquiti USW-Pro-48-PoE Layer 3 Switch

Name: Ubiquiti USW-Pro-48-PoE Layer 3 Switch
Brand: UBIQUITI
SKU: 7AY304
Price: 1108.5 USD
Availability: InStock

UBIQUITI

PCN#

7AY304

MFG#

USW-PRO-48-POE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,108.50

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

48.0 Ports
Manageable
3 Layer Supported
Modular
60 W Power Consumption
600 W PoE Budget
Optical Fiber, Twisted Pair
PoE Ports
1U High
Rack
mountable
1 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 17 lbs.

Ubiquiti USW-Pro-48-PoE Layer 3 Switch

Overview

Tech Specs

Specifications

Manufacturer	Ubiquiti Inc.
Manufacturer Part Number	USW-PRO-48-POE
Manufacturer Website Address	http://www.ui.com
Brand Name	Ubiquiti
Product Line	UniFi Pro PoE
Product Model	USW-Pro-48-PoE
Product Name	USW-Pro-48-PoE Layer 3 Switch
Marketing Information	Expand and power your network with the UniFi® Pro PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models: USW-Pro-24-PoE 24 RJ45 ports with 2 SFP+ ports USW-Pro-48-PoE 48 RJ45 ports with 4 SFP+ ports Layer 3 Features In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality. Near-Silent Cooling The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience. Fiber Connectivity SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch. 802.3bt PoE++ PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high-power PoE devices. Remaining ports offer 802.3af/at PoE. Redundant Power Option The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.
Product Type	Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports	48.0
Uplink Port	Yes
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	40 x Gigabit Ethernet PoE+ 8 x Gigabit Ethernet PoE++ 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Ethernet Technology	Gigabit Ethernet 10 Gigabit Ethernet
Network Technology	10/100/1000Base-T 10GBase-X

I/O Expansions

Total Number of Expansion Slots	4.0
Expansion Slot Type	SFP+
Number of SFP+ Slots	4

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.3af IEEE 802.3at IEEE 802.3bt

Management & Protocols

Manageable

Yes

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	600 W
Input Voltage	120 V AC 230 V AC
Frequency	50 Hz 60 Hz
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Power Consumption	60 W

Physical Characteristics

Product Material	Galvanized Cold Rolled Steel (SGCC)
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7"
Width	17.4"
Depth	15.7"
Weight (Approximate)	13.78 lb

Miscellaneous

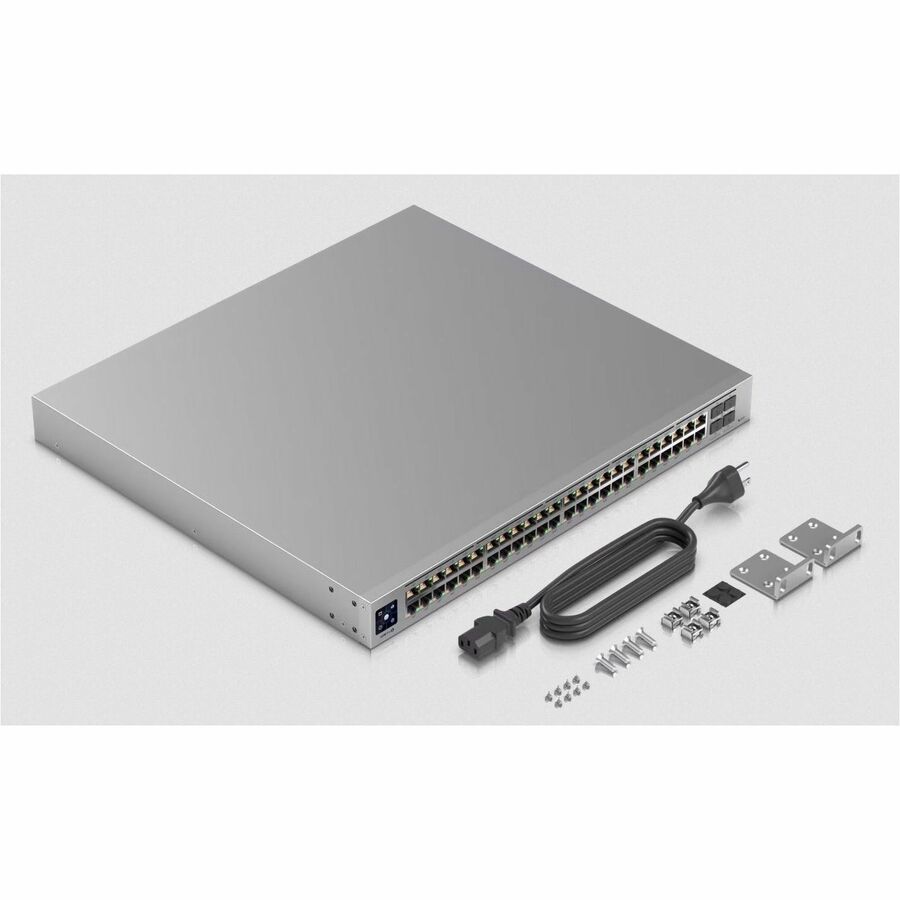

Package Contents	USW-Pro-48-PoE Layer 3 Switch Rack Mount Hardware
Application/Usage	Network
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

1 Year
