Ubiquiti USW-Pro-24-POE Layer 3 Switch

Name: Ubiquiti USW-Pro-24-POE Layer 3 Switch
Brand: UBIQUITI
SKU: 7AY307
Price: 717.53 USD
Availability: InStock

UBIQUITI

PCN#

7AY307

MFG#

USW-PRO-24-POE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$717.53

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

24 Ports
Manageable
3 Layer Supported
Modular
50 W Power Consumption
400 W PoE Budget
Optical Fiber, Twisted Pair
1U High
Rack
mountable
1 Year Limited Warranty

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 13 lbs.

Ubiquiti USW-Pro-24-POE Layer 3 Switch

Overview

Tech Specs

Specifications

Manufacturer	Ubiquiti Inc.
Manufacturer Part Number	USW-PRO-24-POE
Manufacturer Website Address	http://www.ui.com
Brand Name	Ubiquiti
Product Model	USW-Pro-24-POE
Product Name	USW-Pro-24-POE Layer 3 Switch
Marketing Information	Expand and power your network with the UniFi® Pro PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models: USW-Pro-24-PoE 24 RJ45 ports with 2 SFP+ ports USW-Pro-48-PoE 48 RJ45 ports with 4 SFP+ ports Layer 3 Features In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality. Near-Silent Cooling The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience. Fiber Connectivity SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch. 802.3bt PoE++ PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high-power PoE devices. Remaining ports offer 802.3af/at PoE. Redundant Power Option The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.
Product Type	Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports	24
Uplink Port	Yes
Modular	Yes
Port/Expansion Slot Details	16 x Gigabit Ethernet PoE+ 8 x Gigabit Ethernet PoE++ 2 x 10 Gigabit Ethernet Uplink

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Ethernet Technology	Gigabit Ethernet 10 Gigabit Ethernet
Network Technology	10/100/1000Base-T 10GBase-X

I/O Expansions

Number of Total Expansion Slots	2
Expansion Slot Type	SFP+
Number of SFP+ Slots	2

Network & Communication

Layer Supported

Management & Protocols

Manageable

Yes

Power Description

PoE Budget	400 W
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Power Consumption	50 W

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7"
Width	17.4"
Depth	11.2"
Weight (Approximate)	9.48 lb

Miscellaneous

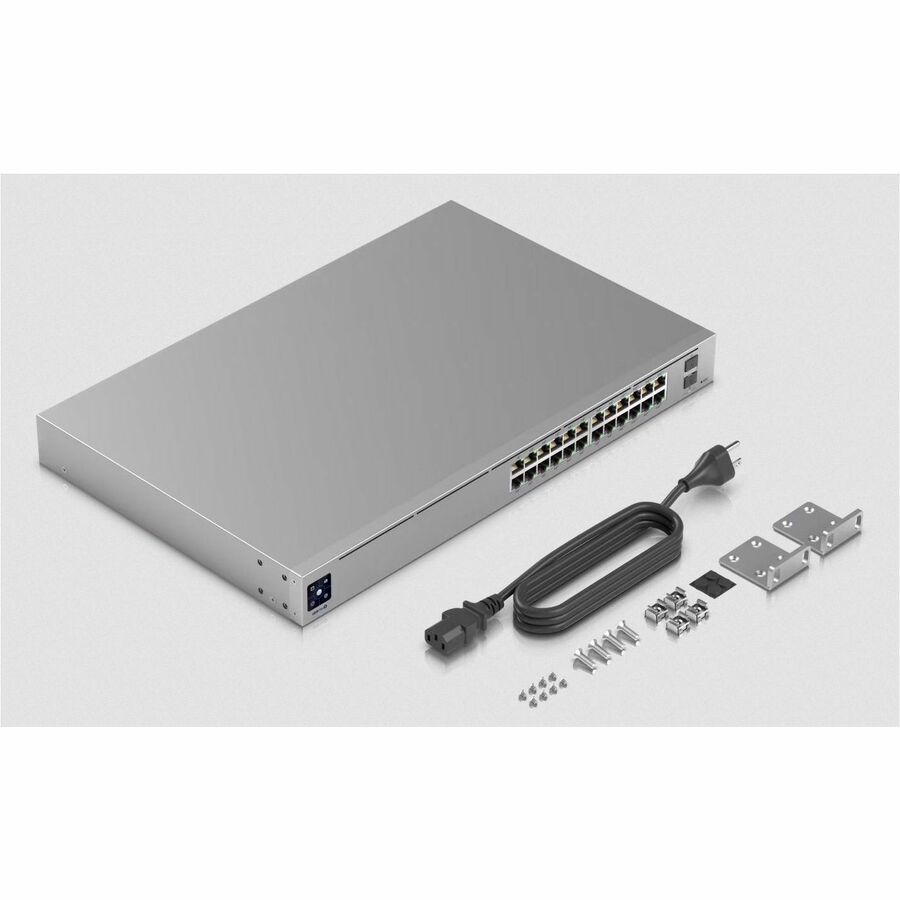

Package Contents	USW-Pro-24-POE Layer 3 Switch Rack Mount Hardware
Environmentally Friendly	Yes
Environmental Certification	WEEE

Warranty

Limited Warranty

1 Year
