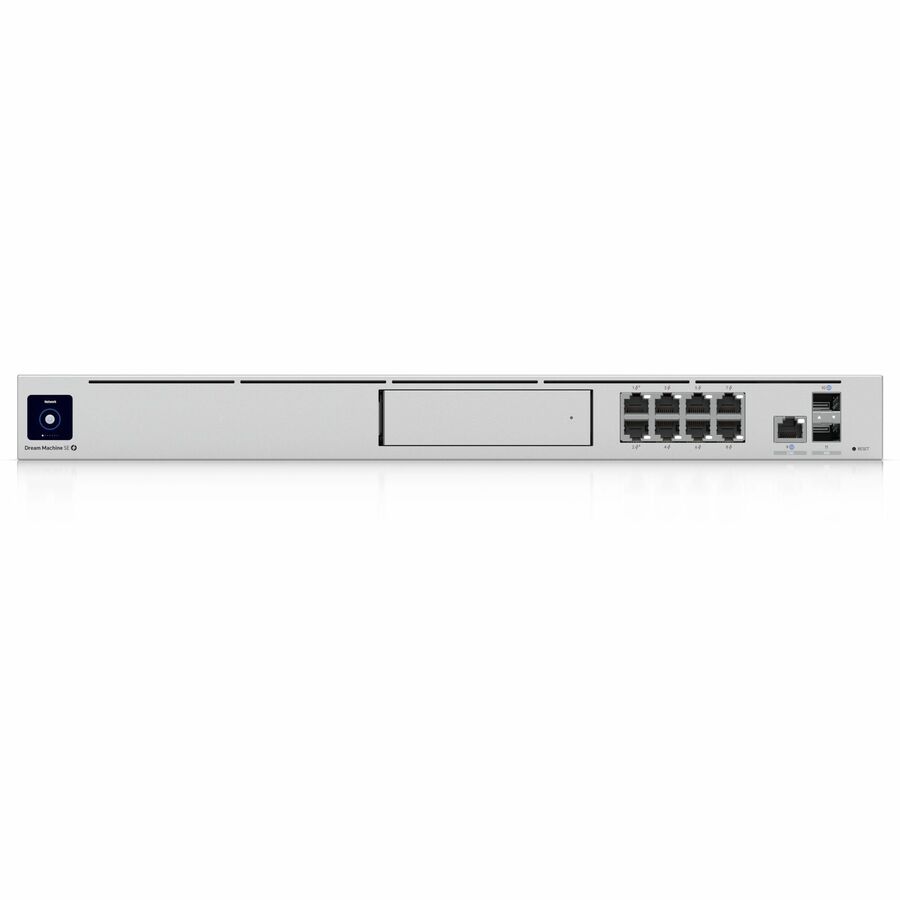

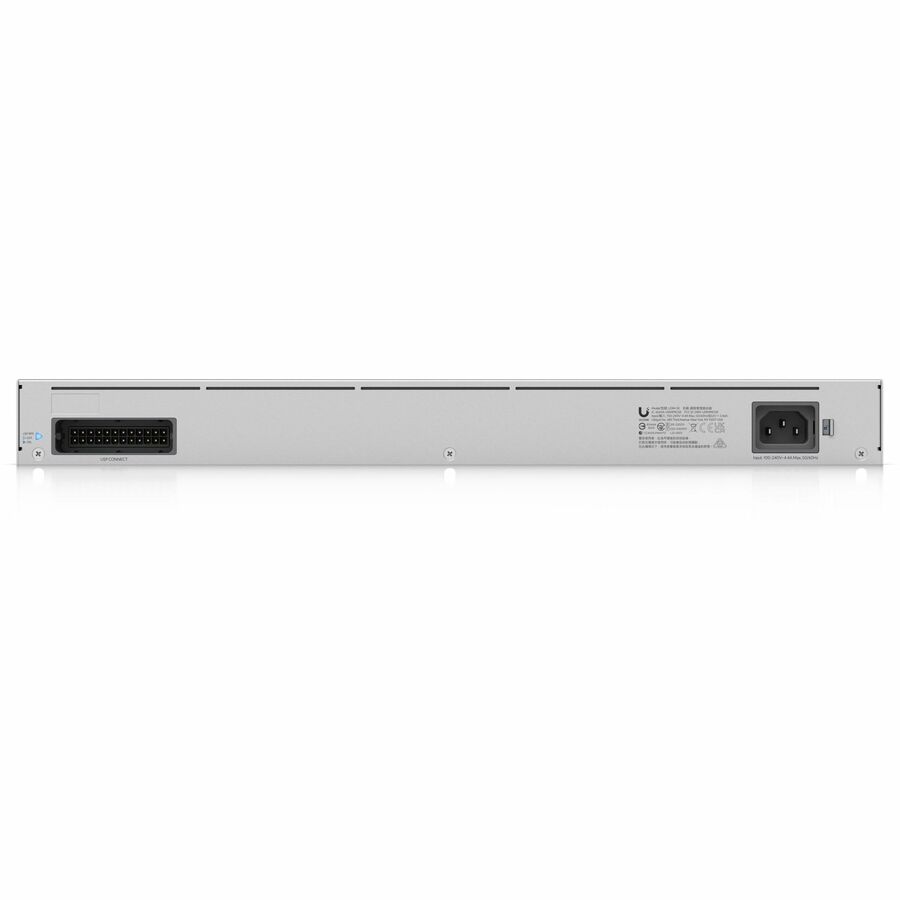

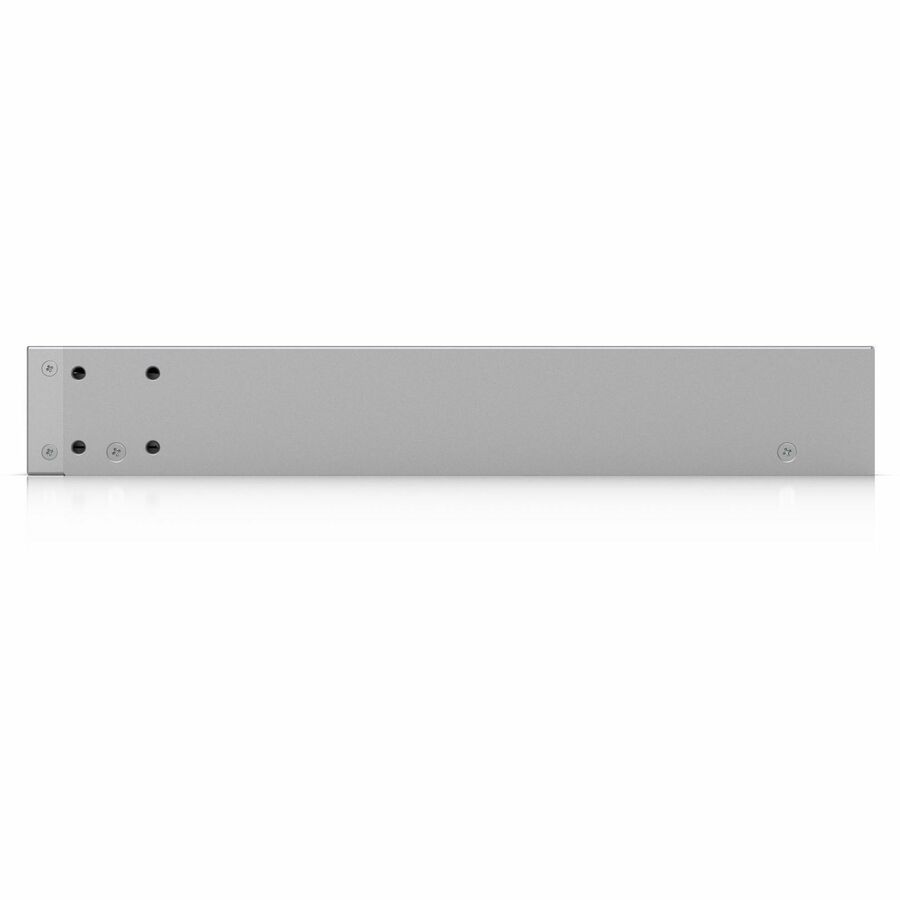

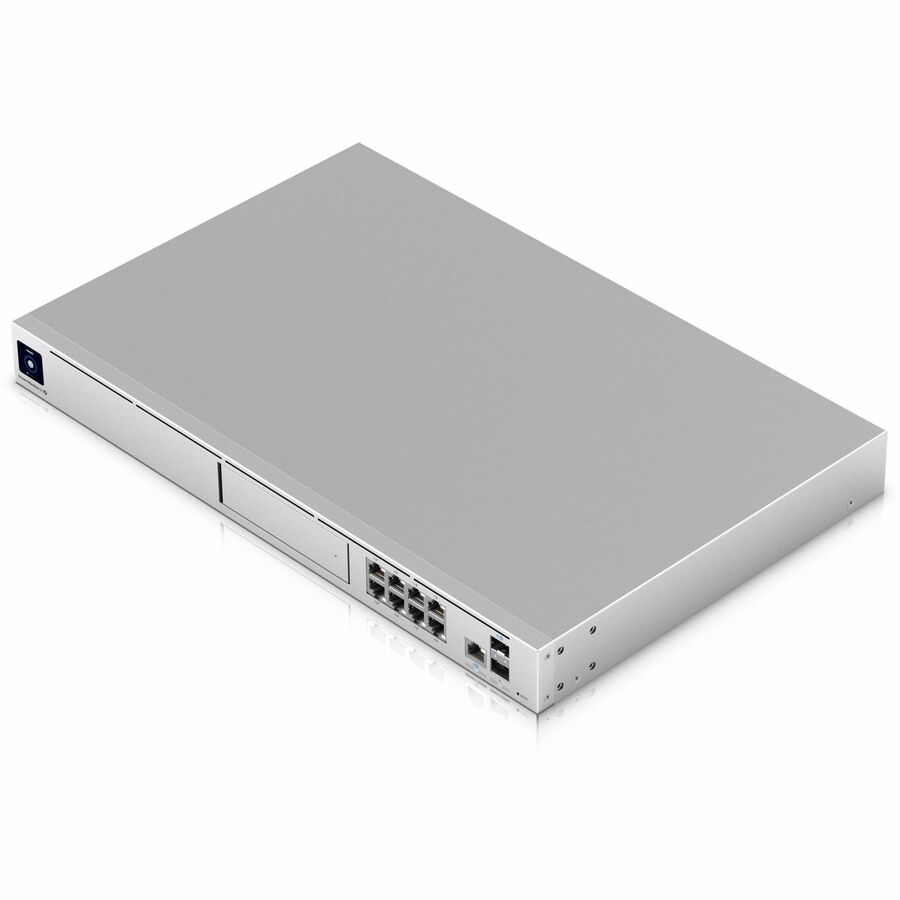

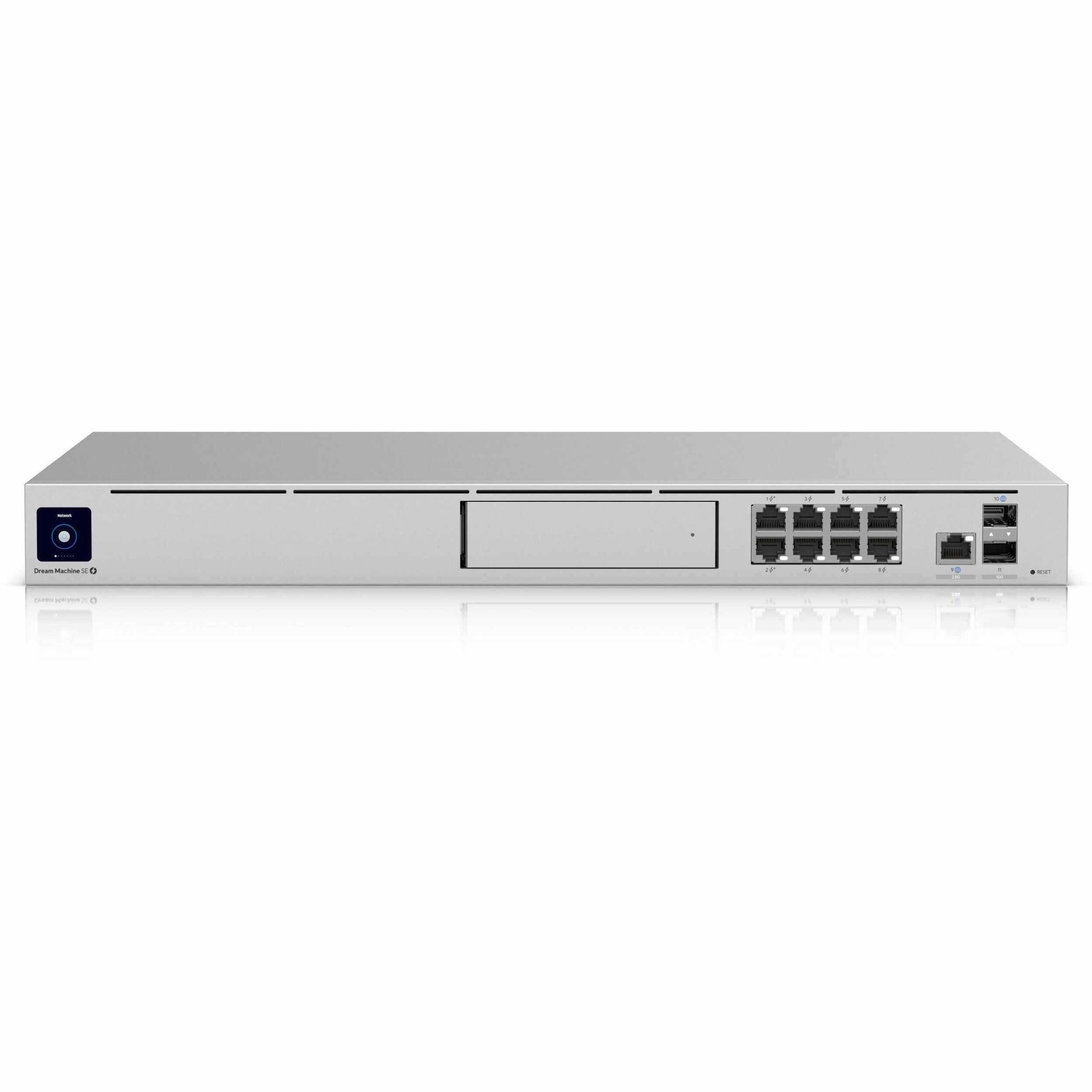

Ubiquiti Dream Machine Special Edition UDM-SE Router

Name: Ubiquiti Dream Machine Special Edition UDM-SE Router
Brand: UBIQUITI
SKU: 09VL92
Price: 526.42 USD
Availability: InStock

UBIQUITI

PCN#

09VL92

MFG#

UDM-SE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$526.42

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

9 Ports
8 RJ
45 Port(s)
1 WAN Port(s)
PoE Ports
Management Port
2.0 SFP+ Slots
4 GB
10 Gigabit Ethernet
IEEE 802.3af, IEEE 802.3at
Rack
mountable

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Ubiquiti Dream Machine Special Edition UDM-SE Router

Overview

Tech Specs

Specifications

Manufacturer	Ubiquiti Inc.
Manufacturer Part Number	UDMSE
Manufacturer Website Address	http://www.ui.com
Brand Name	Ubiquiti
Product Line	Dream Machine Special Edition
Product Model	UDM-SE
Product Name	Dream Machine Special Edition UDM-SE Router
Marketing Information	Enterprise-grade, rack-mount UniFi Cloud Gateway with full UniFi application support, 10 Gbps performance, and an integrated PoE switch. Includes full UniFi application suite for device management 3.5+ Gbps routing Integrated 8-port PoE/PoE+ switch (1) 10G SFP+, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE (1) 10G SFP+, (1) 2.5 GbE RJ45 WAN ports 1.3" touchscreen 128 GB SSD & 3.5" HDD bay
Product Type	Router

Interfaces/Ports

Total Number of Ports	9
Management Port	Yes
Number of Network (RJ-45) Ports	8
Number of WAN Ports	1

I/O Expansions

Total Number of Expansion Slots	2.0
Expansion Slot Type	SFP+

Network & Communication

Ethernet Technology	10 Gigabit Ethernet
Network Technology	10GBase-X 2.5GBase-T 1000Base-T
Networking Standards	IEEE 802.3af IEEE 802.3at

Memory

Standard Memory

4 GB

Power Description

PoE (RJ-45) Port	Yes
Power Consumption	50 W
Power Source	AC/DC

Physical Characteristics

Form Factor	Rack-mountable
Height	1.7"
Width	17.4"
Depth	11.2"
Weight (Approximate)	10.91 lb

Miscellaneous

Additional Information

Mechanical

Enclosure materials : Aluminium CNC, SGCC steel
Mount material : SGCC steel

Hardware

Processor : Quad-core ARM® Cortex®-A57 at 1.7 GHz
System memory : 4 GB DDR4
On-board storage : 16 GB eMMC Integrated 128 GB SSD
Management interface :

Ethernet
Bluetooth

Networking interface :

(8) LAN: GbE RJ45 ports
(1) WAN: 2.5 GbE RJ45 port

SFP+ interface :

(1) LAN: 10G SFP+
(1) WAN: 10G SFP+

PoE interface :

(6) PoE (Pair A 1, 2+; 3, 6-)
(2) PoE+ (Pair A 1, 2+; 3, 6-)

IDS/IPS throughput : 3.5 Gbps* : *Measured with iPerf3
Power method :

(1) Universal AC input, 100-240V AC, 4.4A Max., 50/60 Hz
(1) USP-RPS DC input, 52V DC, 3.94A

Power supply : AC/DC, internal, 240W
Supported voltage range : 100-240V AC
Max. power consumption : 50W (Excluding PoE output)
Max. PoE wattage per port by PSE :

PoE: 15.4W
PoE+: 30W

Voltage range PoE mode :

PoE: 44-57V
PoE+: 50-57V

ESD/EMP protection : Air: ± 15kV, contact: ± 8kV
LCM display : (1) 1.3" touchscreen
Button : Factory reset
Operating temperature : -10 to 40° C (14 to 104° F)
Operating humidity : 5 to 95% noncondensing
Certifications : CE, FCC, IC
