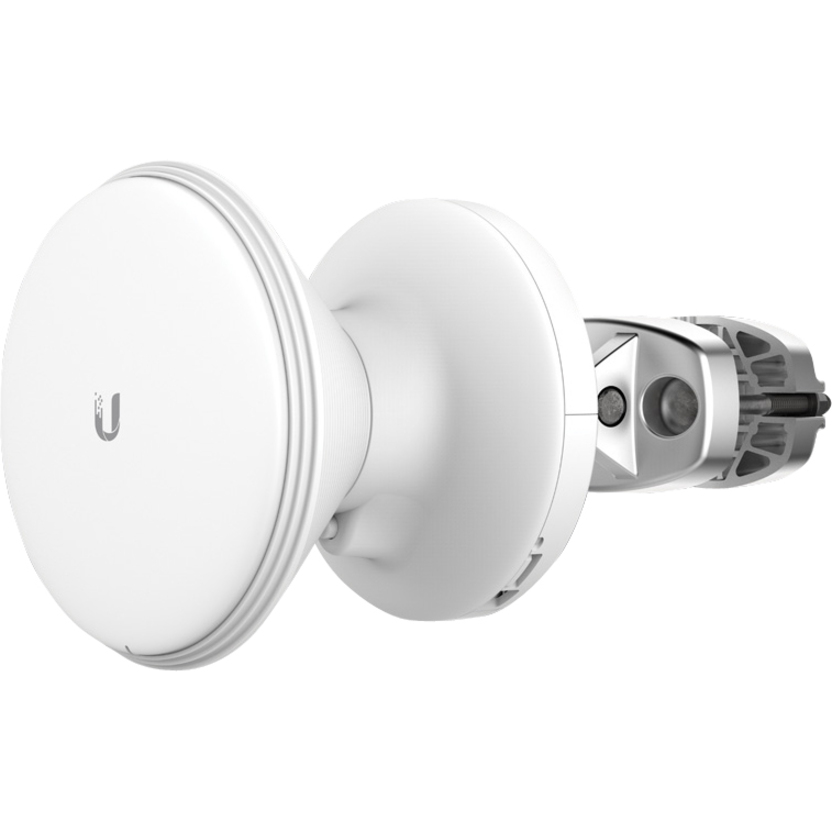

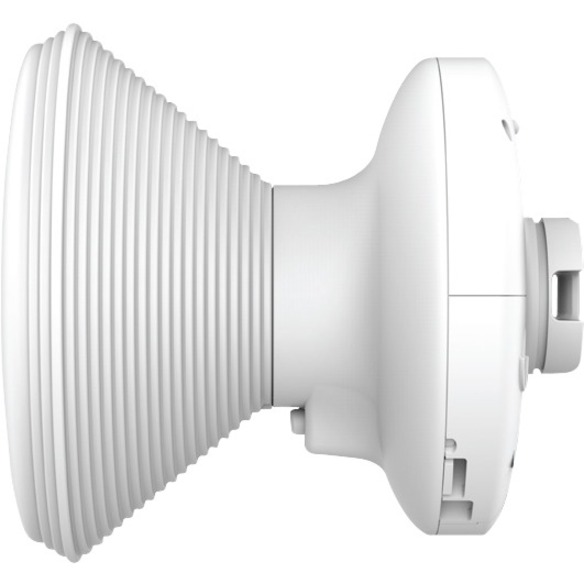

Ubiquiti PrismStation AC PS-5AC IEEE 802.11ac 450 Mbit/s Wireless Bridge

Shielded airMAX^® ac BaseStation with airPrism^® Technology

With a die-cast aluminum base and interchangeable antenna, the PrismStation^TM AC, brings increased performance to your network using technology that isolates beam communications between your devices. Utilizing Ubiquiti's advanced airMAX^® ac processor, the PrismStation^TM delivers throughput speeds up to 500+ Mbps and signal ranges up to 5+ km (3+ miles).

Built to Fight Noise With Prism Active RF Filter

The Ubiquiti R&D team designed airPrism filtering as a robust solution for tower co-location interference. Requiring no communication between radios - and functioning despite noise from other vendors' radios (unlike GPS synchronization) - airPrism enables greater system capacity and overall throughput by further reducing out-of-band energy.

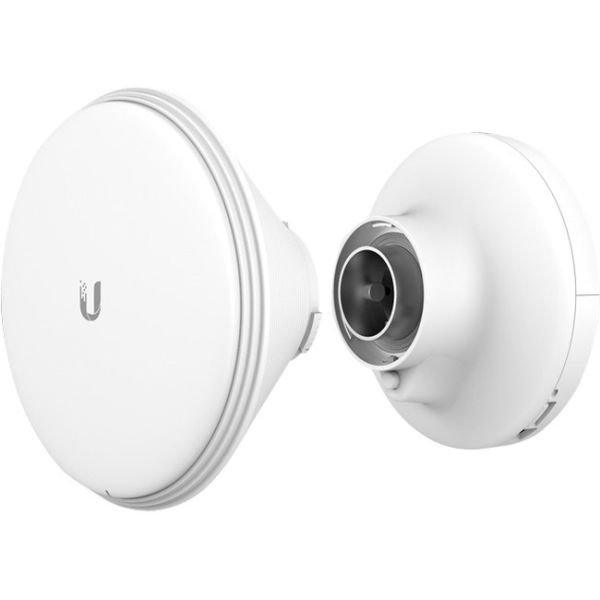

Modular Design

The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The PrismStation^TM AC also gets maximum gain out of the smallest footprint.

Beam Performance Perfected

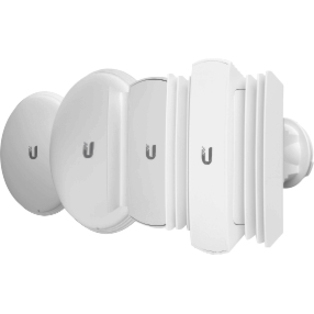

The PrismStation^TM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.

GPS Synchronization

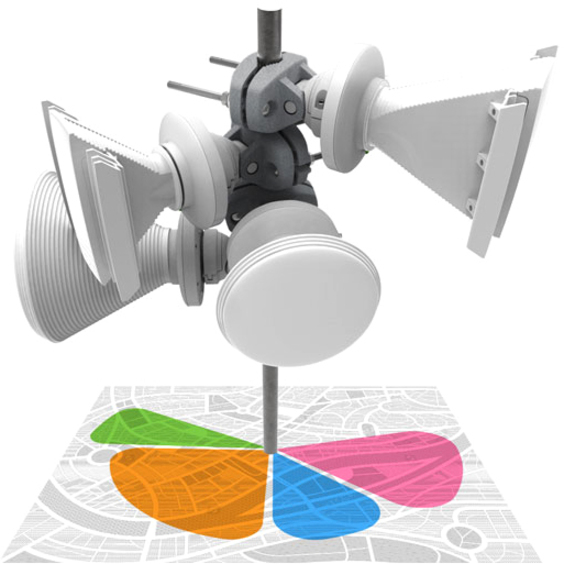

Enhanced Co-Location

Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.

Improved Noise Immunity

PrismStation^TM AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

• PrismStation PS-5AC Wireless Bridge
• 24V, 1A Gigabit PoE Adapter
• Pole-Mount Kit
