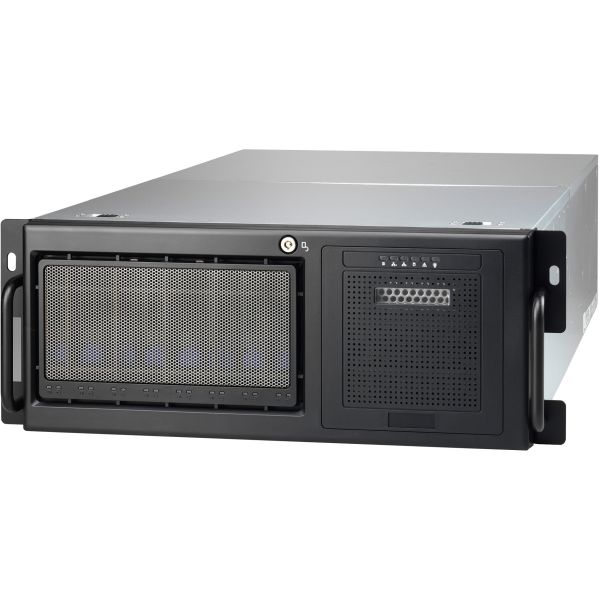

Tyan FT48B8812 Barebone System - 4U Rack-mountable - Socket G34 LGA-1944 - 4 x Processor Support

Name: Tyan FT48B8812 Barebone System - 4U Rack-mountable - Socket G34 LGA-1944 - 4 x Processor Support
Brand: TYAN COMPUTER
SKU: 7240AY
Price: 2280.36 USD
Availability: InStock

TYAN COMPUTER

PCN#

7240AY

MFG#

B8812F48W8HR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,280.36

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Estimated Shipment:

Product Highlights:

AMD SR5690 Chip
512 GB DDR3 SDRAM DDR3
1333/PC3
10600 Maximum RAM Support
32.0 Total Memory Slots
Serial Attached SCSI (SAS) Controller
ASPEED AST2050 Graphic(s)
8 3.5" Bay(s)
Network (RJ
45)
Processor Support (Opteron)
770 W
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 110 lbs.

Tyan FT48B8812 Barebone System - 4U Rack-mountable - Socket G34 LGA-1944 - 4 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Tyan Computer Corp
Manufacturer Part Number	B8812F48W8HR
Manufacturer Website Address	http://www.tyan.com
Brand Name	Tyan
Product Series	FT48
Product Model	FT48B8812
Product Name	FT48B8812 Barebone System
Product Type	Barebone System

Processor

Number of Processors Supported	4
Processor Socket	Socket G34 LGA-1944
Processor Supported	Opteron
64-bit Processing	Yes

Chipset

Chipset Manufacturer	AMD
Chipset Model	SR5690

Memory

Maximum Memory Supported	512 GB
Memory Technology	DDR3 SDRAM
Memory Standard	DDR3-1333/PC3-10600
Total Number of Memory Slots	32.0

Controllers

Controller Type

Serial Attached SCSI (SAS)

Display & Graphics

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2050

Network & Communication

Ethernet Technology

Gigabit Ethernet

I/O Expansions

Number of External 5.25" Bays	3
Number of 3.5" Bays	8
Total Number of Expansion Slots	4.0
Number of PCI Express x8 Slots	3
Number of PCI Express x16 Slots	1

Interfaces/Ports

Total Number of USB Ports	4
Network (RJ-45)	Yes
VGA	Yes

Power Description

Input Voltage	110 V AC 220 V AC
Maximum Power Supply Wattage	770 W

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	4U
Height	6.9"
Width	16.8"
Depth	27.5"
Weight (Approximate)	110.23 lb

Miscellaneous

Package Contents	FT48B8812 Barebone System 4 x G34 CPU Heatsinks 1 x CRAL-0070, Sliding Rail Kit for KFT48 1 x CRBK-0021, Rack Mounting Handle Bracket, Right 1 x CRBK-0020, Rack Mounting Handle Bracket, Left 1 x User's Manual 1 x TYAN Installation CD 3 x CCBL-0310, US Type Power Cords 3 x CCBL-0300, EU Type Power Cords
Certifications & Standards	CE FCC Class A
Environmentally Friendly	Yes

Warranty

Limited Warranty

3 Year
