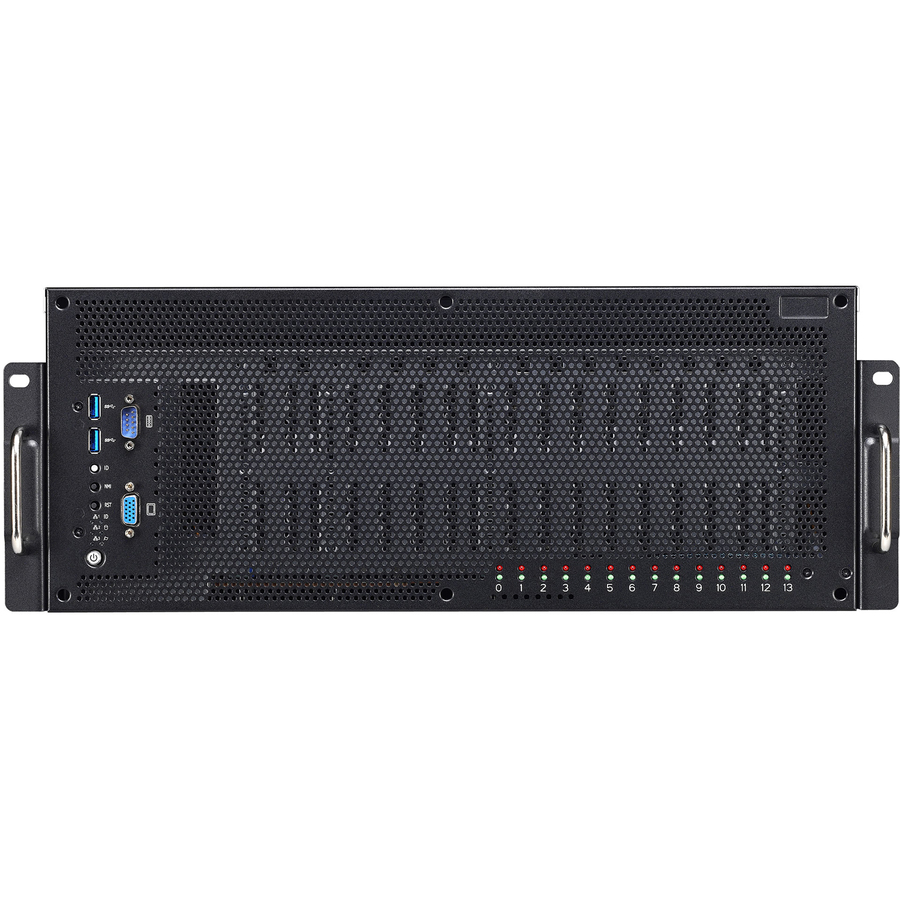

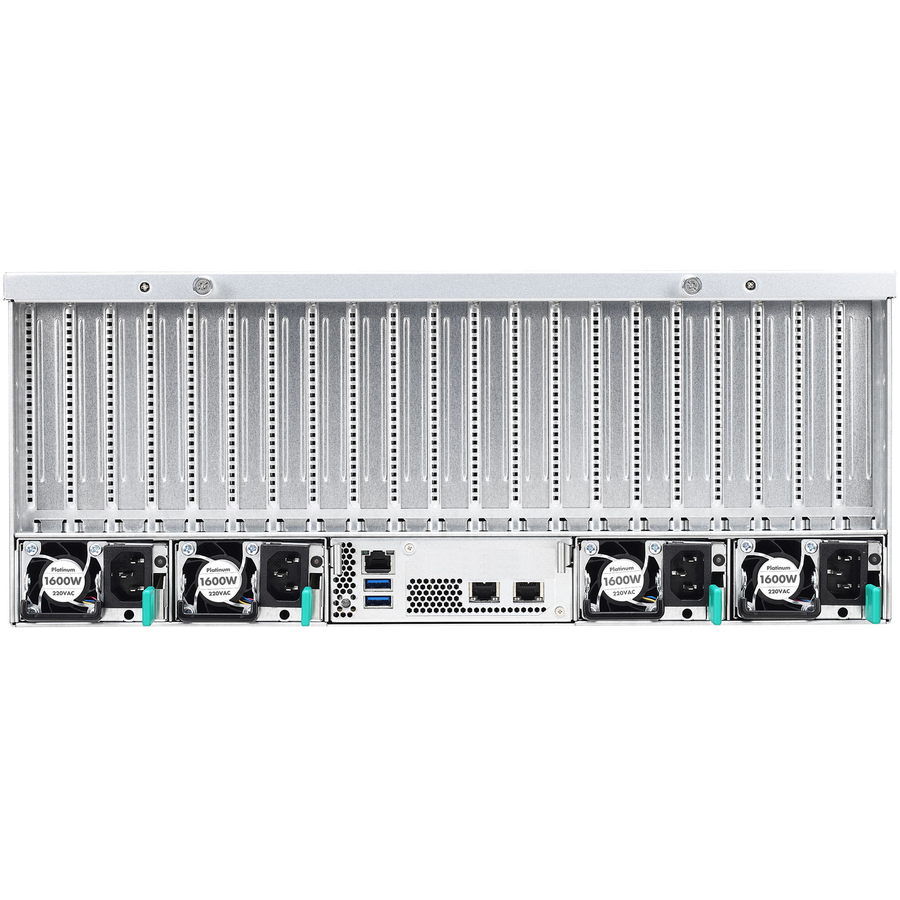

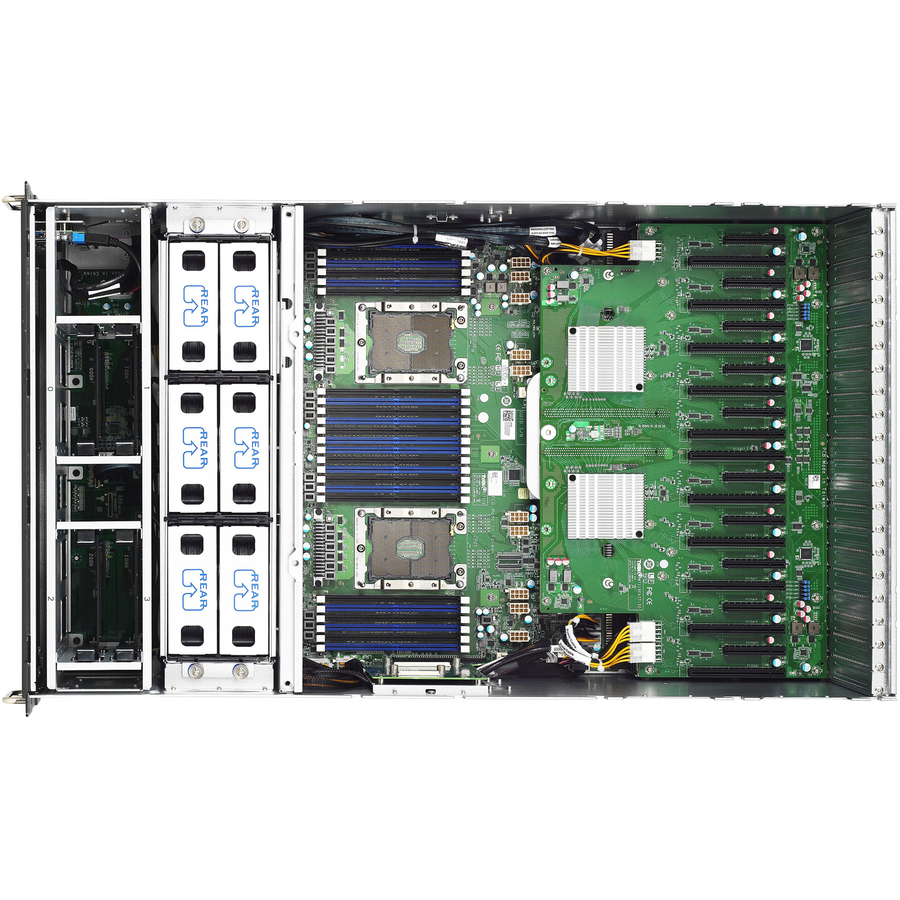

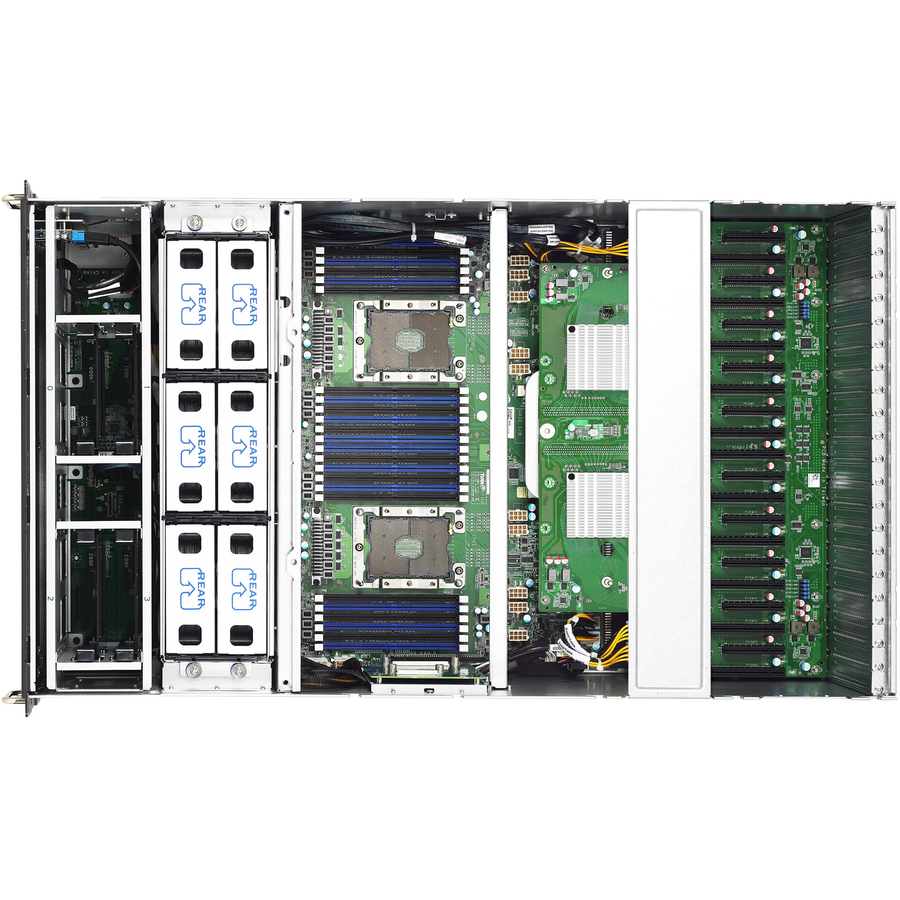

Tyan Thunder HX FA77-B7119 Barebone System - 4U Rack-mountable - Socket P LGA-3647 - 2 x Processor Support

Name: Tyan Thunder HX FA77-B7119 Barebone System - 4U Rack-mountable - Socket P LGA-3647 - 2 x Processor Support
Brand: TYAN COMPUTER
SKU: 7399AY
Price: 6063.38 USD
Availability: InStock

TYAN COMPUTER

PCN#

7399AY

MFG#

B7119F77V4HR-2T55-N

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$6,063.38

Extended & Accidental Damage Protection Plans Available Details

3-Year $493.99

2-Year $376.99

Estimated Shipment:

Product Highlights:

Intel C621 Chip
3 TB DDR4 SDRAM DDR4
2933/PC4
23466 Maximum RAM Support
24.0 Total Memory Slots
Serial ATA/600 RAID Supported, 12Gb/s SAS Controller
ASPEED AST2500 32 MB Graphic(s)
4 3.5" Bay(s)
Processor Support (Xeon Silver, Xeon Gold, Xeon Platinum, Xeon Bronze)
10 Gigabit Ethernet
Intel Optane Memory Ready
4 USB 3.0 Port(s)
4 x 4800 W
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 96 lbs.

Tyan Thunder HX FA77-B7119 Barebone System - 4U Rack-mountable - Socket P LGA-3647 - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Tyan Computer Corp
Manufacturer Part Number	B7119F77V4HR-2T55-N
Manufacturer Website Address	http://www.tyan.com
Brand Name	Tyan
Product Line	Thunder HX
Product Model	FA77-B7119
Product Name	Thunder HX FA77-B7119 10GPU Server Platform for Machine Learning
Packaged Quantity	1
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Socket	Socket P LGA-3647
Processor Supported	Xeon Silver Xeon Gold Xeon Platinum Xeon Bronze
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621

Memory

Maximum Memory Supported	3 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2933/PC4-23466
Total Number of Memory Slots	24.0
Intel Optane Memory Ready	Yes

Controllers

Controller Type	Serial ATA/600 12Gb/s SAS
RAID Supported	Yes

Display & Graphics

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2500
Graphics Memory Capacity	32 MB

Network & Communication

Ethernet Technology

10 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	4
Number of 3.5" Bays	4

Interfaces/Ports

Total Number of USB Ports	4
Number of USB 3.0 Ports	4

Operating System

Operating System Supported

Windows Server 2012 R2 Datacenter x64
Windows Server 2016
Red Hat Enterprise Linux 6.9 x64
Red Hat Enterprise linux 7.3 x64
Red Hat Enterprise linux 7.4 x64
Ubuntu 16.04 x64
Windows Server 2019 Standard x64
SUSE Linux Enterprise Server 12

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Installed	4
Maximum Power Supply Wattage	4800 W

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	4U
Height	6.9"
Width	17.2"
Depth	30.3"
Weight (Approximate)	60.63 lb

Miscellaneous

Package Contents	Thunder HX FA77-B7119 10GPU Server Platform for Machine Learning 1 x Quick Installation Guide 1 x TYAN Device Driver CD
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
