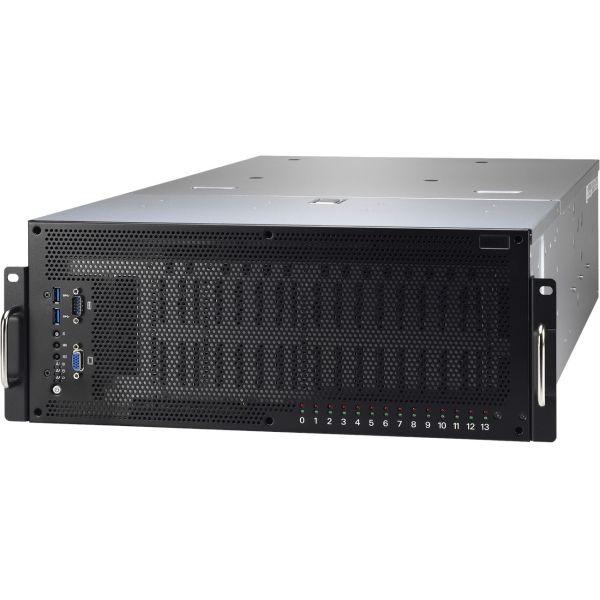

Tyan Thunder HX FT77DB7109 Barebone System - 4U Rack-mountable - Socket P LGA-3647 - 2 x Processor Support

Name: Tyan Thunder HX FT77DB7109 Barebone System - 4U Rack-mountable - Socket P LGA-3647 - 2 x Processor Support
Brand: TYAN COMPUTER
SKU: 7381AY
Price: 4634.67 USD
Availability: InStock

TYAN COMPUTER

PCN#

7381AY

MFG#

B7109F77DV10E4HR-2T-NF

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$4,634.67

Extended & Accidental Damage Protection Plans Available Details

2-Year $331.99

3-Year $446.99

Estimated Shipment:

Product Highlights:

Intel C621 Chip
3 TB DDR4 SDRAM DDR4
2666/PC4
21300 Maximum RAM Support
24 Total Memory Slots
Serial ATA/600 RAID Supported, 12Gb/s SAS Controller
ASPEED AST2500 32 MB Graphic(s)
14 2.5" Bay(s)
Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze)
10 Gigabit Ethernet
2 USB 3.0 Port(s)
3 x 3200 W
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 100 lbs.

Tyan Thunder HX FT77DB7109 Barebone System - 4U Rack-mountable - Socket P LGA-3647 - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Tyan Computer Corp
Manufacturer Part Number	B7109F77DV10E4HR-2T-NF
Manufacturer Website Address	http://www.tyan.com
Brand Name	Tyan
Product Line	Thunder HX
Product Model	FT77DB7109
Product Name	Thunder HX FT77DB7109 (B7109F77DV10E4HR-2T-NF)
Packaged Quantity	1
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Socket	Socket P LGA-3647
Processor Supported	Xeon Platinum Xeon Gold Xeon Silver Xeon Bronze
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621

Memory

Maximum Memory Supported	3 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2666/PC4-21300
Number of Total Memory Slots	24

Controllers

Controller Type	Serial ATA/600 12Gb/s SAS
RAID Supported	Yes

Display & Graphics

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2500
Graphics Memory Capacity	32 MB

Network & Communication

Ethernet Technology

10 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	14
Number of Internal 2.5" Bays	14
Number of Total Expansion Slots	10
Number of PCI Express x8 Slots	2
Number of PCI Express x16 Slots	8

Interfaces/Ports

Total Number of USB Ports	2
Number of USB 3.0 Ports	2

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Installed	3
Maximum Power Supply Wattage	3200 W

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	4U
Height	6.9"
Width	17.2"
Depth	30.3"
Weight (Approximate)	57.32 lb

Miscellaneous

Package Contents	Thunder HX FT77DB7109 (B7109F77DV10E4HR-2T-NF) 1 x Quick Installation Guide 1 x TYAN Device Driver CD
Environmentally Friendly	Yes
Environmental Certification	RoHS-6

Warranty

Limited Warranty

3 Year
