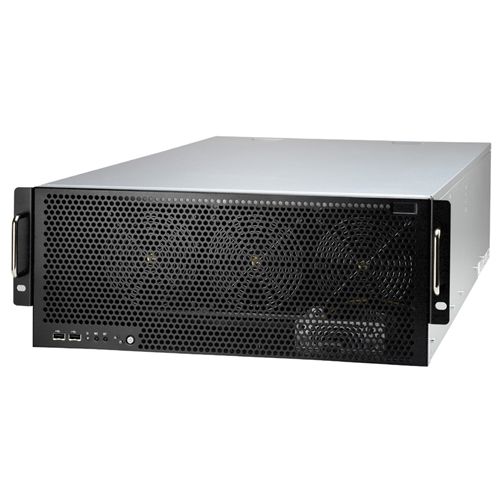

Tyan B7015F72V2R Barebone System - 4U Rack-mountable - Socket B LGA-1366 - 2 x Processor Support

Name: Tyan B7015F72V2R Barebone System - 4U Rack-mountable - Socket B LGA-1366 - 2 x Processor Support
Brand: TYAN COMPUTER
SKU: 7231AY
Price: 4106.27 USD
Availability: InStock

TYAN COMPUTER

PCN#

7231AY

MFG#

B7015F72V2R

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$4,106.27

Extended & Accidental Damage Protection Plans Available Details

2-Year $331.99

3-Year $446.99

Estimated Shipment:

Product Highlights:

Intel 5520 Chip
144 GB DDR3 SDRAM DDR3
1333/PC3
10600 Maximum RAM Support
18.0 Total Memory Slots
Serial ATA/300 Controller
ASPEED AST2050 Graphic(s)
Network (RJ
45)
Processor Support (Xeon)
Gigabit Ethernet
Supported Operating System
6 x 10.20 kW
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 65 lbs.

Tyan B7015F72V2R Barebone System - 4U Rack-mountable - Socket B LGA-1366 - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Tyan Computer Corp
Manufacturer Part Number	B7015F72V2R
Manufacturer Website Address	http://www.tyan.com
Brand Name	Tyan
Product Series	FT72
Product Model	B7015F72V2R
Product Name	B7015F72V2R Barebone System
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Socket	Socket B LGA-1366
Processor Supported	Xeon

Chipset

Chipset Manufacturer	Intel
Chipset Model	5520

Memory

Maximum Memory Supported	144 GB
Memory Technology	DDR3 SDRAM
Memory Standard	DDR3-1333/PC3-10600
Total Number of Memory Slots	18.0

Controllers

Controller Type

Serial ATA/300

Display & Graphics

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2050

Network & Communication

Ethernet Technology

Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	2
Total Number of Expansion Slots	13.0
Number of PCI Slots	1
Number of PCI Express x1 Slots	2
Number of PCI Express x16 Slots	10

Interfaces/Ports

Total Number of USB Ports	2
Network (RJ-45)	Yes
VGA	Yes

Operating System

Operating System Supported

Windows XP Professional
Windows XP Professional x64
Windows Vista Ultimate
Windows Vista Ultimate x64
Windows Server 2003 Standard
Windows Server 2003 Standard x64
Windows Server 2008
Windows Server 2008 x64
Windows Server 2008 R2 x64
Windows 7
Windows 7 x64

Power Description

Input Voltage	110 V AC 220 V AC
Number of Power Supplies Installed	6
Maximum Power Supply Wattage	10.20 kW

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	4U
Height	6.9"
Width	17.2"
Depth	28"

Miscellaneous

Package Contents	B7015F72V2R Barebone System 1 x Quick Reference Guide 1 x MB User's Manual 1 x BB User's Manual 1 x TYAN Installation CD
Additional Information	QuickPath Technology: QuickPath Interconnect supports up to 6.4 GT/s Expansion Slot Detail: 2 x PCI Express x16 slots have the bus speed of PCI Express x4 Power Supplies Detail: 3 x 1000W at 100-127V 3 x 2400W (2+1) Redundant at 200-240V
Environmentally Friendly	Yes

Warranty

Limited Warranty

3 Year
