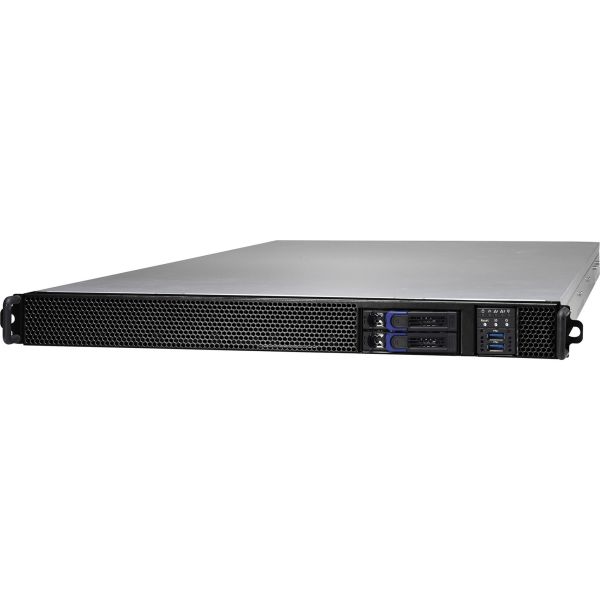

Tyan Thunder HX HX GA88B5631 Barebone System - 1U Rack-mountable - Socket P LGA-3647 - 1 x Processor Support

Name: Tyan Thunder HX HX GA88B5631 Barebone System - 1U Rack-mountable - Socket P LGA-3647 - 1 x Processor Support
Brand: TYAN COMPUTER
SKU: 7374AY
Price: 2702.34 USD
Availability: InStock

TYAN COMPUTER

PCN#

7374AY

MFG#

B5631G88V2HR-2T-N

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,702.34

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Estimated Shipment:

Product Highlights:

Intel C621 Chip
1.50 TB DDR4 SDRAM DDR4
2666/PC4
21300 Maximum RAM Support
12.0 Total Memory Slots
Serial ATA/600 RAID Supported, 12Gb/s SAS Controller
ASPEED AST2500 Graphic(s)
4 SATA Interface(s)
Processor Support (Xeon)
10 Gigabit Ethernet
4 USB 3.0 Port(s)
2 x 1600 W
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 60 lbs.

Tyan Thunder HX HX GA88B5631 Barebone System - 1U Rack-mountable - Socket P LGA-3647 - 1 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Tyan Computer Corp
Manufacturer Part Number	B5631G88V2HR-2T-N
Manufacturer Website Address	http://www.tyan.com
Brand Name	Tyan
Product Line	Thunder HX
Product Model	HX GA88B5631
Product Name	Thunder HX GA88B5631 (B5631G88V2HR-2T-N)
Product Type	Barebone System

Processor

Number of Processors Supported	1
Processor Socket	Socket P LGA-3647
Processor Supported	Xeon
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621

Memory

Maximum Memory Supported	1.50 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2666/PC4-21300
Total Number of Memory Slots	12.0

Controllers

Controller Type	Serial ATA/600 12Gb/s SAS
RAID Supported	Yes

Display & Graphics

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2500

Network & Communication

Ethernet Technology

10 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	2
Total Number of Expansion Slots	5.0
Number of PCI Express x16 Slots	5

Interfaces/Ports

Total Number of USB Ports	4
Number of USB 3.0 Ports	4
Number of SATA Interfaces	4

Operating System

Operating System Supported

Windows Server 2012 R2 x64
Red Hat Enterprise Linux 6.4 x64
Red Hat Enterprise Linux 6.5 x64
Red Hat Enterprise linux 7.3 x64
Red Hat Enterprise linux 7.4 x64
CentOS 7.3 x64
CentOS 7.4 x64
Ubuntu 16.04 LTS x64
Ubuntu 17.04 x64
SuSE Linux Enterprise Server 11 x64
SuSE Linux Enterprise Server 12 x64

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	1600 W

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	1U
Height	1.7"
Width	17.2"
Depth	34.5"
Weight (Approximate)	29.76 lb

Miscellaneous

Package Contents	Thunder HX GA88B5631 (B5631G88V2HR-2T-N) 1 x Quick Installation Guide 1 x TYAN installation CD
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
