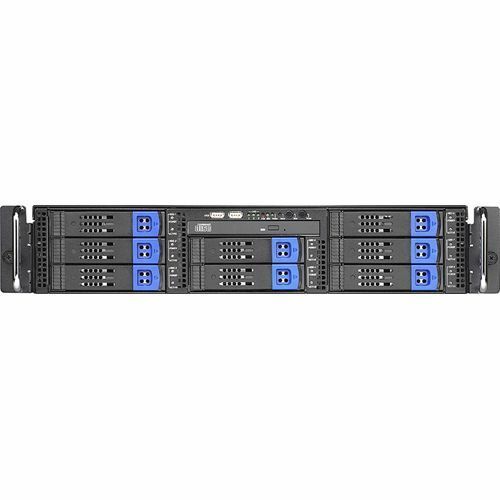

Tyan Tank TA26 (B5380) Barebone System

Name: Tyan Tank TA26 (B5380) Barebone System
Brand: TYAN COMPUTER
SKU: 7163AY
Price: 1171.39 USD
Availability: InStock

TYAN COMPUTER

PCN#

7163AY

MFG#

B5380T26V8H-RS

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,171.39

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Estimated Shipment:

Product Highlights:

Intel 5000P
LGA771 Socket
Xeon (Dual
core)
1333MHz, 1066MHz Bus Speed
16GB Memory Support
Gigabit Ethernet
2U Rack

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 60 lbs.

Tyan Tank TA26 (B5380) Barebone System

Overview

Tech Specs

Specifications

Manufacturer	Tyan Computer Corp
Manufacturer Part Number	B5380T26V8H-RS
Manufacturer Website Address	http://www.tyan.com
Brand Name	Tyan
Product Line	Tank
Product Series	TA26
Product Model	TA26 (B5380)
Product Name	Tank TA26 (B5380) Barebone System
Marketing Information	The Tank TA26 (B5380) provides high-density storage for departmental/NAS 2U rackmount applications. Supports dual Intel Xeon processors, 8 FBDIMM memory sockets, PCI-E and PCI-X expansion slots, 6 SATA-II hot-swap drive bays, built-in 650W PFC power supply and much more.
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Socket	Socket J LGA-771
Processor Supported	Xeon
Front Side Bus	1333 MHz 1066 MHz

Chipset

Chipset Manufacturer	Intel
Chipset Model	5000P

Memory

Maximum Memory Supported	16 GB
Memory Technology	DDR2 SDRAM
Memory Standard	DDR2-667/PC2-5300
Total Number of Memory Slots	8.0

Controllers

Controller Type	Serial ATA/300
RAID Supported	Yes
RAID Levels	0, 1, 5, 10

Display & Graphics

Graphics Controller Manufacturer	ATI
Graphics Controller Model	ES1000
Graphics Memory Capacity	32 MB
Graphics Controller Interface	PCI

Network & Communication

Ethernet Technology

Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	9
Number of External 5.25" Bays	1
Number of 3.5" Bays	8
Total Number of Expansion Slots	5.0
Number of PCI-X Slots	2
Number of PCI Express x8 Slots	1
Number of PCI Express x16 Slots	2

Interfaces/Ports

Total Number of USB Ports	8
Number of USB 2.0 Ports	8
Network (RJ-45)	Yes
VGA	Yes

Power Description

Number of Power Supplies Installed	1
Maximum Power Supply Wattage	600 W

Physical Characteristics

Form Factor	Rack-mountable
Height	3.5"
Width	17"
Depth	26"

Miscellaneous

Additional Information	Expansion Slot Detail: PCI Express x8 slot has the bus speed of PCI Express x4 PCI Express x16 slots have the bus speed of PCI Express x8
Environmentally Friendly	Yes

Warranty

Limited Warranty

3 Year
