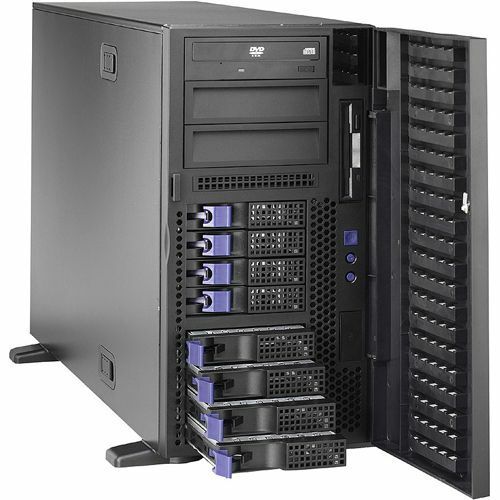

Tyan Transport VX50 (B4985-E) Barebone System

Name: Tyan Transport VX50 (B4985-E) Barebone System
Brand: TYAN COMPUTER
SKU: 7148AY
Price: 3920 USD
Availability: InStock

TYAN COMPUTER

PCN#

7148AY

MFG#

B4985V50V8H-8P-E

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$3,920.00

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Estimated Shipment:

Product Highlights:

nVIDIA nForce4 Professional
Socket F (1207)
Opteron (Dual
core), Opteron (Quad
core)
1000MHz Bus Speed
128GB Memory Support
DVD
Reader (DVD
ROM)
Gigabit Ethernet, Gigabit Ethernet
5U Tower

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 130 lbs.

Tyan Transport VX50 (B4985-E) Barebone System

Overview

Tech Specs

Specifications

Manufacturer	Tyan Computer Corp
Manufacturer Part Number	B4985V50V8H-8P-E
Manufacturer Website Address	http://www.tyan.com
Brand Name	Tyan
Product Line	Transport
Product Series	VX50
Product Model	VX50 (B4985-E)
Product Name	Transport VX50 (B4985-E) Barebone System
Marketing Information	An uniquely designed 8P high-end server/workstation barebones that outputs 8 Dual-Core or Quad-Core AMD Opteron's processing power and up to 128GB of DDR2 DIMM memory capacity. VX50 B4985-E features (3) GbE LANs, (5) expansion slots, and (8) hot-swap capable SATA2 HDD bays. The convertible 5U/tower chassis is supported by 1620W (3+1) redundant power supply unit. It's an universal rack-mount and pedestal solution that provides superb performance for greater server needs.
Product Type	Barebone System

Processor

Number of Processors Supported	8
Processor Socket	Socket F LGA-1207
Processor Supported	Opteron
HyperTransport Speed	1000 MHz

Chipset

Chipset Manufacturer	NVIDIA
Chipset Model	nForce4 Professional

Memory

Maximum Memory Supported	128 GB
Memory Technology	DDR2 SDRAM
Memory Standard	DDR2-667/PC2-5300
Total Number of Memory Slots	16.0

Storage

Optical Drive Type	DVD-Reader
Optical Media Supported	DVD-ROM

Controllers

Controller Type	Serial ATA/300
RAID Supported	Yes
RAID Levels	0, 1, 0+1, 5

Display & Graphics

Graphics Controller Manufacturer	XGI
Graphics Controller Model	XG20
Graphics Memory Capacity	16 MB
Graphics Controller Interface	PCI

Network & Communication

Ethernet Technology

Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	10
Number of External 5.25" Bays	1
Number of 3.5" Bays	1
Total Number of Expansion Slots	5.0
Number of PCI Slots	1
Number of PCI Express x16 Slots	4

Interfaces/Ports

Total Number of USB Ports	4
Number of USB 2.0 Ports	4
Network (RJ-45)	Yes
VGA	Yes

Power Description

Number of Power Supplies Installed	4
Maximum Power Supply Wattage	6480 W

Physical Characteristics

Form Factor	Tower
Rack Height	5U
Height	8.7"
Width	16.7"
Depth	26.8"

Miscellaneous

Additional Information

Expansion Slot Detail:

2 x PCI Express x16 slots have the bus speed of PCI Express x4

Warranty

Limited Warranty

3 Year
