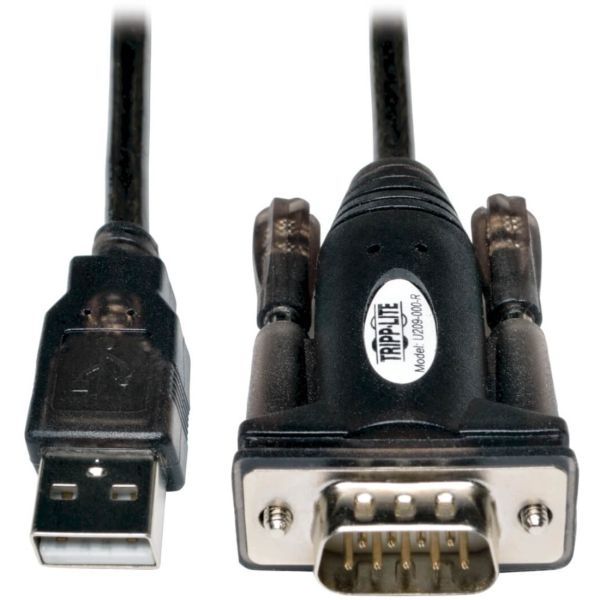

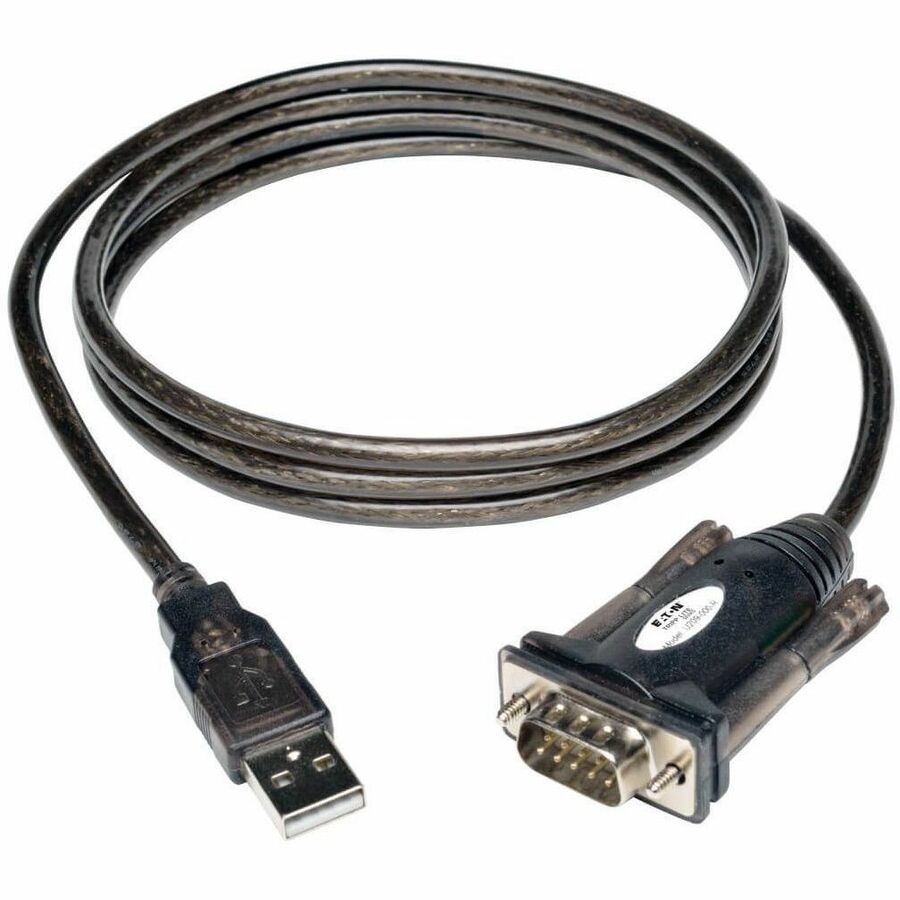

Tripp Lite by Eaton USB-A to RS-232 (DB9) Serial Adapter Cable (M/M) 5 ft. (1.5 m)

by
TRIPP LITE
PCN#
073060
MFG#
U209-000-R
$20.07
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • (A
  • M to DB9
  • M)
Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 1 lbs.
Tripp Lite by Eaton USB-A to RS-232 (DB9) Serial Adapter Cable (M/M), 5 ft. (1.5 m)
Tech Specs
Specifications

Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

U209-000-R

Manufacturer Website Address

https://tripplite.eaton.com/

Brand Name

Tripp Lite by Eaton

Product Model

U209-000-R

Product Name

USB to Serial Adapter (USB-A Male to DB9M)

Marketing Information

The U209-000-R USB-to-Serial Adapter Cable allows you to connect a 9-pin RS-232 serial device to a computer or laptop with a USB Type-A port. It works with modems, digital cameras, PDAs, ISDN terminals and other devices with a serial port. The U209-000-R supports data transfer speeds up to 230 Kbps-twice as fast as a built-in serial port. No external power is required, and the compact 5-foot cable tucks away conveniently in your backpack or laptop bag for easy travelling. Doubled-shielded design with gold-plated contacts, tinned copper braid and aluminum Mylar foil shield eliminates crosstalk and reduces EMI/RFI interference. Compatible with Windows 2000, XP, Server 2003, Vista, 7, Server 2008, 8, 8.1, Server 2012, and 10; Mac OS X 10.6 through 10.10; and Linux Redhat 7.3, 8.0 and 9.0. Also works with Android tablets and smartphones with the addition of a USB Host Mode (OTG) cable.

Package Type

Retail

Product Type

Data Transfer Cable
Technical Information

Cable Type

DB-9/USB

Cable Length

5 ft

Connector Type on First End

DB-9 RS-232 Serial - Male

Connector on First End Details

1 x 9-pin DB-9 RS-232 Serial - Male

Connector Type on Second End

USB 1.1 Type A - Male

Connector on Second End Details

1 x USB 1.1 Type A - Male

Conductor

Copper

Shielding

Yes

Device Supported

  • Camera
  • Mobile Computer
  • Modem
Physical Characteristics

Color Family

Gray

Product Color

Gray
Miscellaneous

Package Contents

  • USB 1.1 Serial Adapter
  • Driver CD
  • Instruction Manual

Additional Information

  • Compatible with Windows 2000, XP, Server 2003, Vista, 7, Server 2008, 8, 8.1, and Server 2012
  • Compatible with Mac OS X 10.6 through 10.9
  • Compatible with Linux Redhat 7.3, 8.0 and 9.0 (Linux Kernel 2.4.31 and above already includes built-in drivers)
  • Compatible with Android Devices (Tablets / Phones) with USB Host Mode (OTG) support and Android OS version 3.2 and above. Android Devices will require a USB Host Mode (OTG) cable (such as Tripp Lite's U052-06N) to connect the U209-000-R to the device

Environmentally Friendly

Yes

Country of Origin

China
Warranty

Limited Warranty

3 Year
