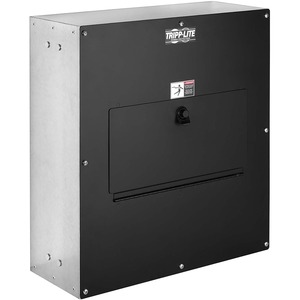

Tripp Lite UPS Maintenance Bypass Panel for SVT10KX - 3 Breakers

Name: Tripp Lite UPS Maintenance Bypass Panel for SVT10KX - 3 Breakers
Brand: TRIPP LITE
SKU: JQ0159
Price: 3569.47 USD
Availability: OutOfStock

TRIPP LITE

PCN#

JQ0159

MFG#

SU10KMBPKX

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

Estimated Shipment:

Product Highlights:

480 V AC

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 80 lbs.

Tripp Lite by Eaton UPS Maintenance Bypass Panel for SVT10KX - 3 Breakers

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SU10KMBPKX
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	SU10KMBPKX
Product Name	UPS Maintenance Bypass Panel for SVT10KX - 3 Breakers
Marketing Information	UPS Maintenance Bypass Panel Keeps Equipment Powered During UPS MaintenanceThis wallmount three-breaker maintenance bypass panel is compatible with Tripp Lite's SVT10KX 3-phase UPS system. It allows you to reroute power around the UPS, providing an alternate path for electricity that keeps the connected load operational while the UPS is offline for maintenance or repairs. Features 3 Built-In Circuit Breakers to Isolate LoadsThree circuit breakers - an AC input breaker, a maintenance bypass breaker and a maintenance isolation breaker - are connected to heavy-duty buswork and isolate the UPS system from its connected load with no loss of network availability. This allows the load to remain continuously powered without costly downtime. A Kirk-key interlock system enhances safety and security. Removable handles allow the panel's trim cover to be removed for internal access. The 40A unit has a kAIC rating of 10K. Switching Between Normal and Bypass Modes Is EasyWhen a UPS needs maintenance, this UPS bypass panel keeps power supplied to components via its mechanical interlock system by switching power to the external bypass breaker. Simply unscrew the interlock switch, rotate the switch from the UPS AC input breaker (SW1) to the bypass breaker (SW2), then turn on the bypass breaker and turn off the UPS and isolation breaker (SW3) to perform UPS maintenance without service interruption. Convenient Wall-Mount InstallationMade of galvanized steel, the service bypass panel has rear mounting holes for installation on a smooth, solid wall (mounting hardware not included).
Product Type	Bypass Panel

Power Description

Input Voltage

480 V AC

Physical Characteristics

Form Factor	Wall-mountable
Height	24"
Width	22"
Depth	10"
Weight (Approximate)	55 lb

Miscellaneous

Package Contents	UPS Maintenance Bypass Panel for SVT10KX - 3 Breakers Installation and Operation Manual
Compatibility	Tripp Lite's SVT10KX 3-phase UPS system
Country of Origin	United States

Warranty

Limited Warranty

1 Year
