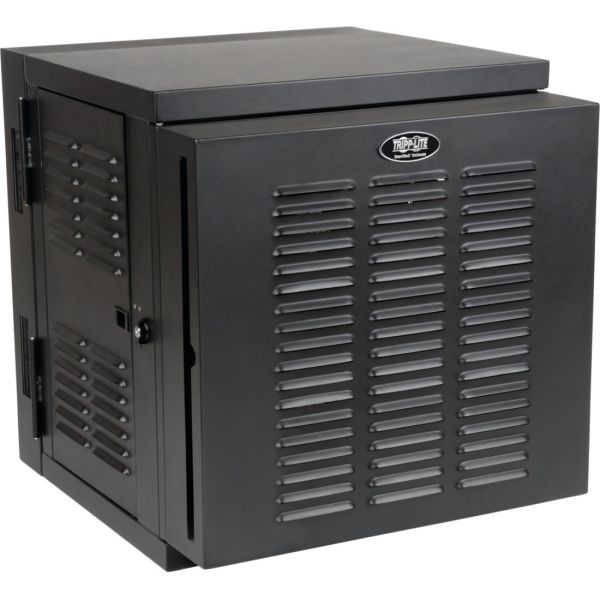

Tripp Lite by Eaton SmartRack 12U Switch-Depth Wall-Mount Small Rack Enclosure for Harsh Environments Hinged Back 230V

Features

Saves Valuable Workspace

• Perfect for harsh, dirty work environments where you need equipment to be secure, organized, out of the way and protected from environmental contaminants
• Houses standard 19 in. (48.3 cm) rack equipment in 12U of space
• Maximum load capacity of 200 lb. (90.7 kg)

IP54 (NEMA 12) Protection Rating

• Built-in air filter, louvered vents and sealing door gaskets keep out dirt, dust, lint, oil, drips and splashes

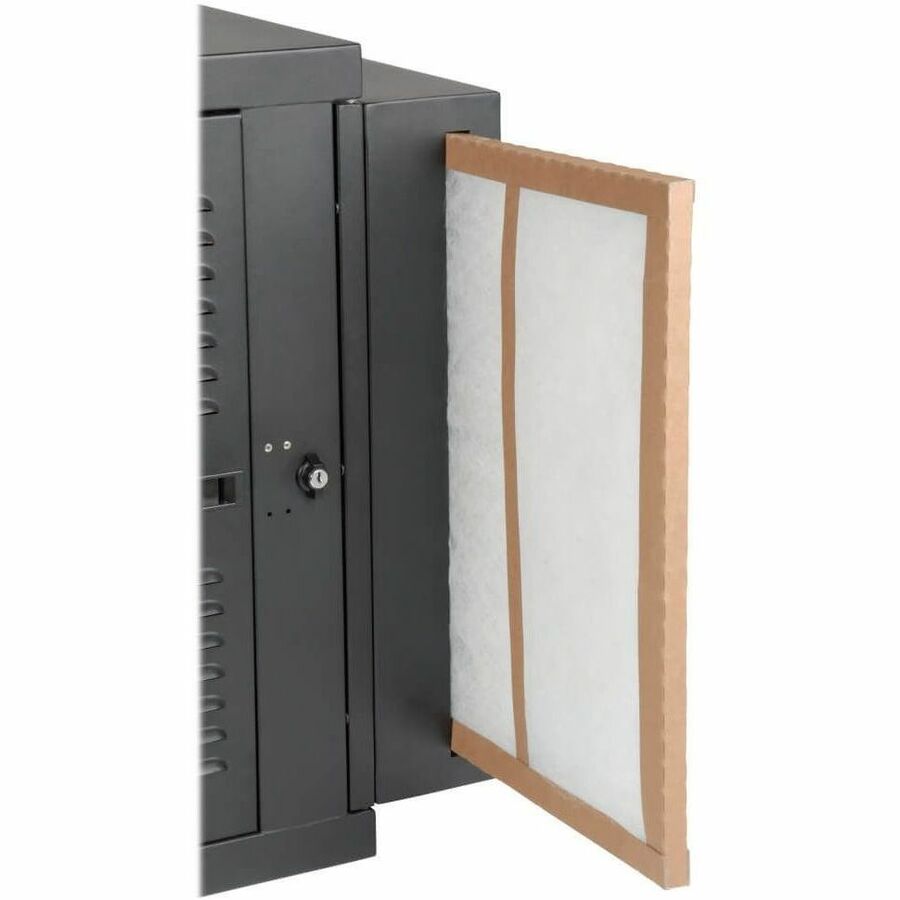

• Removable air filter can be replaced with standard, off-the-shelf furnace filters

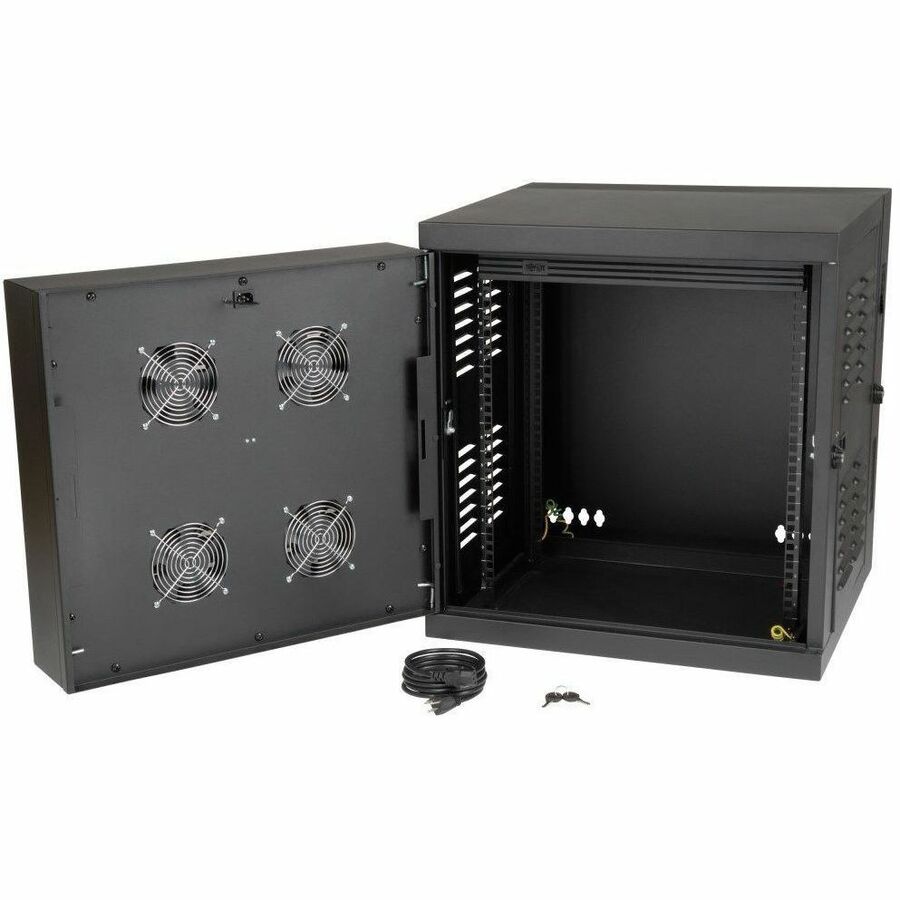

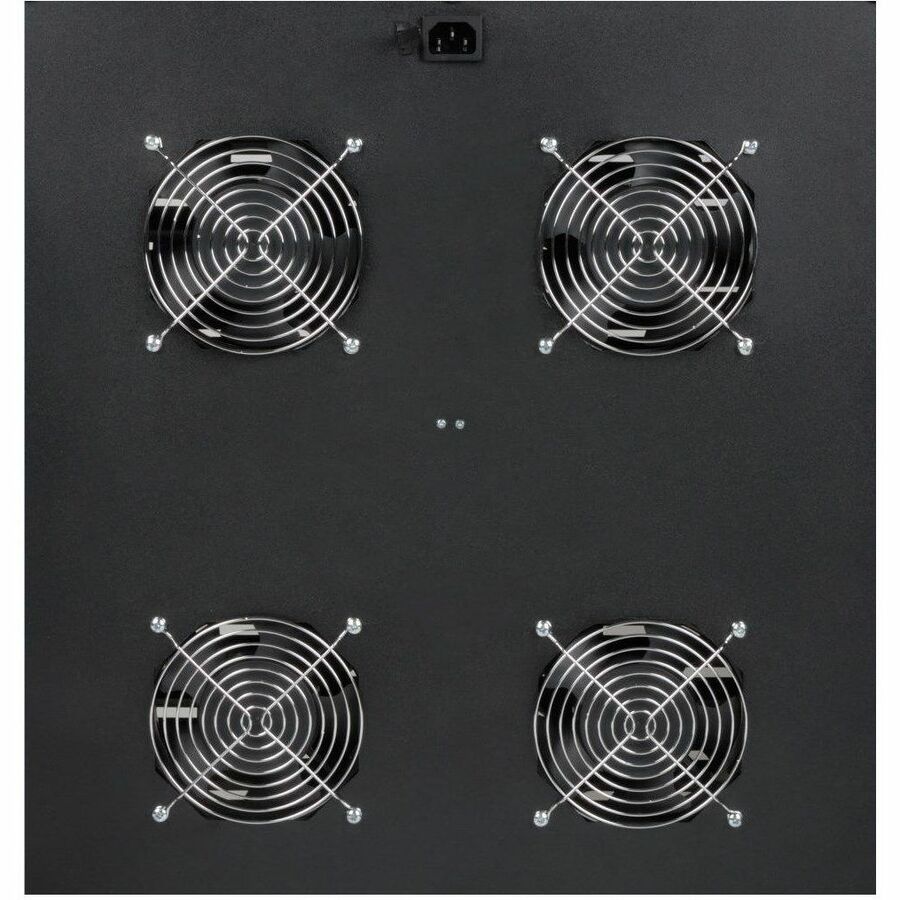

• Built-in high-performance door fans have C13 outlet that accepts various input cords (Schuko, BS 1363 and C14 cords included)
• Sealed cable ports maintain dust and moisture resistance

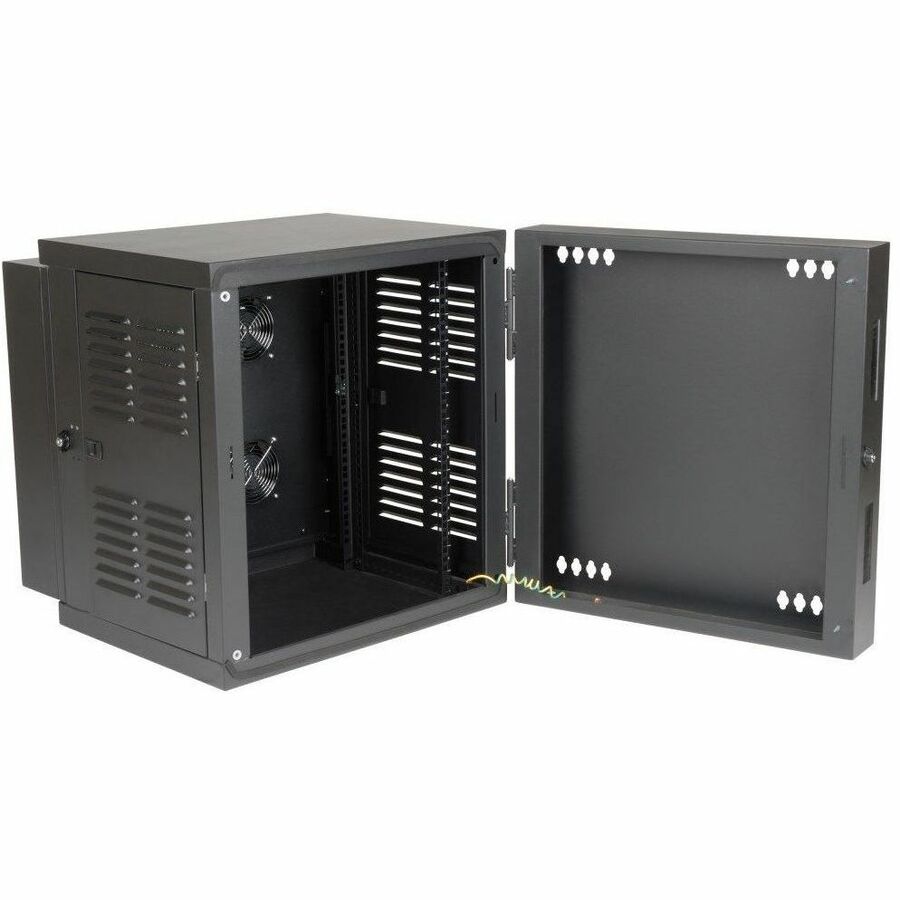

Hinged Cabinet for Convenient Access

• Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance

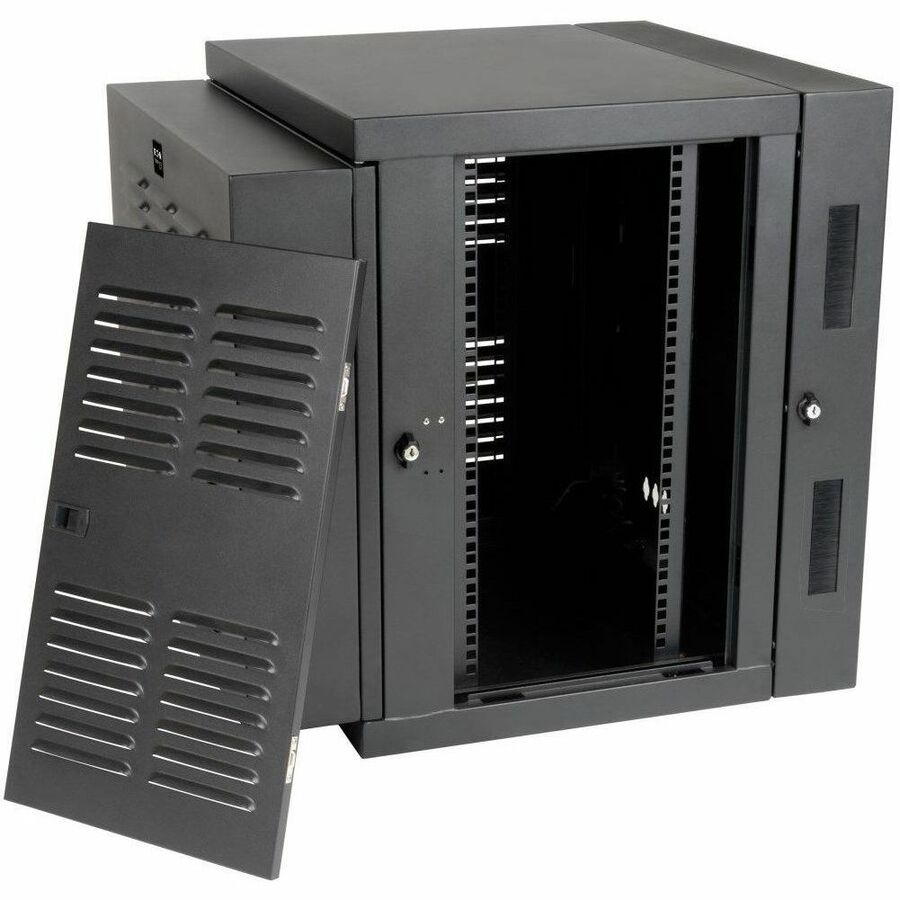

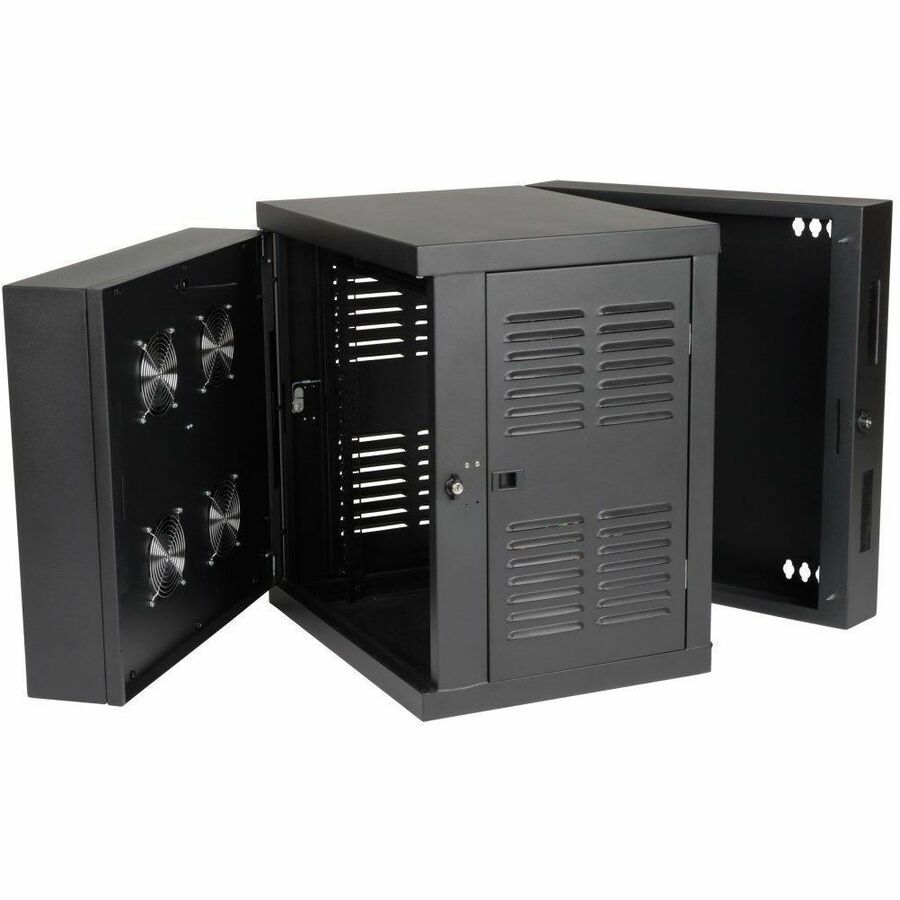

• Reversible doors can open left or right to accommodate various rack configurations

Keeps Important Equipment Secure

• Side panels and doors lock securely to help prevent damage, tampering or theft
• Vented panels and built-in fans provide generous airflow to keep equipment cool

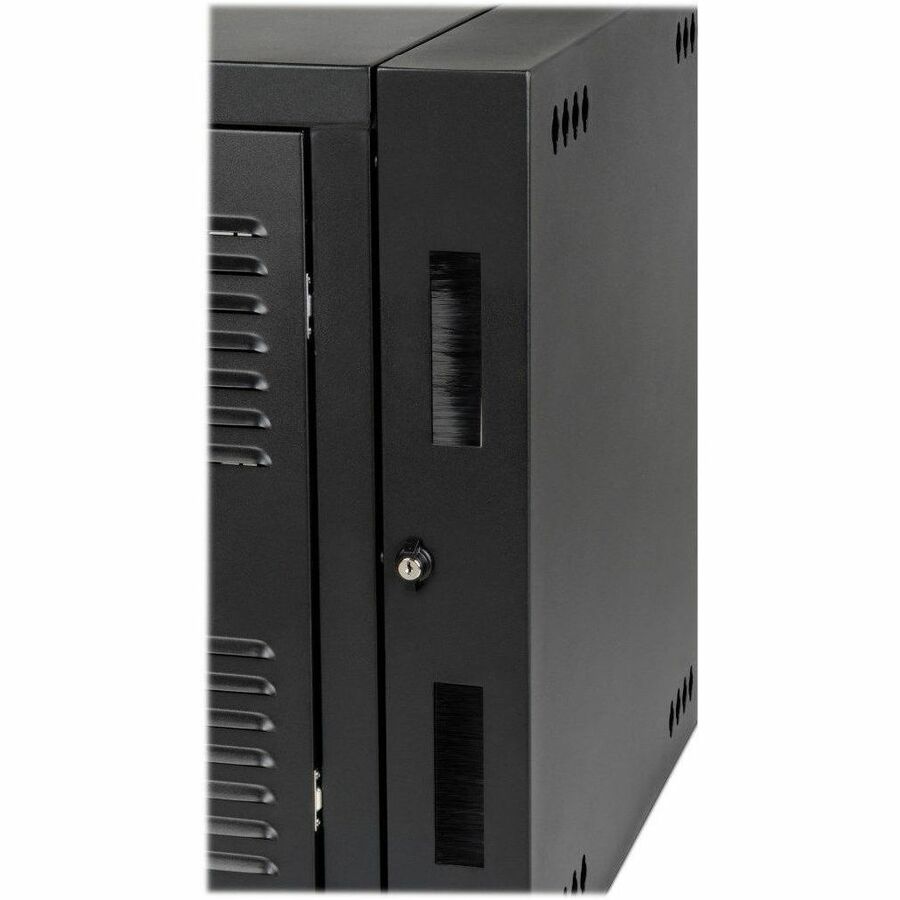

• Convenient ports with removable covers and protective brush strips allow cable routing through rear door

Easy Enclosure and Equipment Installation

• Ships fully assembled for quick wall-mounting
• Wall-mounting holes spaced 16 in. (40.6 cm) apart for standard wall stud placement
• Adjustable vertical mounting rails accommodate equipment up to 20.5 in. (52.1 cm) deep, such as network switches and patch panels
• Rails support square-hole mounting
• Rack spaces numbered for easy reference

• LAN Switch
• Patch Panel
