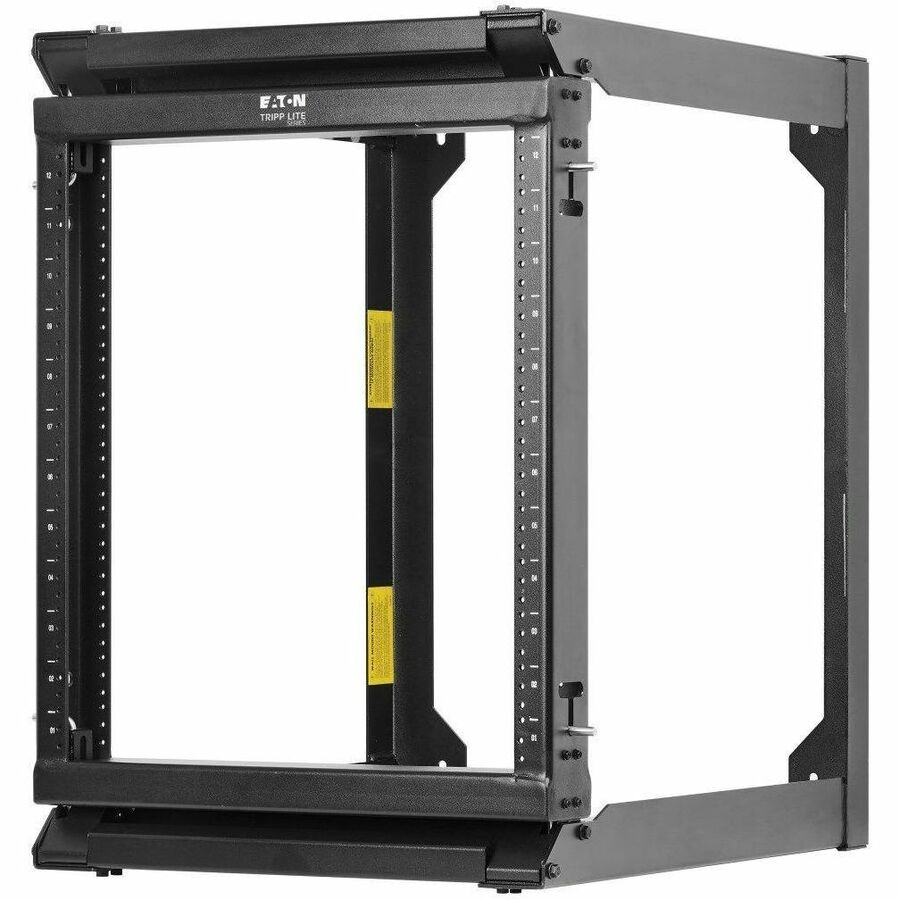

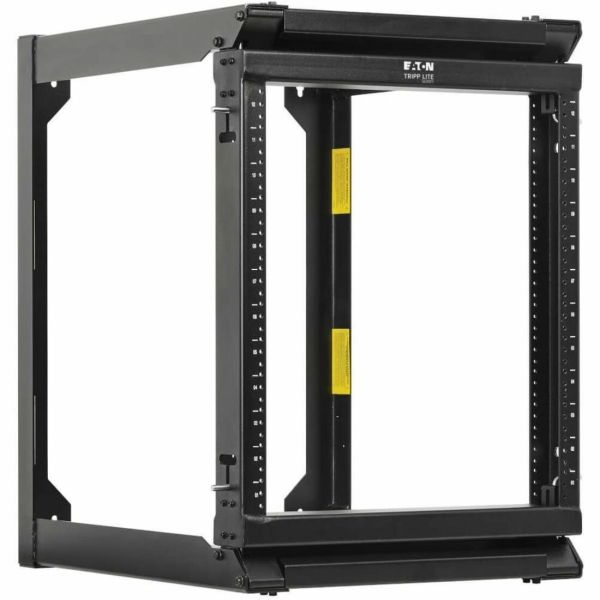

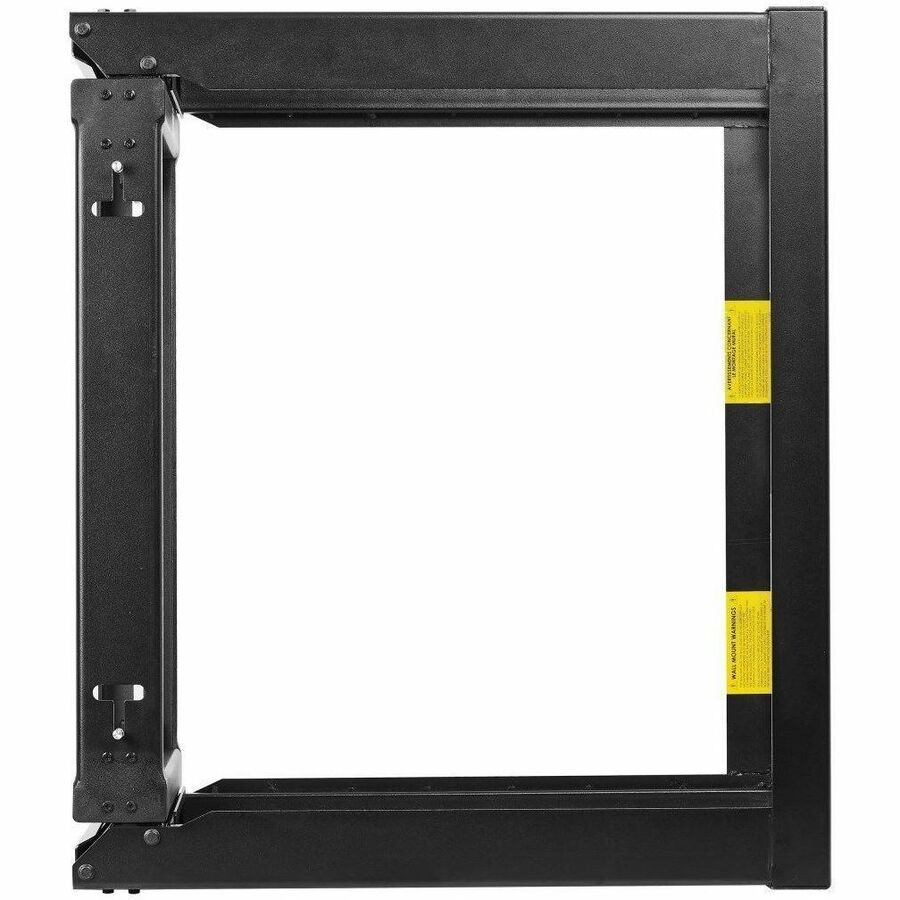

Tripp Lite by Eaton SmartRack 12U Wall-Mount 2-Post Open Frame Rack Hinged Front Heavy Duty

Wall-mount open frame rack stores 12U of 19-inch rack equipment up to 22 inches deep and swings open for maximum accessibility.

Features | 2-Post Wall-Mount Open Frame Rack Saves Valuable Floor Space

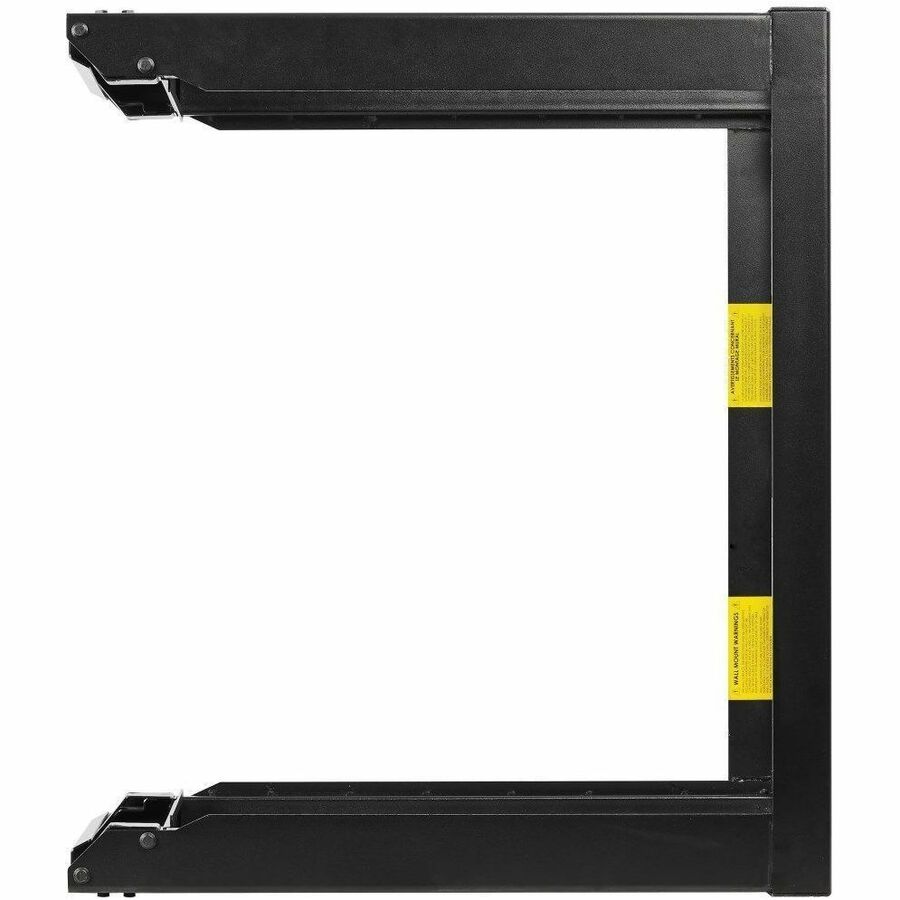

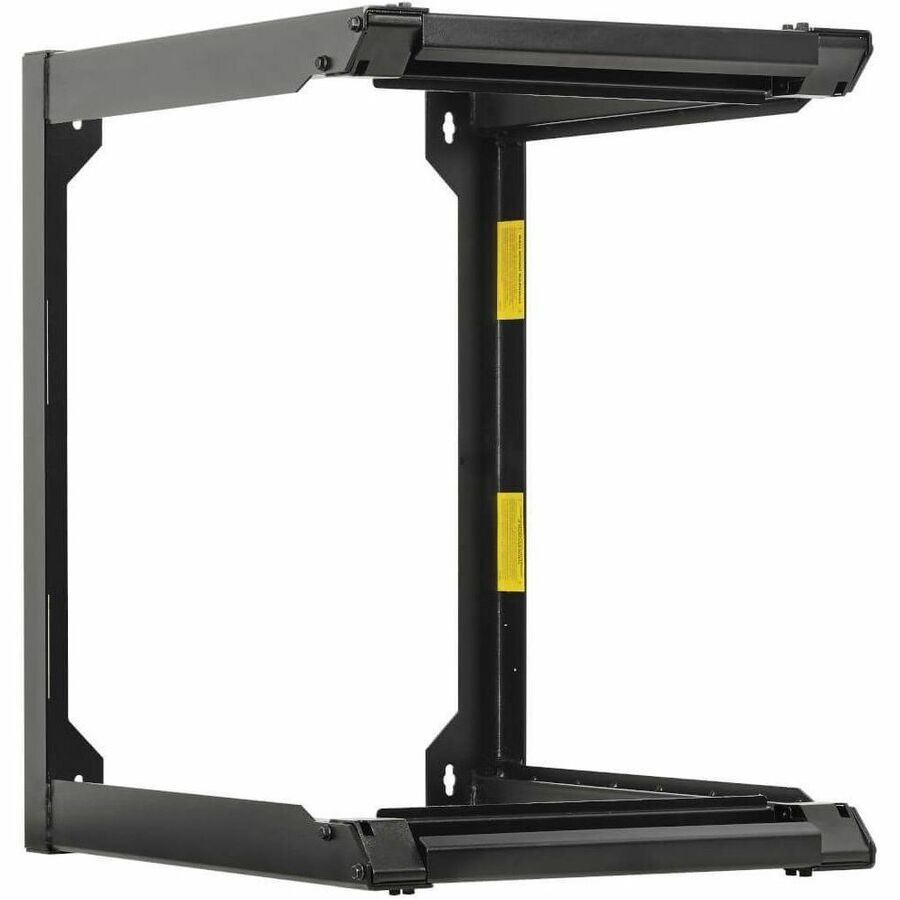

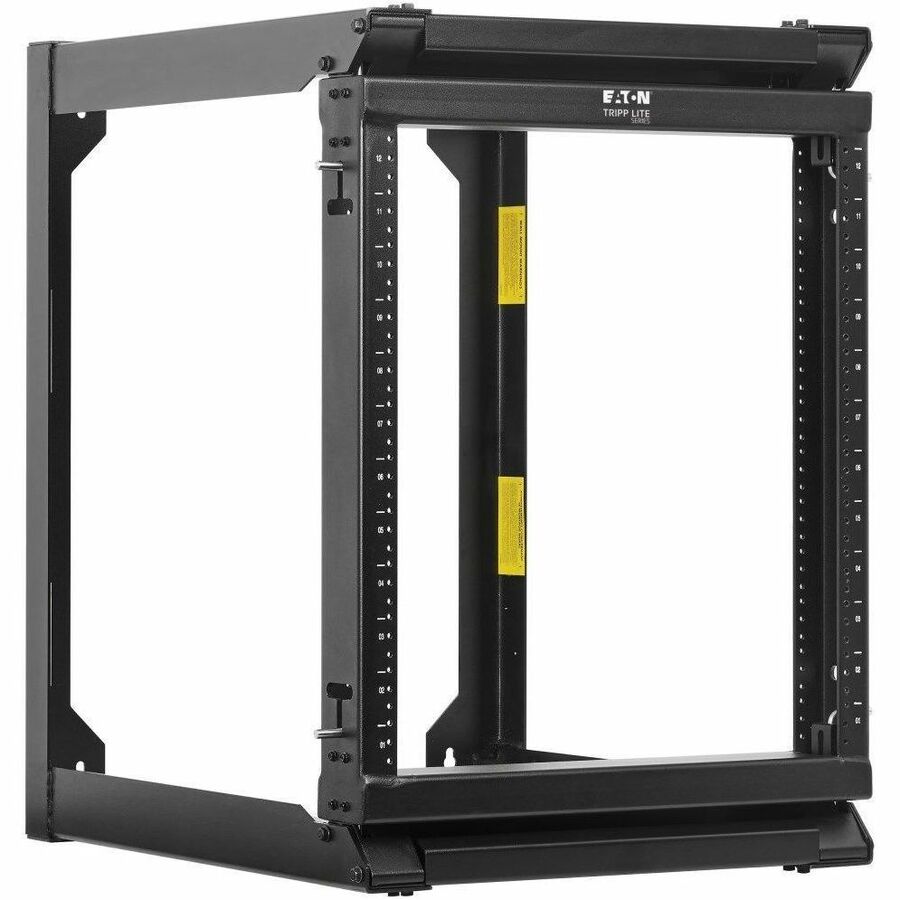

The SRWO12US2 open frame rack stores and organizes 12U of EIA-standard 19-inch rack equipment compatible with 2-post mounting. Designed for wall mounting, the rack saves space in network wiring closets, back offices and other secure areas with limited floor space where a locked enclosure is not required. The 2-post rack is made of heavy-duty steel with a durable black powder-coated finish. Maximum load capacity is 150 pounds (68 kilograms).

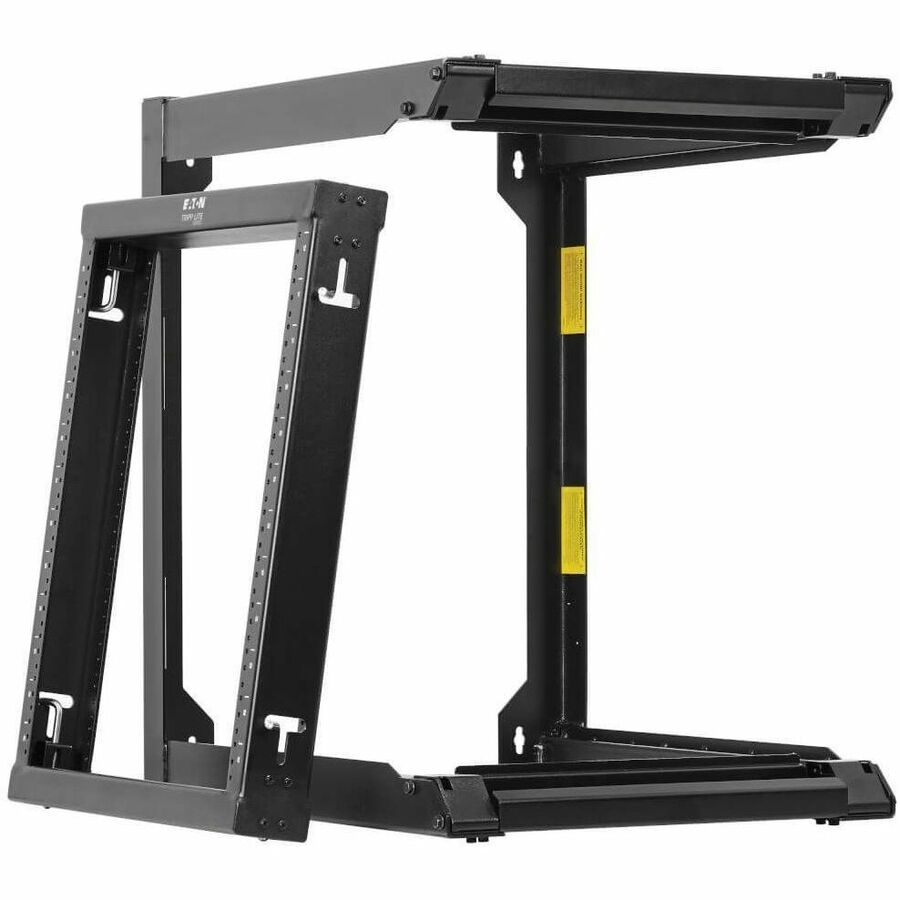

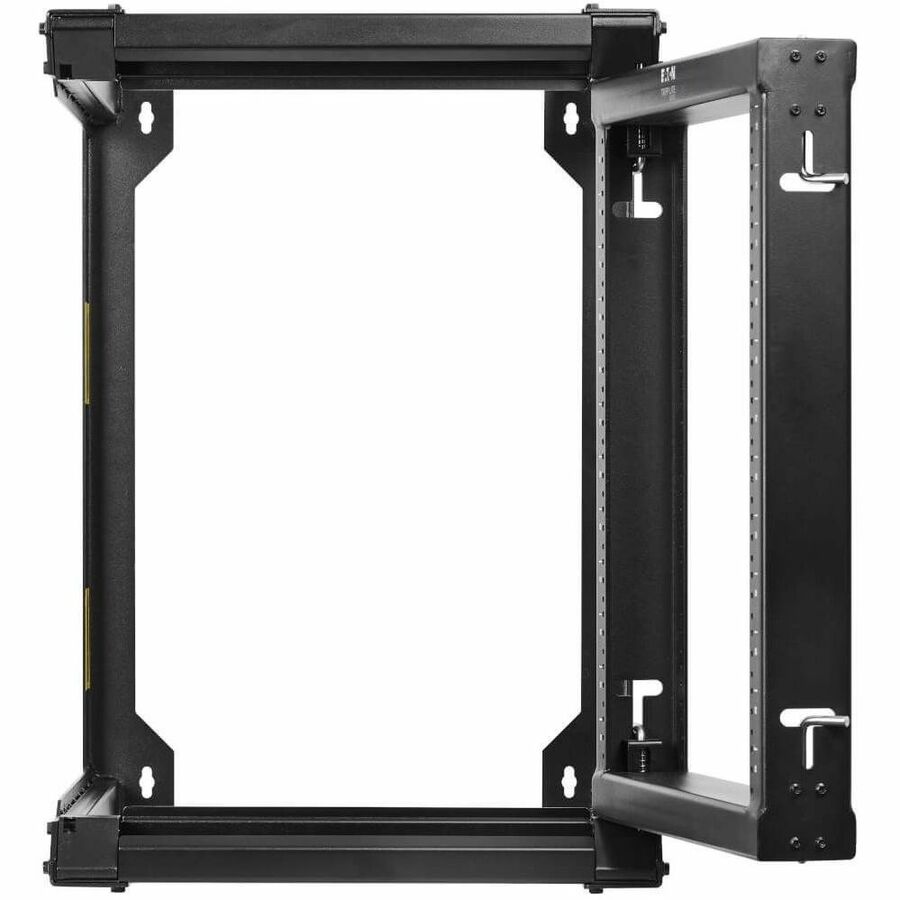

Hinged Front Provides Convenient Access to Cables and Equipment

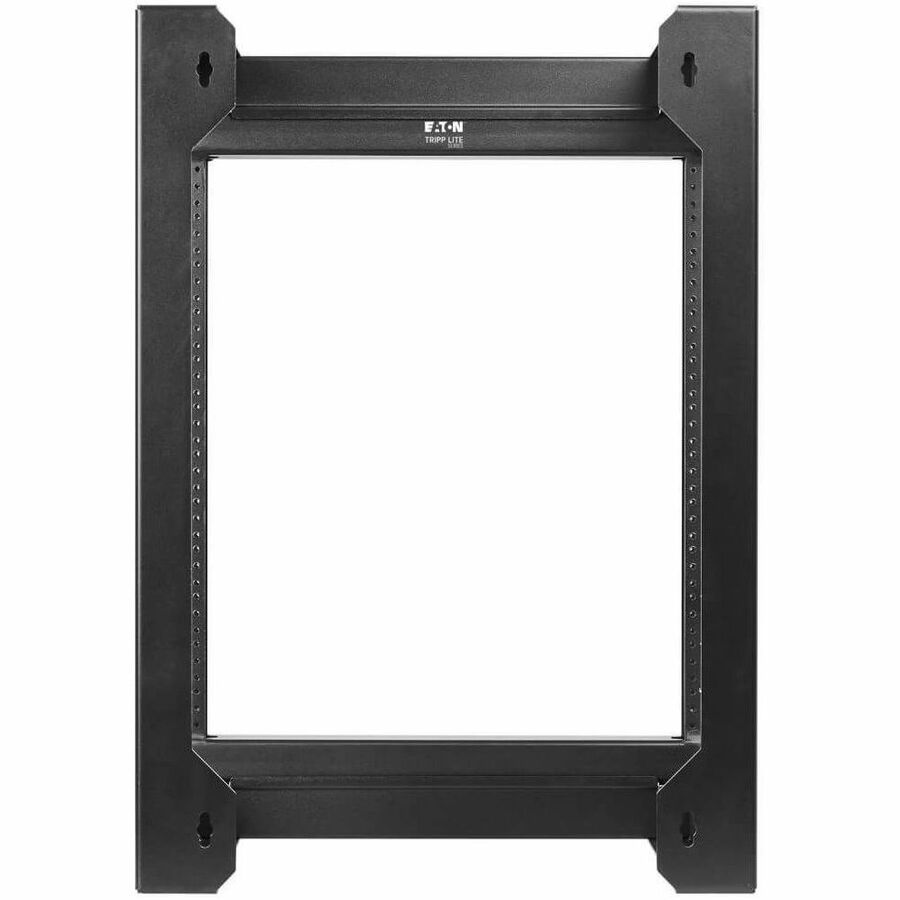

The hinged front of the rack can be mounted to open to the left or the right, providing unrestricted access for installing, configuring and servicing cables and EIA-standard 19-inch rack equipment up to 22 inches deep, such as network switches and patch panels. The swinging front frame can be secured in position to prevent movement during equipment installation.

Easy Assembly and Equipment Mounting

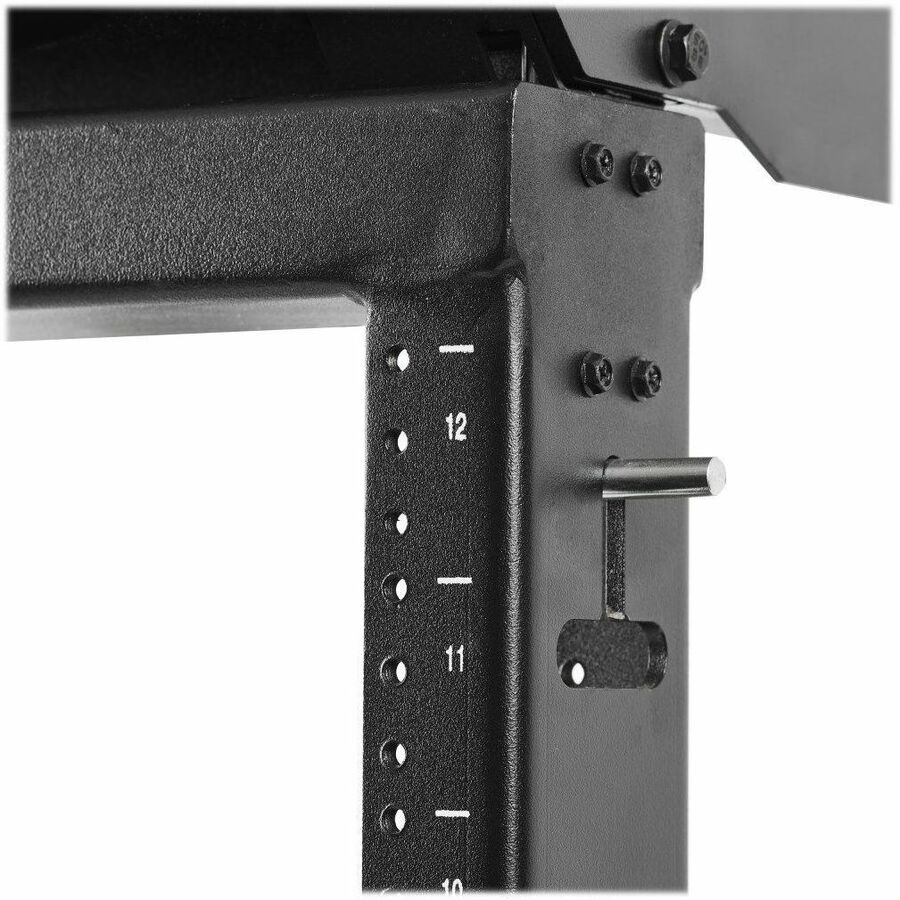

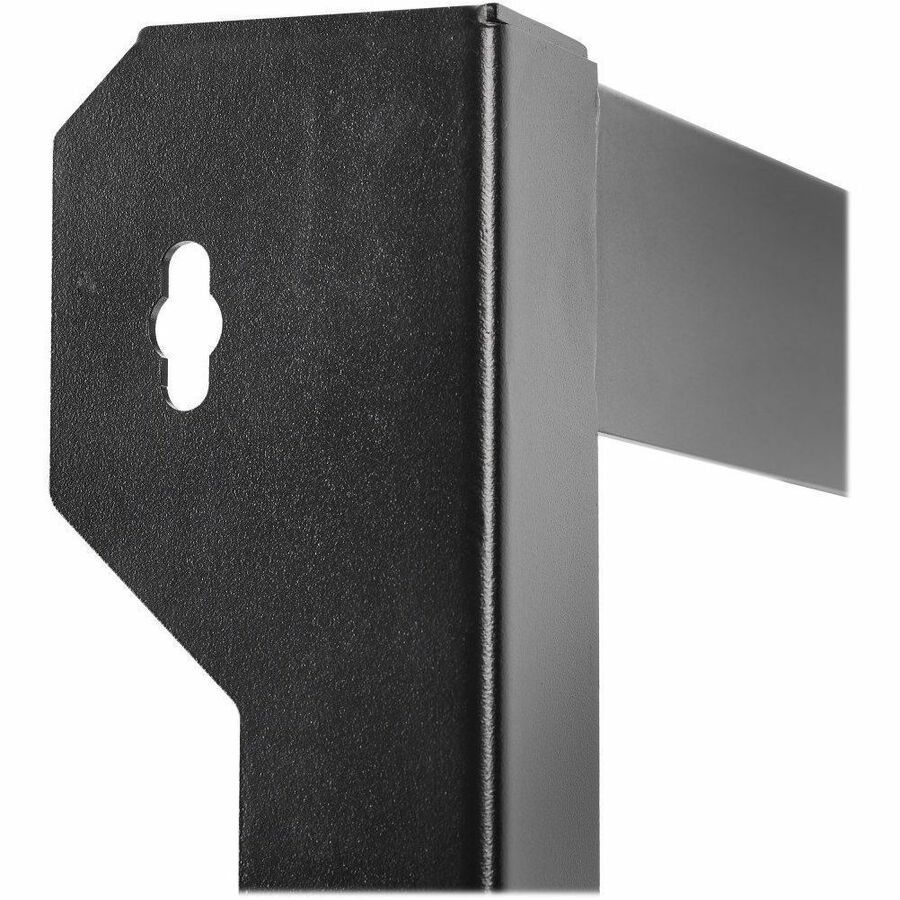

Assemble this open frame rack on location with the included hardware. Wall-mounting holes are spaced 16 inches apart for standard wall stud placement with user-supplied fasteners. Vertical mounting rails with 12-24 threaded mounting holes accommodate equipment up to 22 inches deep. Rack spaces are numbered for easy reference.

• Networking
• Switch
• PDU
• Patch Panel
• Server
• UPS

• Cable Management
• Heavy Duty

• SRWO12US2 12U Wall-Mount 2-Post Open Frame Rack, Hinged
• 2 x Wall-Mount Bracket Frames
• 2 x Front Rail Assemblies
• Swinging Foor Assembly
• 16 x M6 Hex Bolts For Assembly
• Owner's Manual
