Tripp Lite by Eaton SmartRack 6U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet

Name: Tripp Lite by Eaton SmartRack 6U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet
Brand: TRIPP LITE
SKU: 4A0134
Price: 479.17 USD
Availability: InStock

TRIPP LITE

PCN#

4A0134

MFG#

SRWF6U36

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$479.17

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Estimated Shipment:

Product Highlights:

36? Deep Wall Mountable for Server, UPS, Battery Pack, LAN Switch
Black
Steel
149.91 lb x Maximum Weight Capacity
149.91 lb x Static/Stationary Weight Capacity

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 97 lbs.

Eaton Tripp Lite Series SmartRack 6U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SRWF6U36
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	SmartRack
Product Model	SRWF6U36
Product Name	SmartRack SRWF6U36 Rack Cabinet

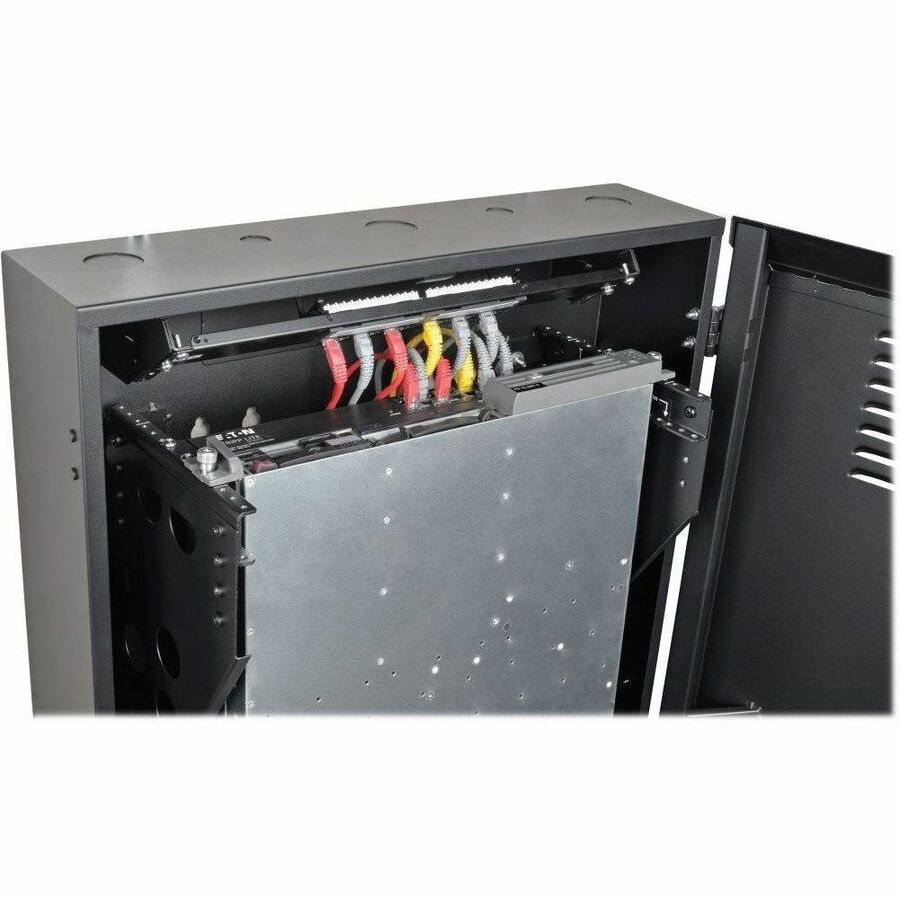

Marketing Information	The SRWF6U36 SmartRack 6U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 pounds. Because the low-profile cabinet mounts vertically, it extends less than 12 inches from the wall while housing equipment up to 36 inches deep, including 1U servers, UPS systems, battery packs and switches. In addition to 6U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep. The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing. The SRWF6U36 comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
Product Type	Rack Cabinet

Technical Information

Application/Usage

Server
UPS
Battery Pack
LAN Switch

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Product Material	Steel
Maximum Weight Capacity	149.91 lb
Static/Stationary Weight Capacity	149.91 lb
Height	43"
Width	25.6"
Depth	11.5"
Weight (Approximate)	88.18 lb
Rack Depth	36"

Miscellaneous

Package Contents	SmartRack SRWF6U36 Rack Cabinet 12 x M6 screws 12 x M6 cup washers 12 x 12-24 screws 2 x Keys Owner's manual
Assembly Required	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
