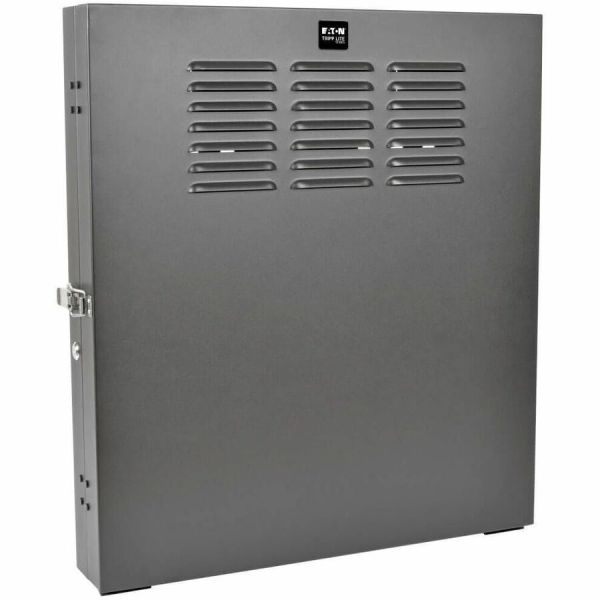

Tripp Lite by Eaton SmartRack 2U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet

Name: Tripp Lite by Eaton SmartRack 2U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet
Brand: TRIPP LITE
SKU: 3B2544
Price: 335.26 USD
Availability: InStock

TRIPP LITE

PCN#

3B2544

MFG#

SRWF2U

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$335.26

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

For LAN Switch, Patch Panel
2U Rack Height x 19? Rack Width x 20? Rack Depth
Wall Mountable
Black
Steel
150 lb Maximum Weight Capacity
150 lb Static/Stationary Weight Capacity

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 29 lbs.

Eaton Tripp Lite Series SmartRack 2U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SRWF2U
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	SmartRack
Product Model	SRWF2U
Product Name	SmartRack SRWF2U Rack Cabinet

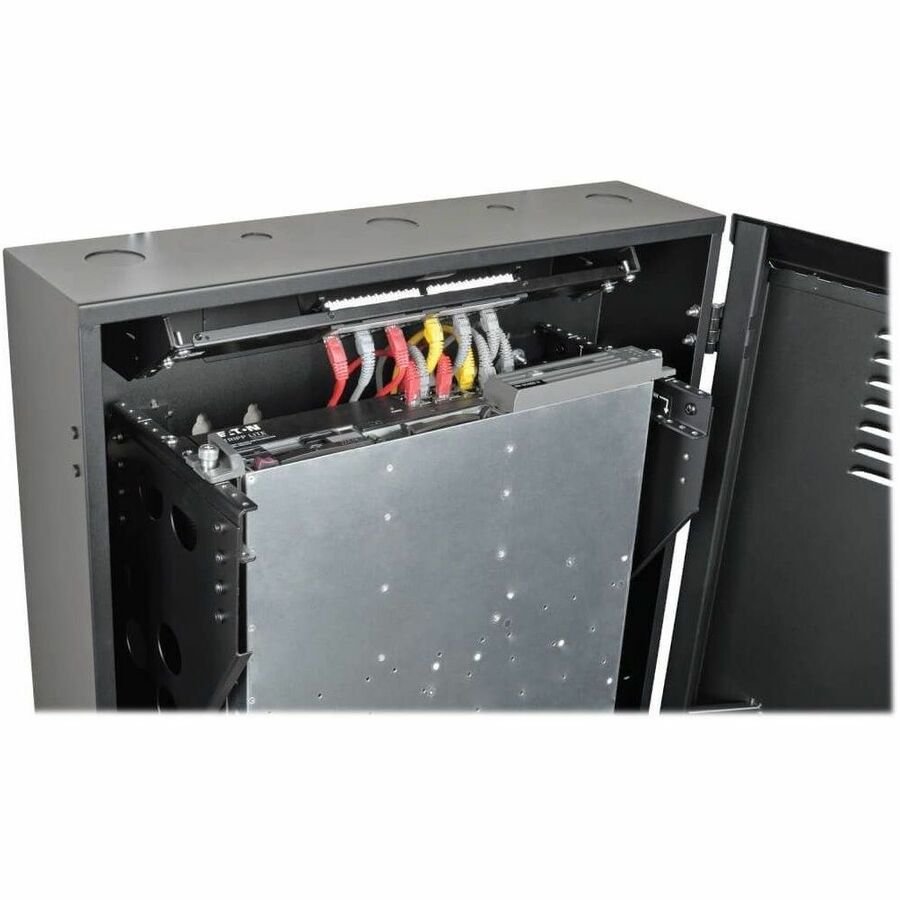

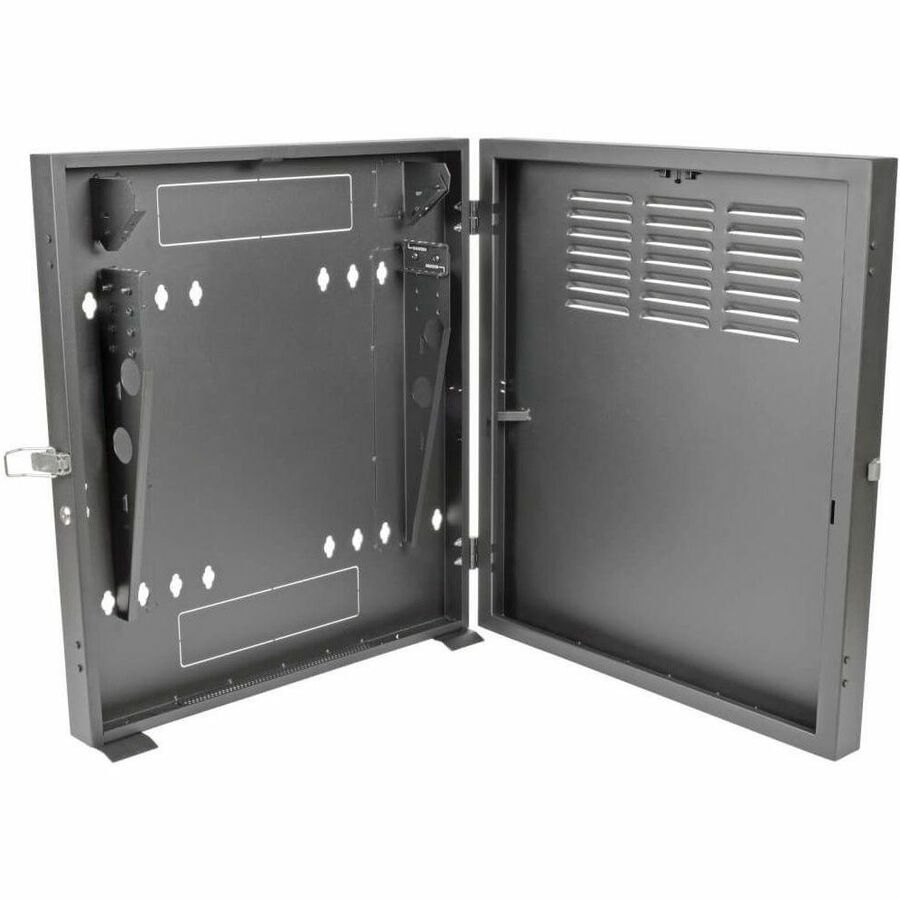

Marketing Information	The SRWF2U SmartRack 2U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 pounds. Because the low-profile cabinet mounts vertically, it extends less than five inches from the wall while housing equipment up to 20 inches deep, including network switches and patch panels. In addition to 2U of rack space in the primary mounting area, it also includes a slide-out 1U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep. The front door locks securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing. The SRWF2U comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
Product Type	Rack Cabinet

Technical Information

Application/Usage

LAN Switch
Patch Panel

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Product Material	Steel
Maximum Weight Capacity	150 lb
Static/Stationary Weight Capacity	150 lb
Height	28.8"
Width	25.6"
Depth	9.7"
Weight (Approximate)	29 lb
Rack Height	2U
Rack Width	19"
Rack Depth	20"

Miscellaneous

Package Contents	SmartRack SRWF2U Rack Cabinet 12 x M6 Screws 12 x M6 Cup Washers 12 x 12-24 Screws 2 x Keys Owner's Manual
Assembly Required	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
