Tripp Lite by Eaton SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure

Name: Tripp Lite by Eaton SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure
Brand: TRIPP LITE
SKU: 3H6471
Price: 256.13 USD
Availability: InStock

TRIPP LITE

PCN#

3H6471

MFG#

SRW6UDP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$256.13

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

For Server
6U Rack Height x 19? Rack Width x 20.50? Rack Depth
Wall Mountable
Black
Steel
200 lb Maximum Weight Capacity
90.70 lb Static/Stationary Weight Capacity

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 49 lbs.

Eaton Tripp Lite Series SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Mini Rack Enclosure

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SRW6UDP
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	SmartRack
Product Model	SRW6UDP
Product Name	SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
Marketing Information	The SRW6UDP SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds. The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW6UDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
Product Type	Rack Cabinet

Technical Information

Application/Usage

Server

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Product Material	Steel
Maximum Weight Capacity	200 lb
Static/Stationary Weight Capacity	90.70 lb
Height	14.6"
Width	23.6"
Depth	21.7"
Weight (Approximate)	45.19 lb
Rack Height	6U
Rack Width	19"
Rack Depth	20.50"

Miscellaneous

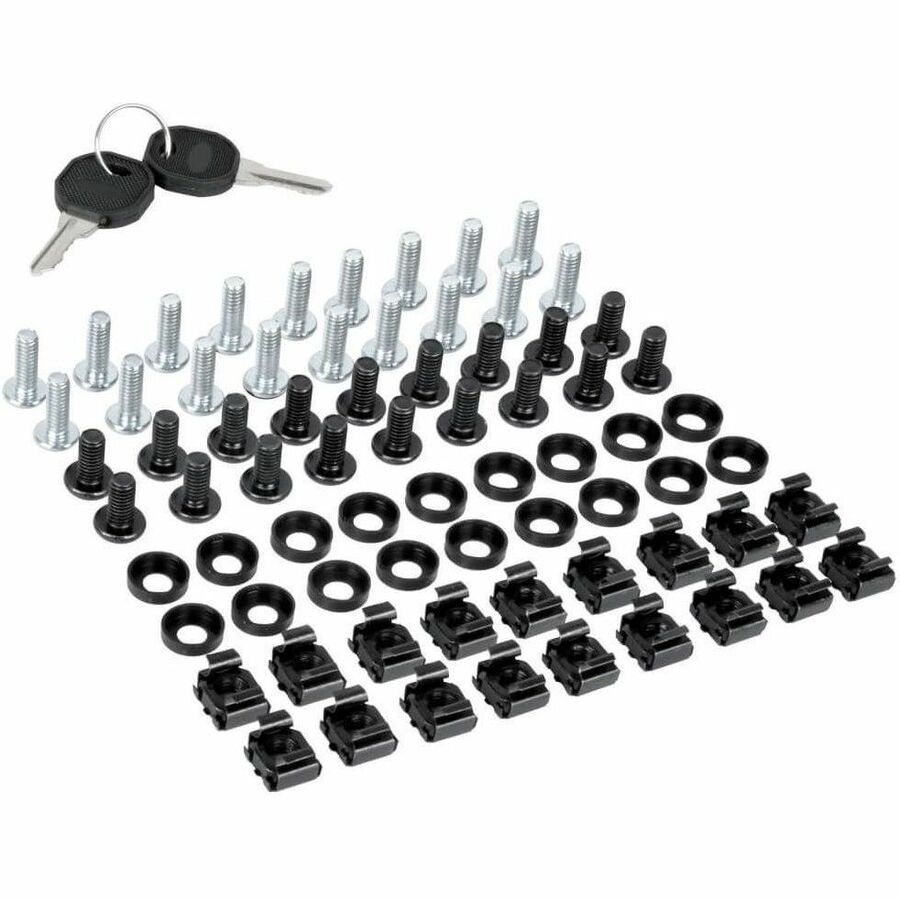

Package Contents	SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet 12 x M6 Screws 12 x M6 Cage Nuts 12 x M6 Cup Washers 12 x 12-24 Screws Removable Mounting Plate 3 x Mounting Plate Screws 2 x Keys Owner's Manual
Assembly Required	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
