Tripp Lite by Eaton SmartRack 18U UPS-Depth Wall-Mount Half-Height Rack Enclosure Clear Acrylic Window Hinged Back

Name: Tripp Lite by Eaton SmartRack 18U UPS-Depth Wall-Mount Half-Height Rack Enclosure Clear Acrylic Window Hinged Back
Brand: TRIPP LITE
SKU: 3B6864
Price: 718.66 USD
Availability: InStock

TRIPP LITE

PCN#

3B6864

MFG#

SRW18USDPG

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$718.66

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Estimated Shipment:

Product Highlights:

For UPS
18U Rack Height x 19? Rack Width x 24.50? Rack Depth
Wall Mountable
Black, Clear
Steel, Acrylic
250 lb Maximum Weight Capacity
250 lb Static/Stationary Weight Capacity

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 130 lbs.

Eaton Tripp Lite Series SmartRack 18U UPS-Depth Wall-Mount Half-Height Rack Enclosure, Clear Acrylic Window, Hinged Back

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SRW18USDPG
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	SmartRack
Product Model	SRW18USDPG
Product Name	SRW18USDPG SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet

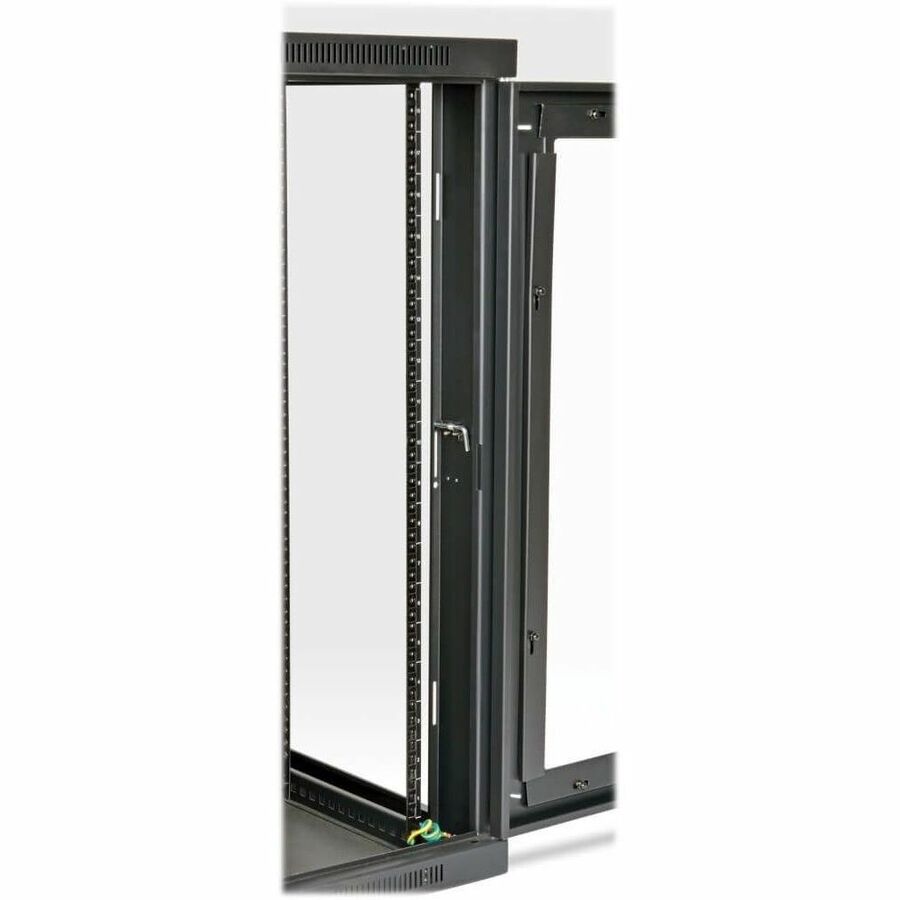

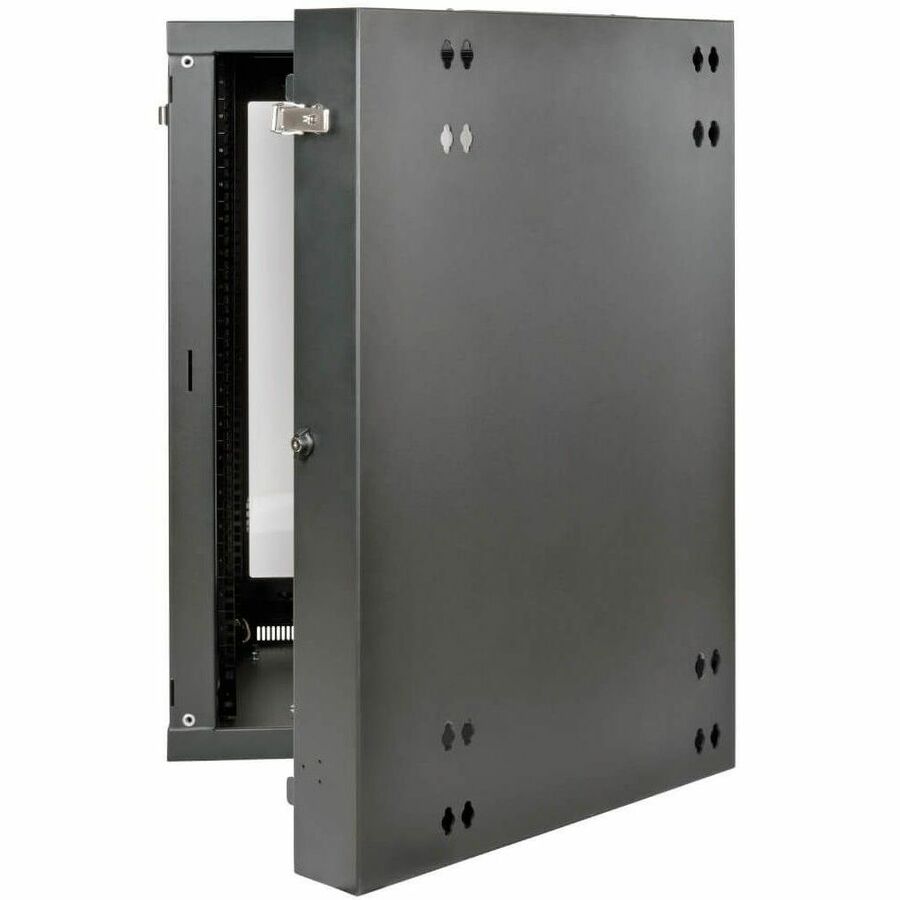

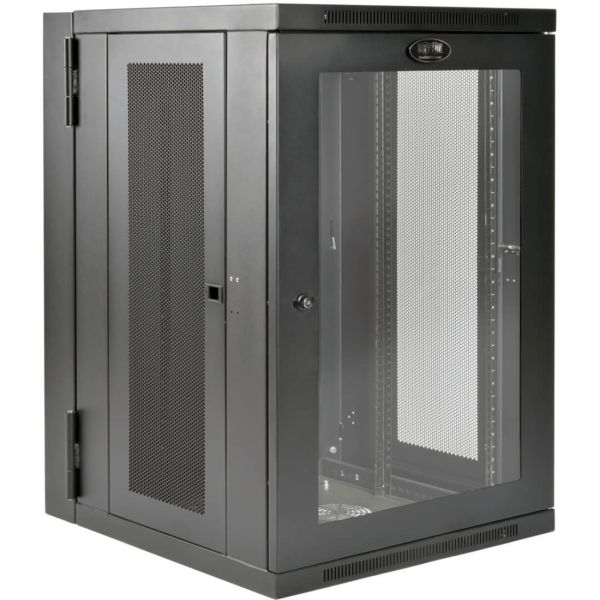

Marketing Information	The SRW18USDPG SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds. The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation. The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW18USDPG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
Product Type	Rack Cabinet

Technical Information

Application/Usage	UPS
Features	Cable Management

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Dual Color
Product Color	Black Clear
Product Material	Steel Acrylic
Maximum Weight Capacity	250 lb
Static/Stationary Weight Capacity	250 lb
Height	35.6"
Width	23.5"
Depth	26"
Weight (Approximate)	99.60 lb
Rack Height	18U
Rack Width	19"
Rack Depth	24.50"

Miscellaneous

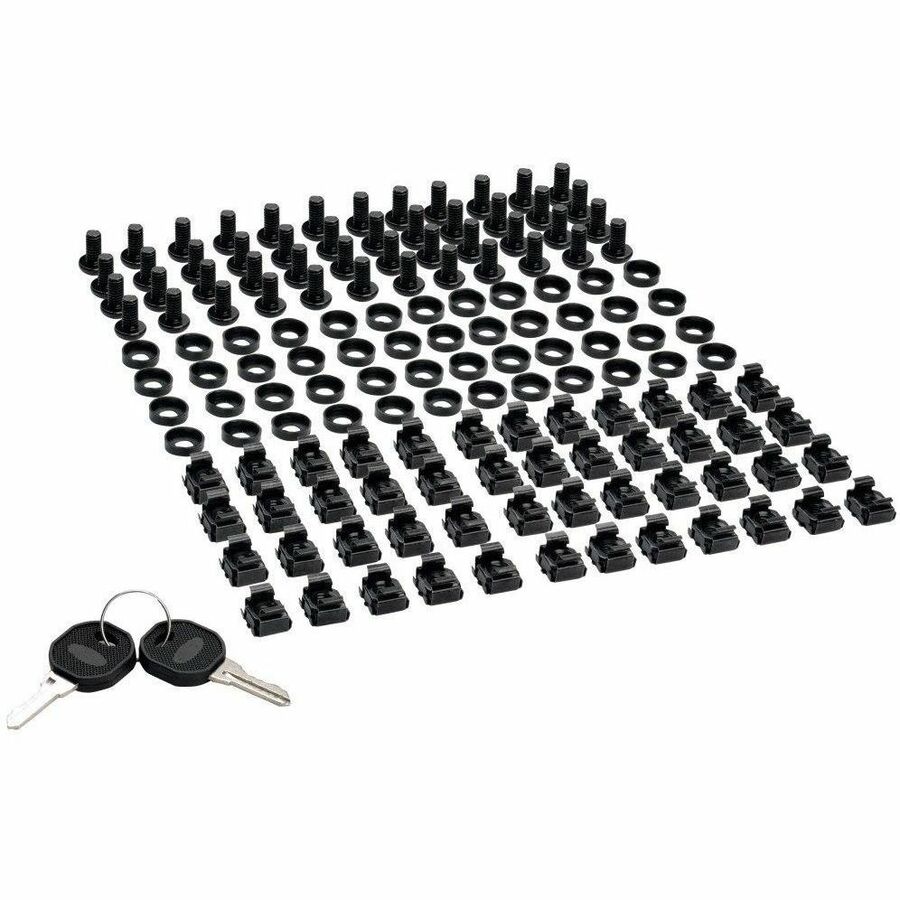

Package Contents	SRW18USDPG SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet 42 x M6 Screws 42 x M6 Cage Nuts 42 x M6 Washers 42 x 12-24 Screws 2 x Keys Owner's Manual
Assembly Required	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
