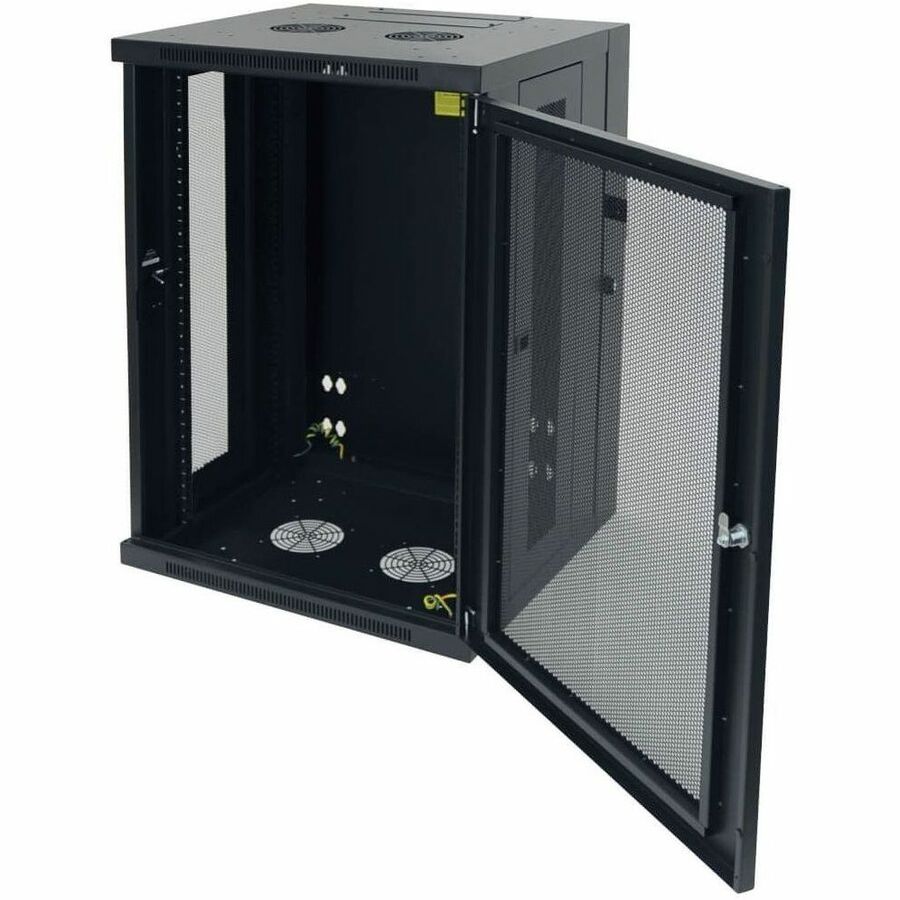

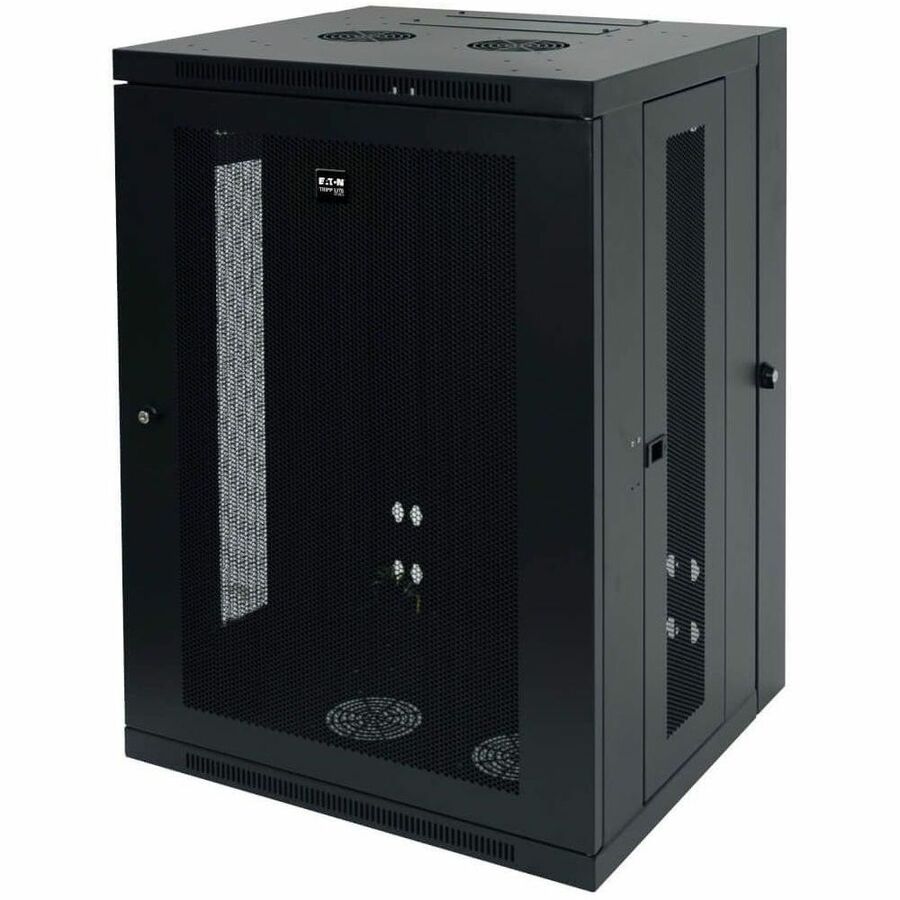

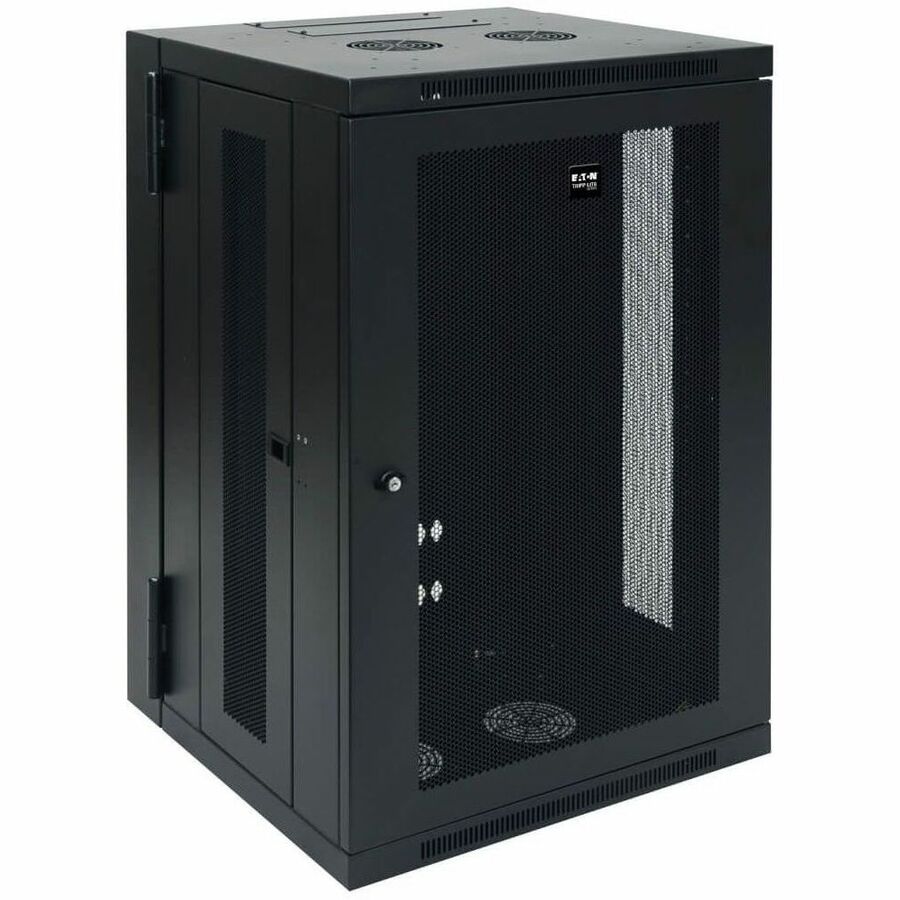

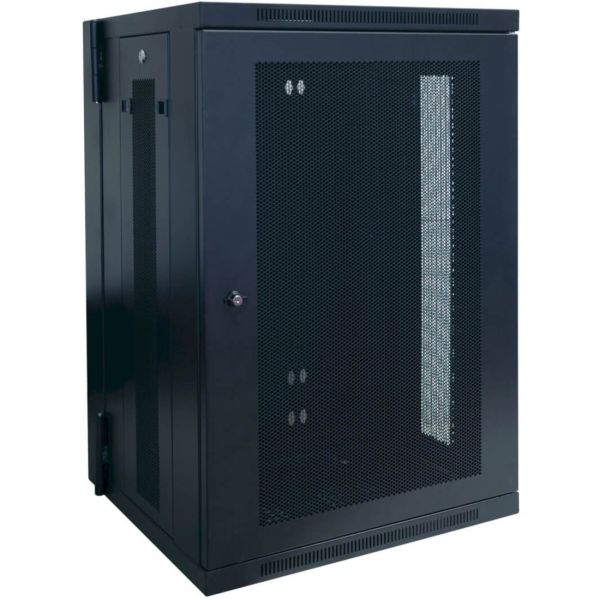

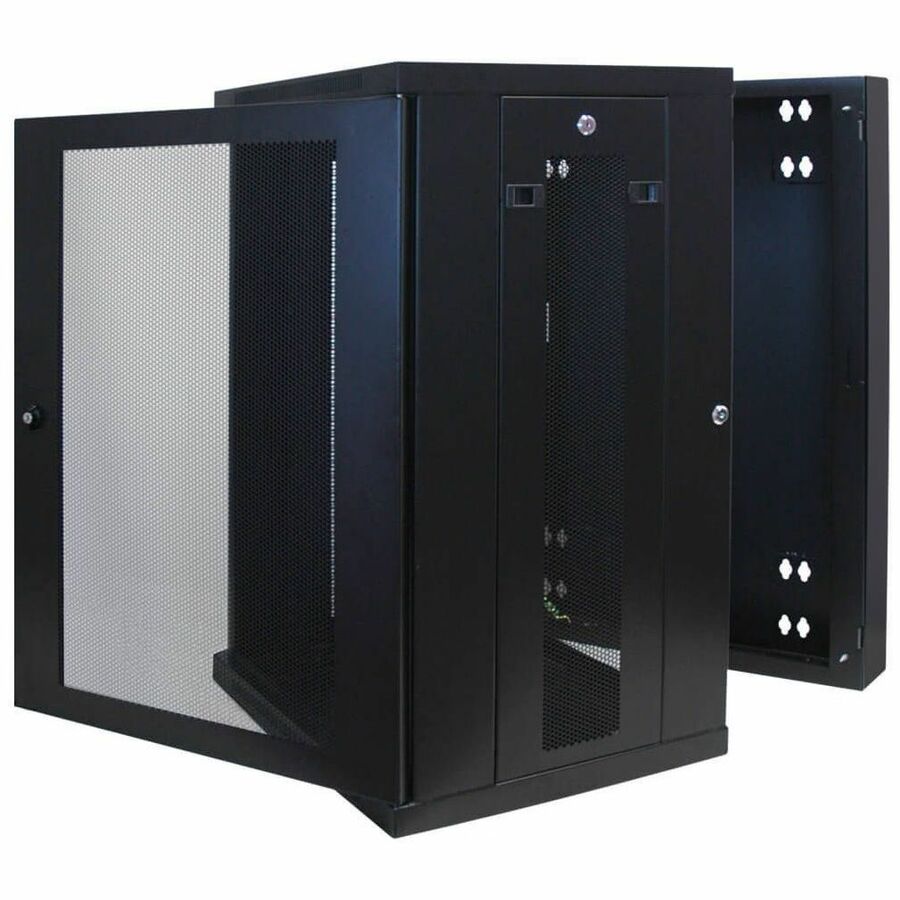

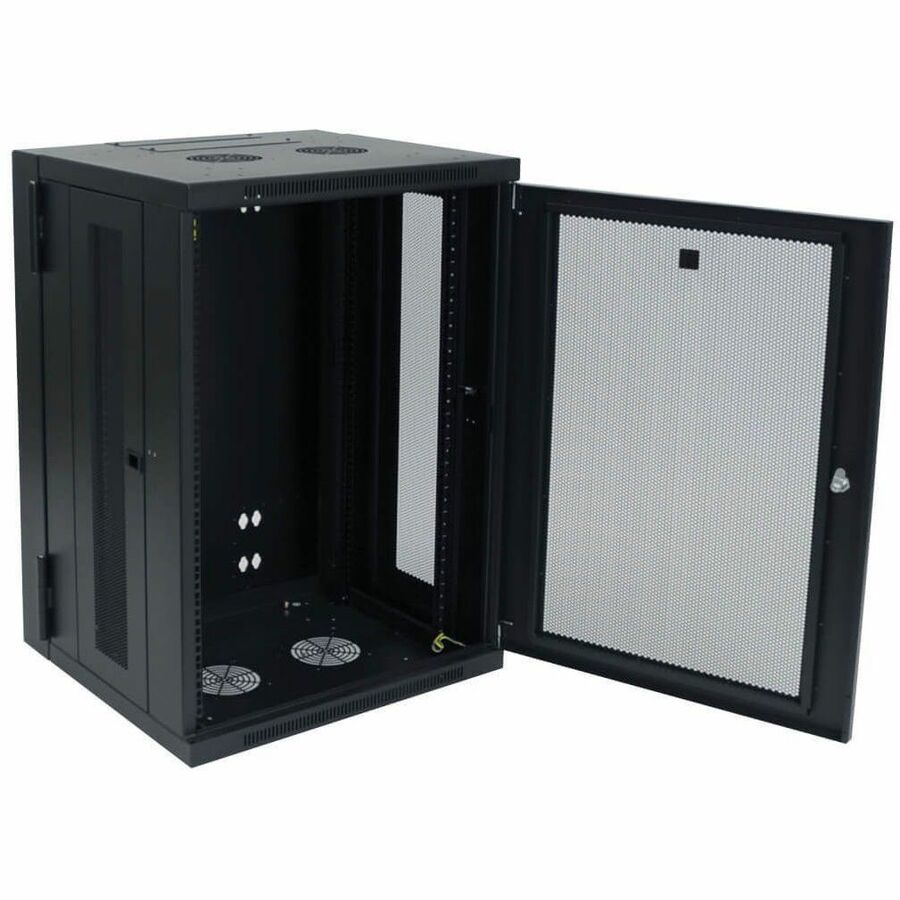

Tripp Lite by Eaton SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet Hinged Back

Name: Tripp Lite by Eaton SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet Hinged Back
Brand: TRIPP LITE
SKU: DF0387
Price: 609.32 USD
Availability: InStock

TRIPP LITE

PCN#

DF0387

MFG#

SRW18US

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$609.32

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Estimated Shipment:

Product Highlights:

19? 18U Wall Mounted

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 106 lbs.

Eaton Tripp Lite Series SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SRW18US
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	SmartRack
Product Model	SRW18US
Product Name	SRW18US Wall mount Rack Enclosure Server Cabinet
Marketing Information	The SRW18US SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW18US comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
Product Type	Rack Cabinet

Technical Information

Rack Type

Enclosed Cabinet

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Maximum Weight Capacity	250 lb
Static/Stationary Weight Capacity	250 lb
Height	35.6"
Width	23.6"
Depth	21.6"
Weight (Approximate)	98 lb
Rack Height	18U
Rack Width	19"

Miscellaneous

Additional Information	Adjustable mounting depths from 3" to 20.5" inches Heavy duty construction to handle added leverage Ventilated front door and side panels for increased airflow Hinged cabinet swings away from wall bracket for easy equipment and cable access Top and bottom panel cable access openings Fully assembled for quick installation
Certifications & Standards	UL/CSA 60950-1 EIA-310-D IEC 60297-3-100 IP20 Protection Rating
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
