Tripp Lite by Eaton SmartRack 12U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure Clear Acrylic Window Hinged Back

Name: Tripp Lite by Eaton SmartRack 12U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure Clear Acrylic Window Hinged Back
Brand: TRIPP LITE
SKU: CW5120
Price: 367.62 USD
Availability: InStock

TRIPP LITE

PCN#

CW5120

MFG#

SRW12USG

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$367.62

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Estimated Shipment:

Product Highlights:

19? 12U Wall Mounted

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 70 lbs.

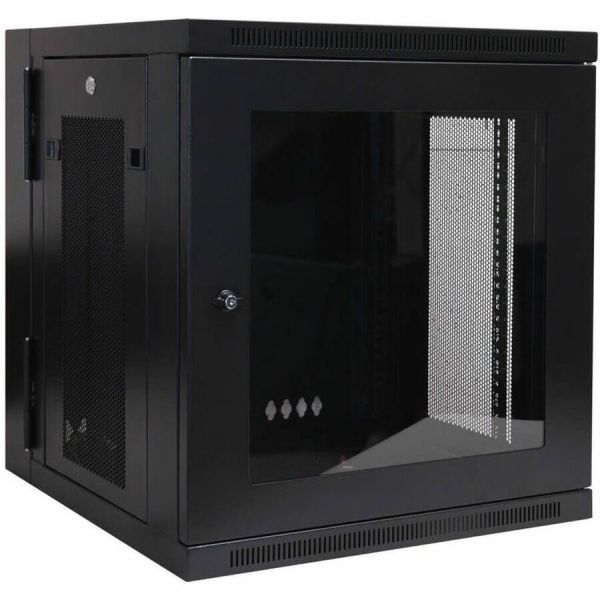

Eaton Tripp Lite Series SmartRack 12U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Clear Acrylic Window, Hinged Back

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SRW12USG
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	SmartRack
Product Model	SRW12USG
Product Name	SRW12USG Wall mount Rack Enclosure Server Cabinet w/ Plexiglass Door
Marketing Information	The SRW12USG SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation. The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW12USG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
Product Type	Rack Cabinet

Physical Characteristics

Form Factor	Wall Mountable
Product Material	Plexiglas
Maximum Weight Capacity	140 lb
Height	25"
Width	23.6"
Depth	21.6"
Rack Height	12U
Rack Width	19"

Miscellaneous

Package Contents	SmartRack SRW12USG Wall Mount Enclosure Rack Cabinet Convenient Cutouts for Cable Routing

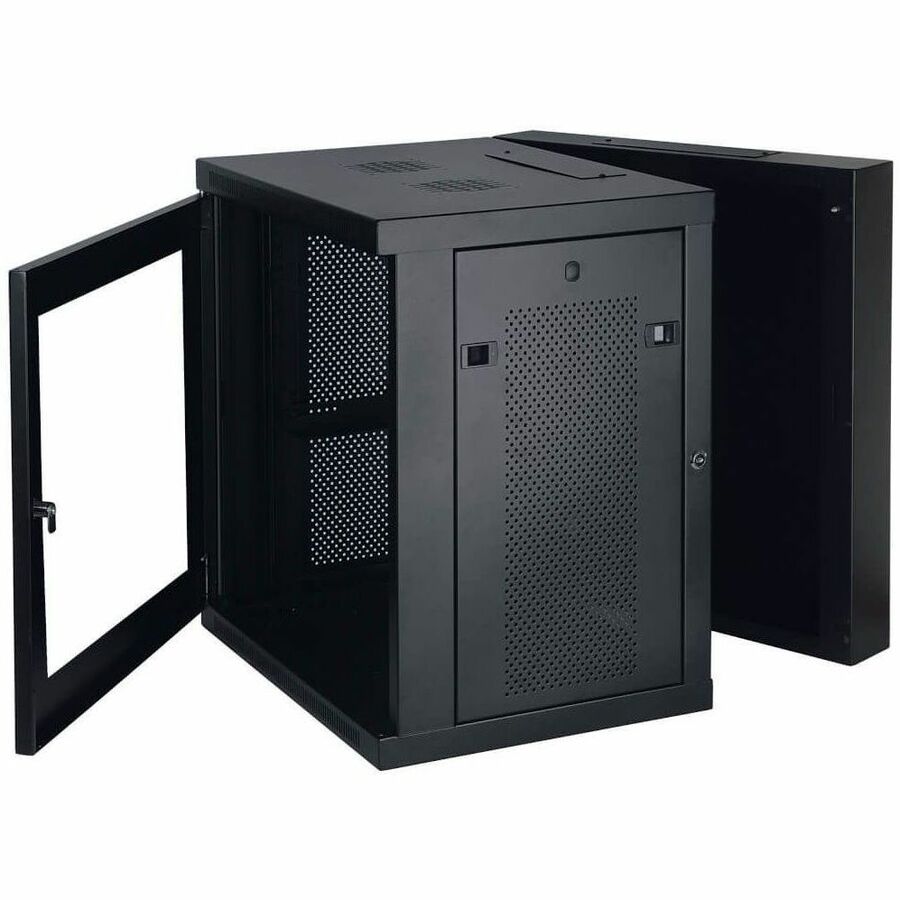

Additional Information	Hinged cabinet swings away from wall bracket for easy equipment and cable access
Country of Origin	China
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

5 Year
