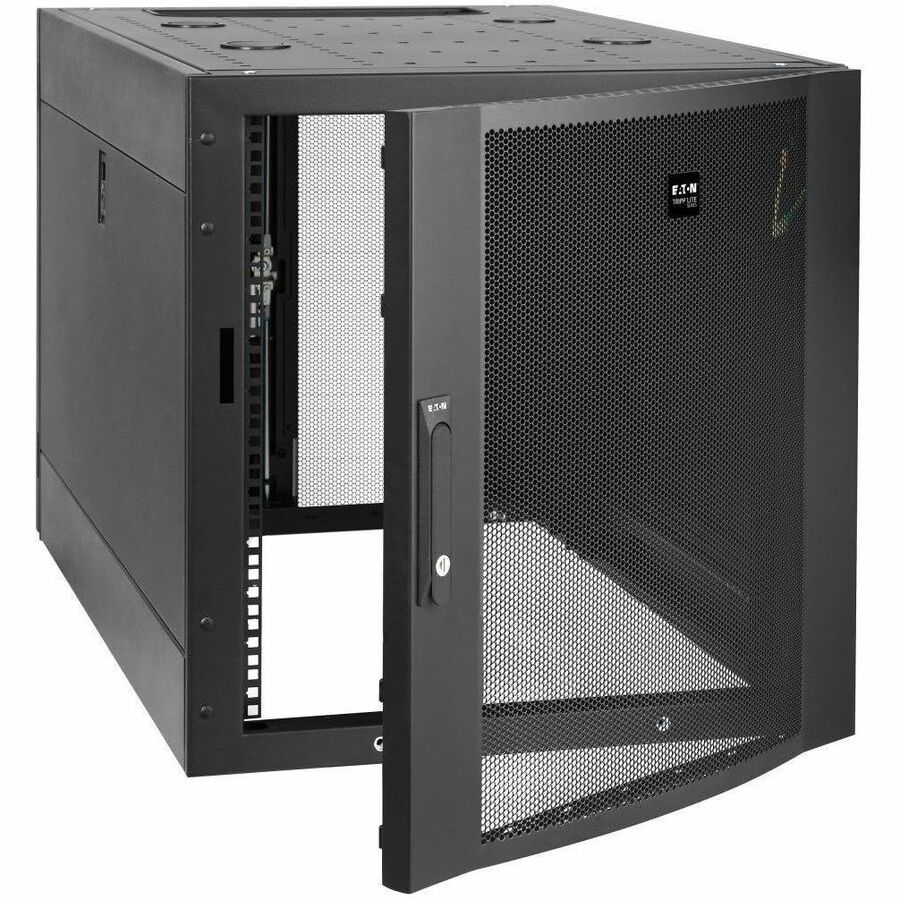

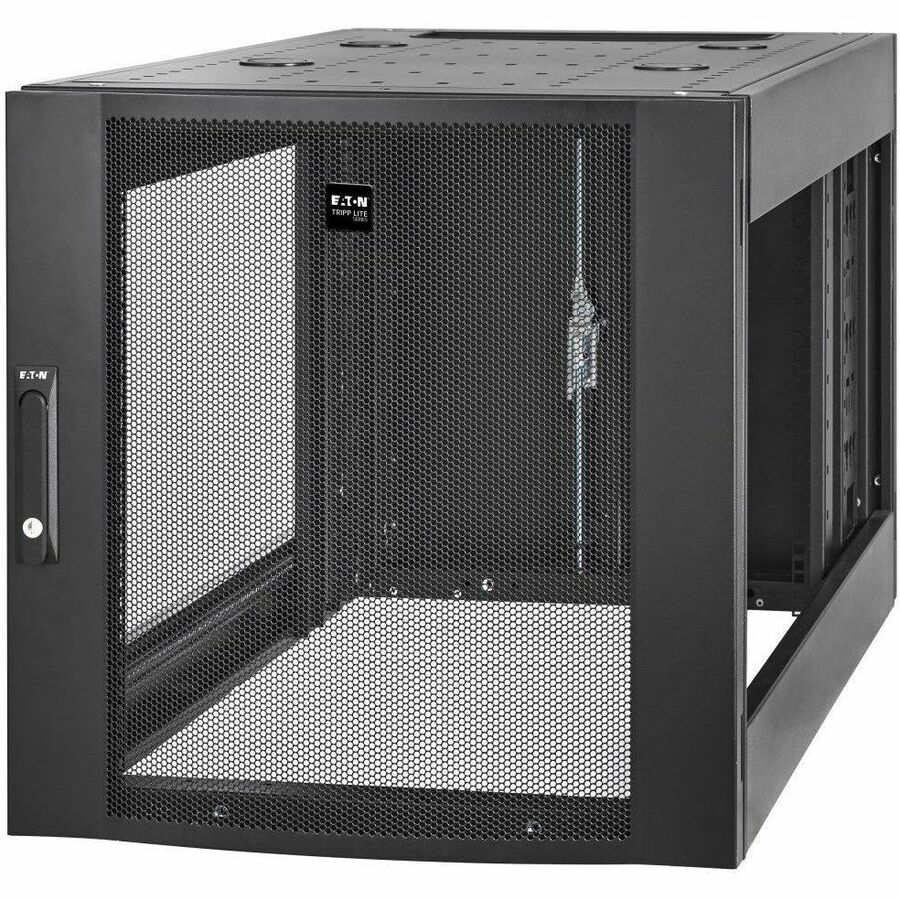

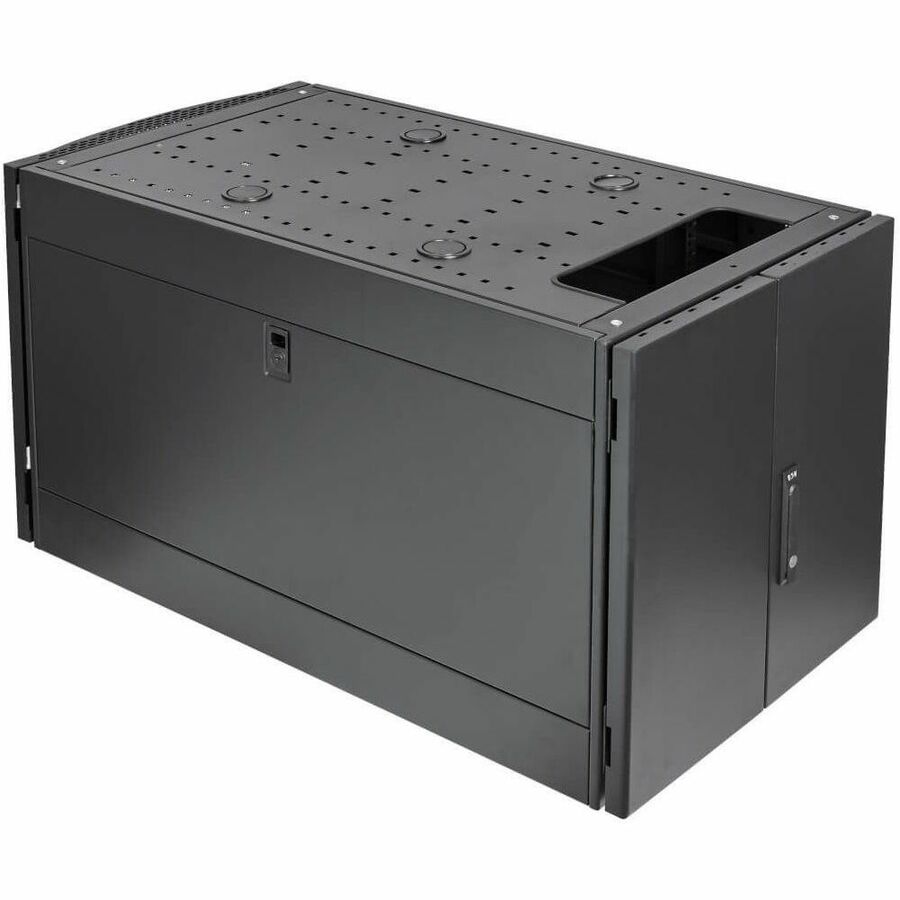

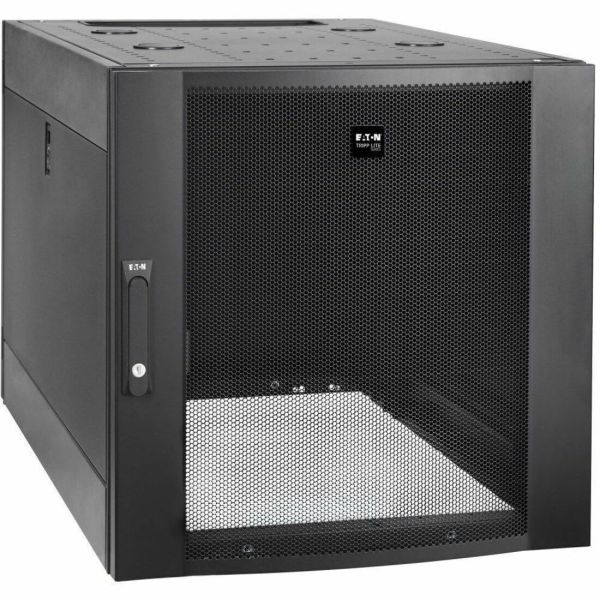

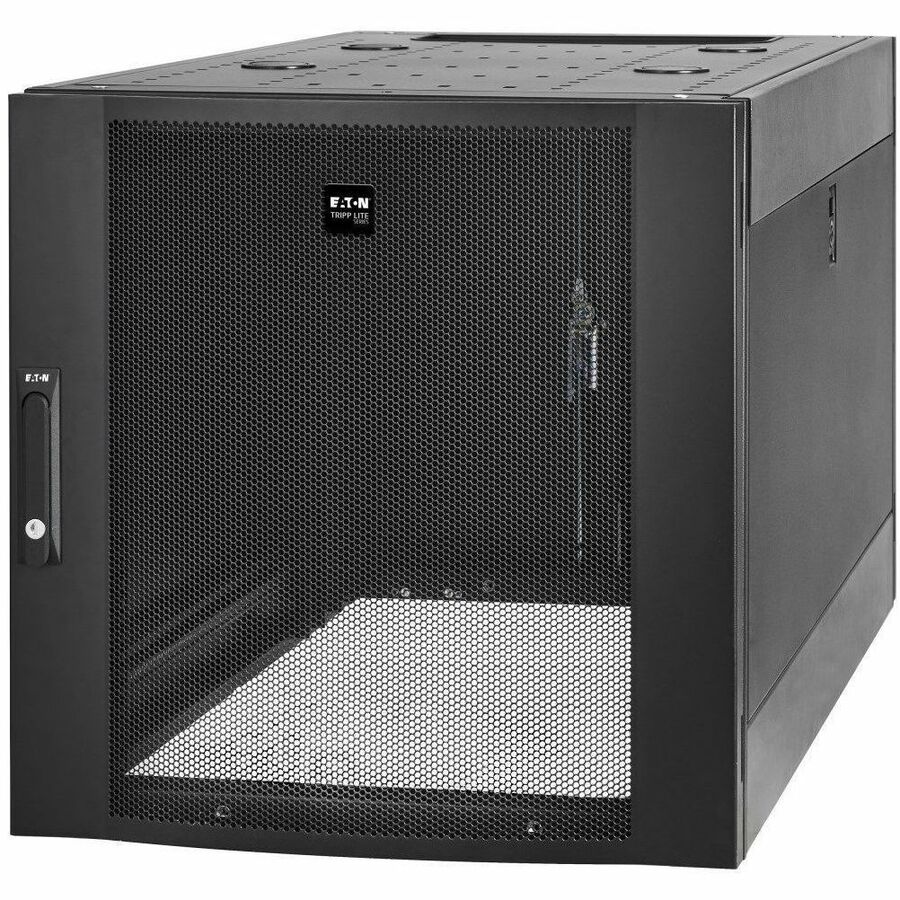

Tripp Lite by Eaton SmartRack 12U Vertical Extension Top Hat for Server Racks - 42 in. Deep Doors & Side Panels Included

Features l Standard-Depth 12U Top Hat Expands Your Rack Application without Adding Floor Space

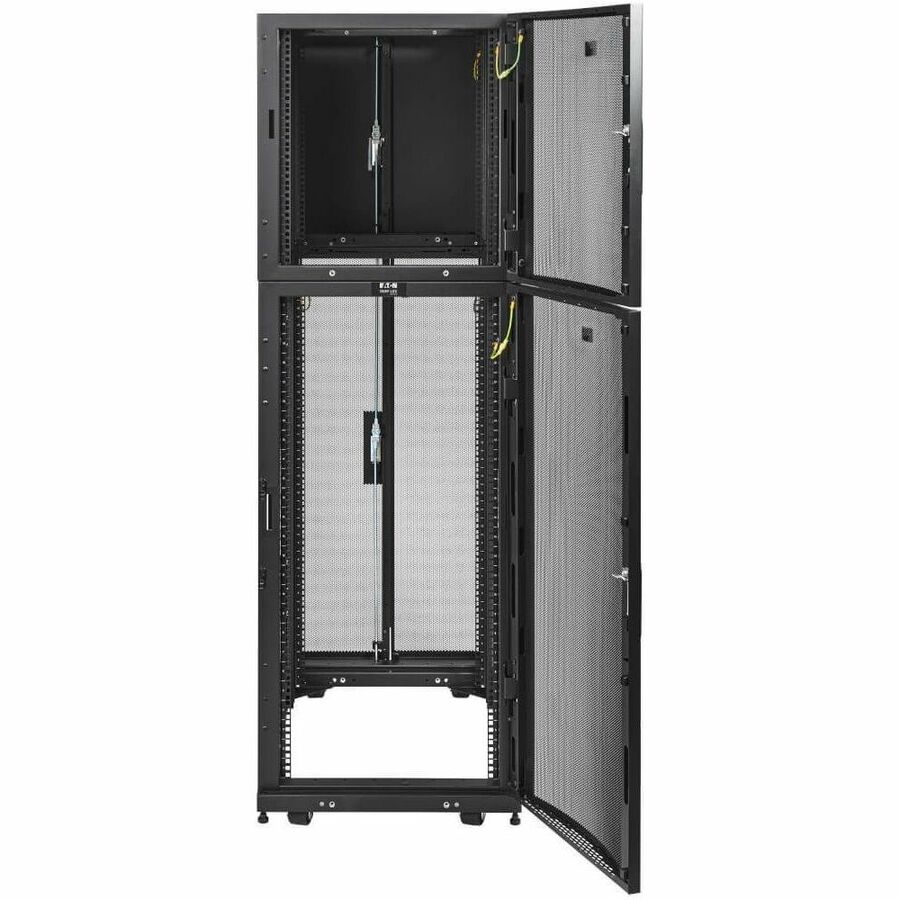

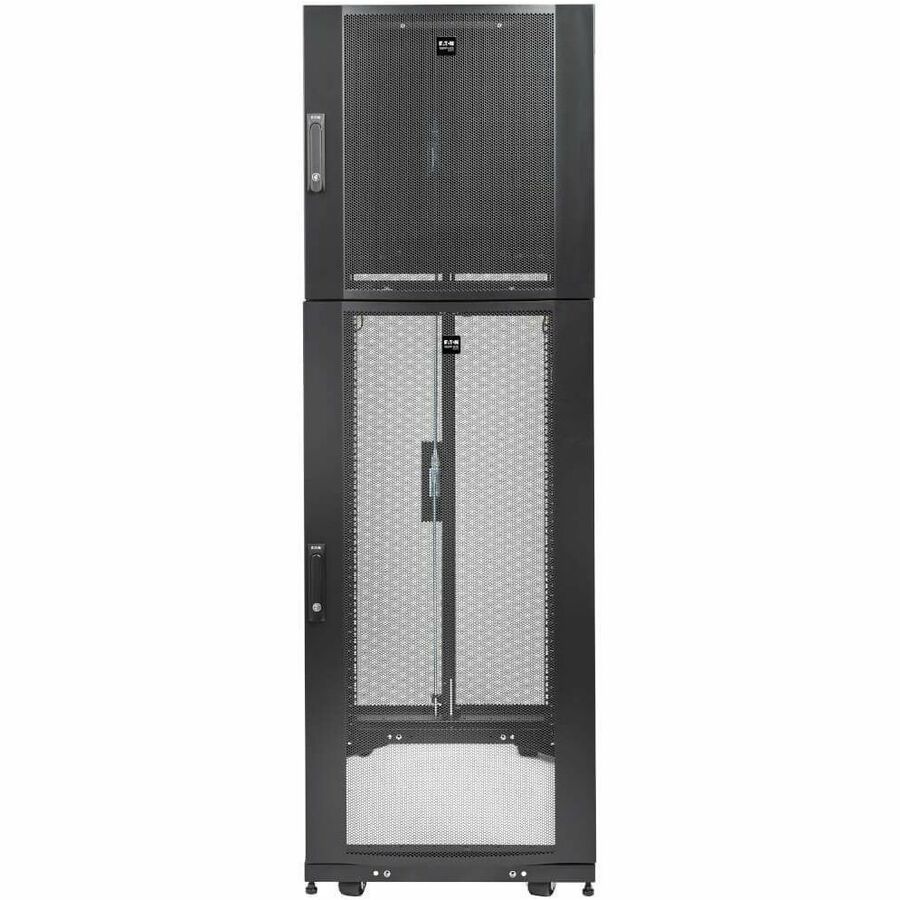

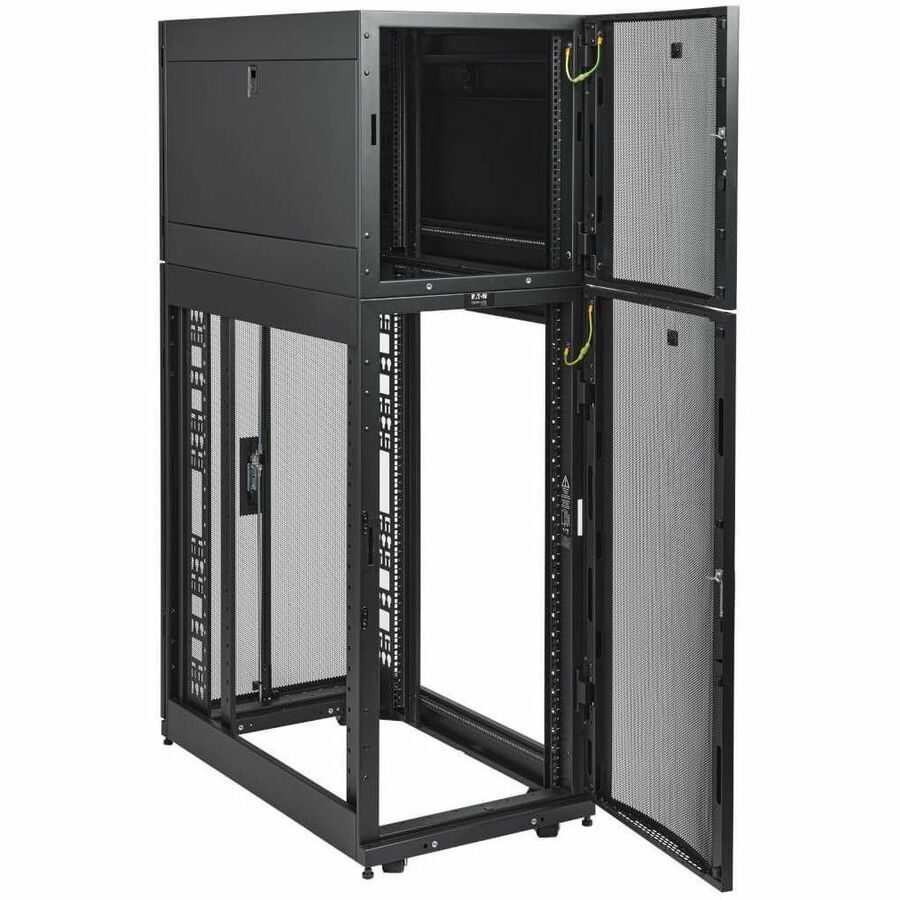

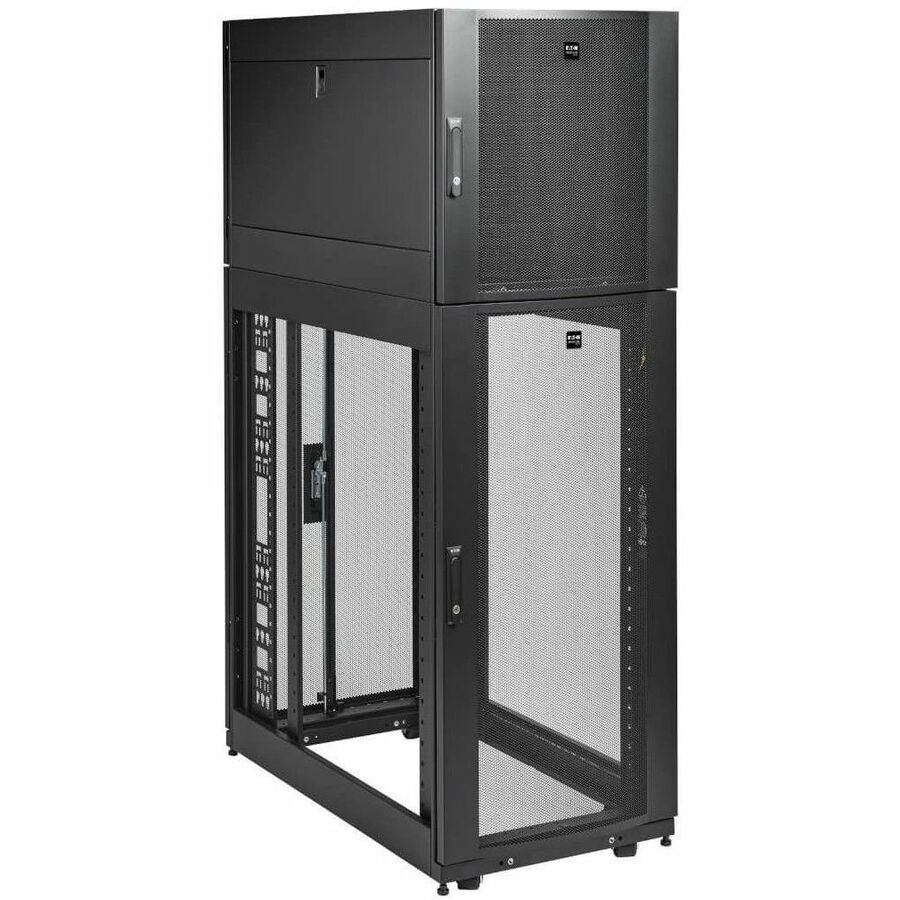

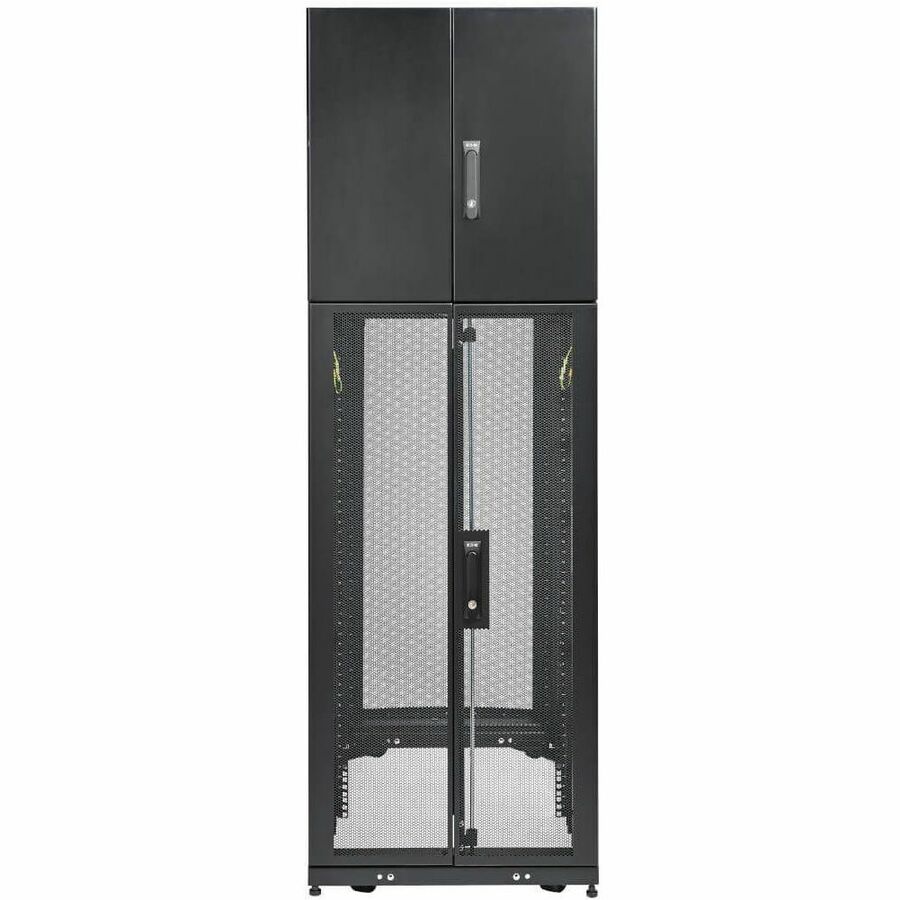

This SmartRack® 12U vertical expansion rack is ideal for users who want to add rack equipment, but have limited floor space in their server room or data center. The SRTH12UB attaches to the top of your already existing SmartRack floor-standing rack, allowing you to expand vertically without taking up any additional floor space. Hardware for assembly and mounting is included.

Expanding Upward Keeps Your Costs Down
Adding a vertical extension to your existing rack is a practical alternative to expensive upgrades. By adding 12U to the top of your enclosure, you save the time, hassle and expense of purchasing and installing a new larger rack and moving all the equipment.

Easy to Integrate into Your Current Application
The SRTH12UB is compatible with standard-depth Tripp Lite floor-standing racks (600 millimeters wide, 1050 millimeters deep) with a removable roof panel. Extensions require assembly on top of the rack, allowing the installation of one component at a time. Multiple grounding points are included on the extensions. Note: You do not have to remove the roof panel of the original rack to install the top hat.

Keeps Important Equipment Secure

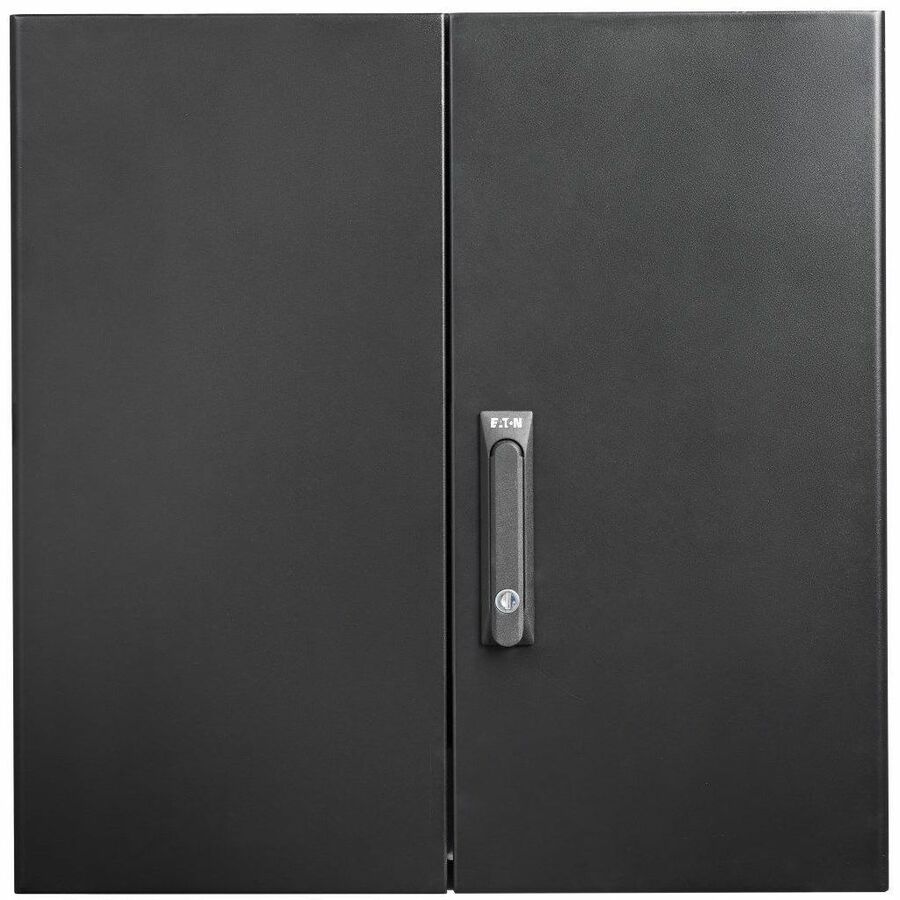

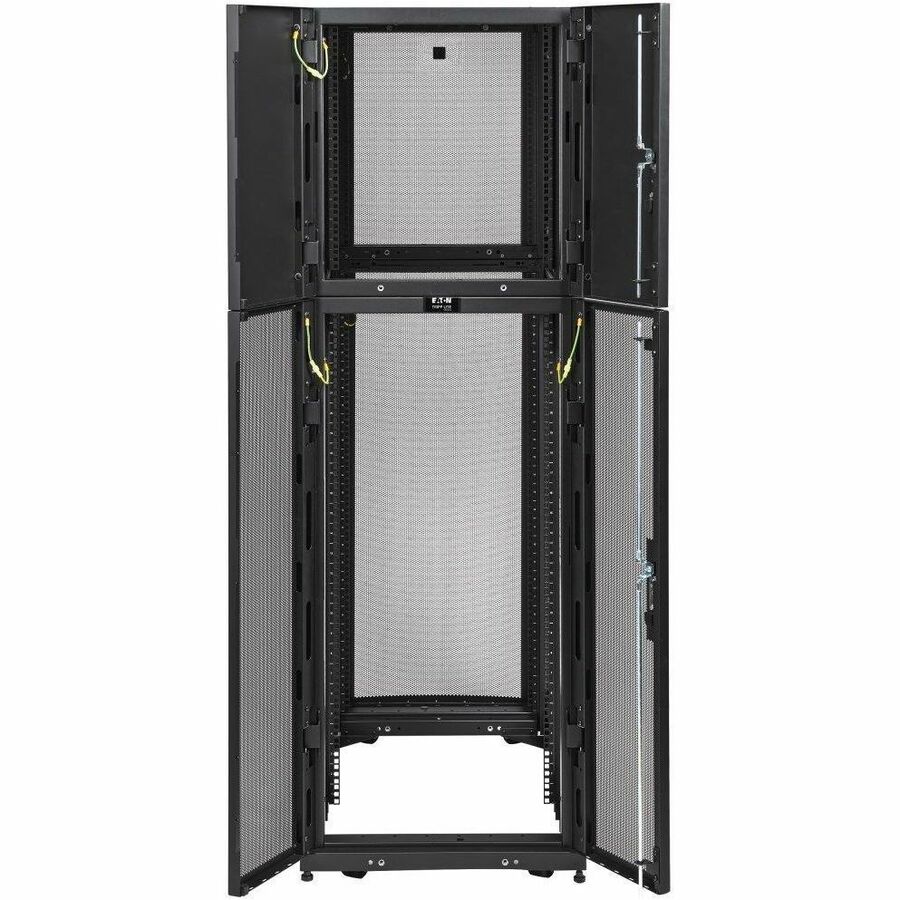

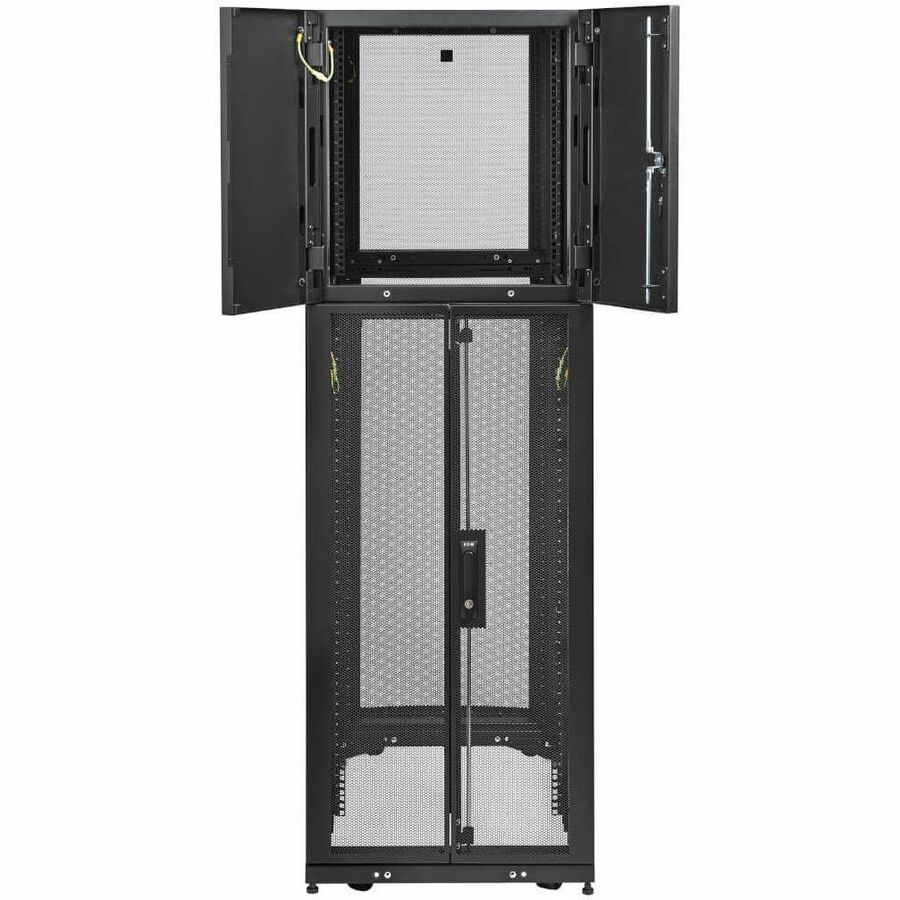

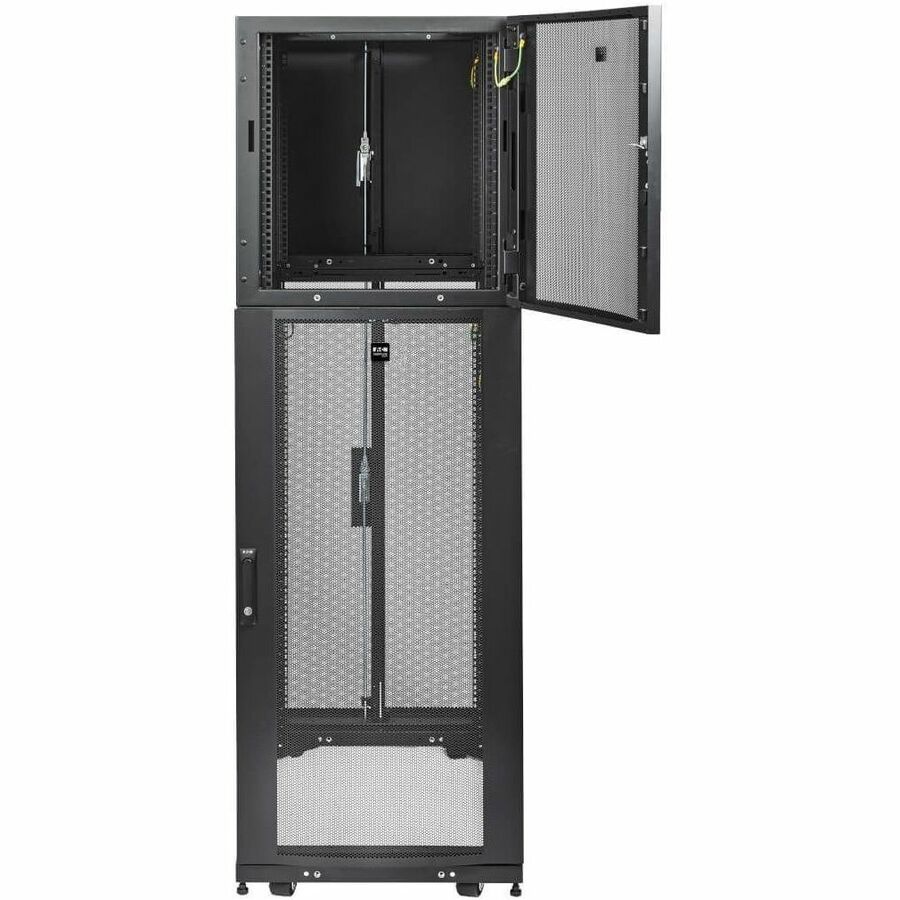

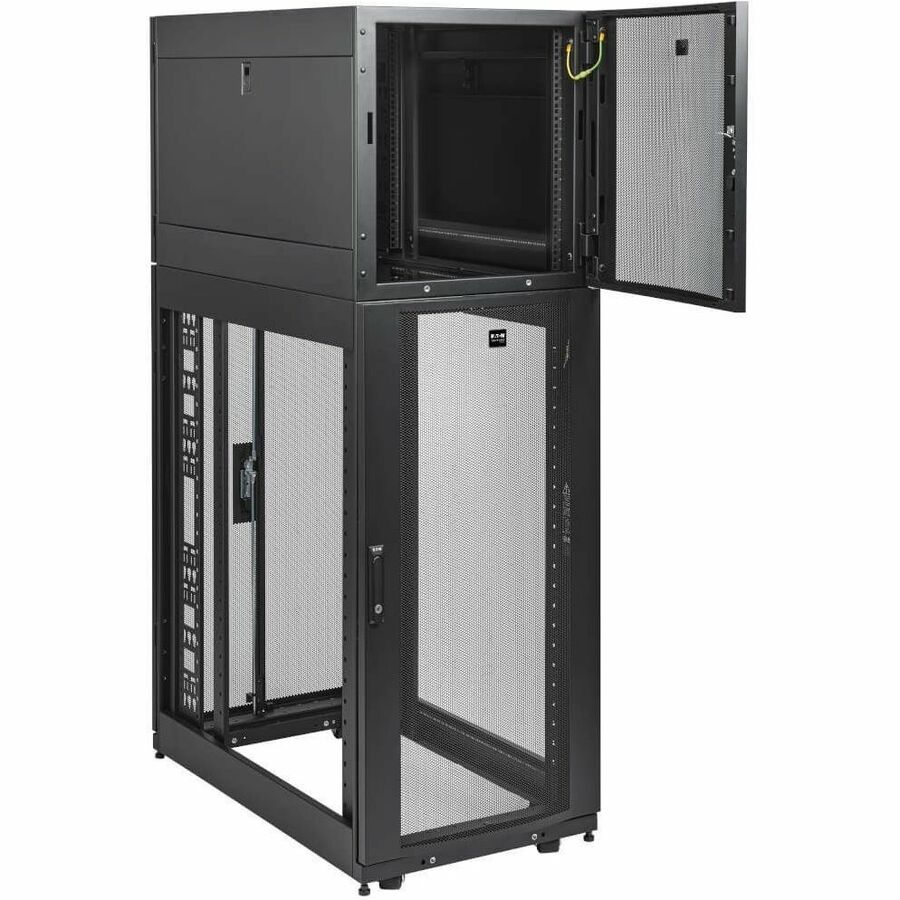

The adjustable mounting rails accommodate standard 19-inch rack equipment. The reversible front door, split rear doors and side panels lock securely to help prevent damage, tampering or theft. The doors, side panels and roof panel are designed for quick release, making it easy to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet.

Meets Payment Card Industry Standards
The SRTH12UB provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information.

• Networking
• LAN Switch
• Patch Panel
• PDU
• Router
• Server
• UPS

• Removable Panel
• Adjustable Mounting Rails
• Reversible Door
• Lockable Door
• Lockable Side Panel
• Removable Door
• Removable Side Panel
• Cable Management

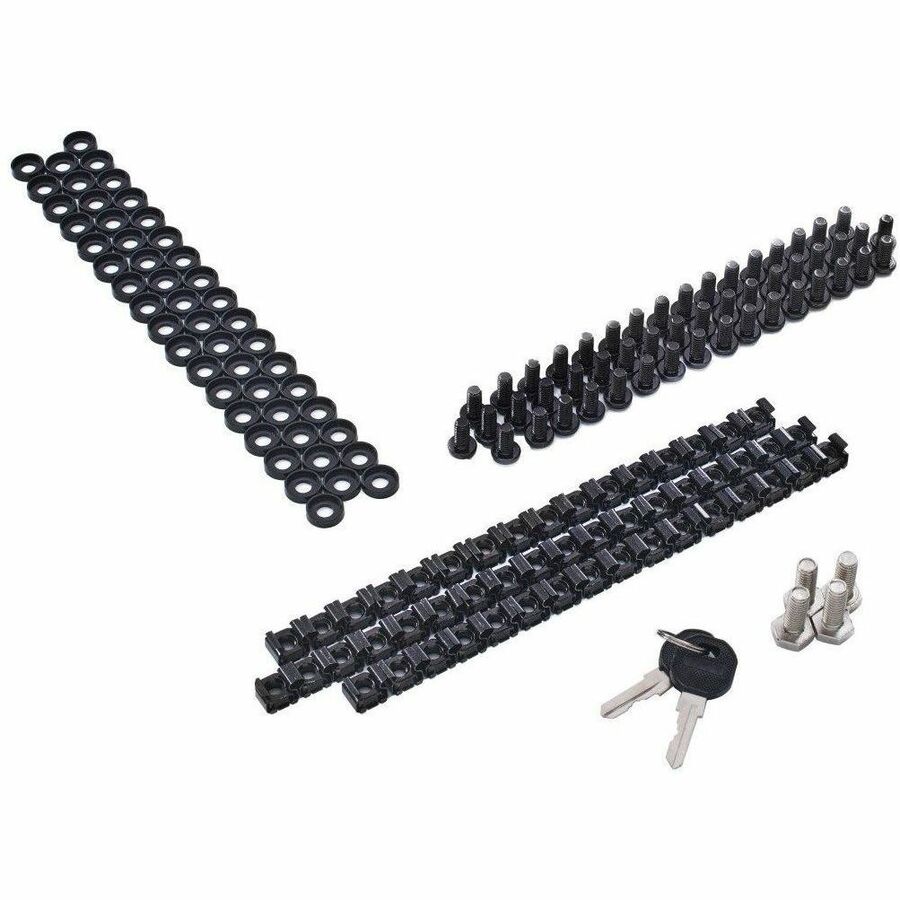

• SRTH12UB Vertical Extension Top Hat
• 2 x Keys
• 16 x M6 x 12 screws
• 41 x M4 x 8 Screws With Lock Washers
• 4 x 8.8 Flange Head Cap Screws
• 6 x Ground Wires
• Assembly Instructions
• Owner's Manual
