Tripp Lite by Eaton UPS TAA-Compliant SmartPro 120V 500VA 300W Line-Interactive UPS 1U Rack/Vertical Network Card Options USB DB9 Serial

Name: Tripp Lite by Eaton UPS TAA-Compliant SmartPro 120V 500VA 300W Line-Interactive UPS 1U Rack/Vertical Network Card Options USB DB9 Serial
Brand: TRIPP LITE
SKU: XU0156
Price: 232.32 USD
Availability: InStock

TRIPP LITE

PCN#

XU0156

MFG#

SMART500RT1UTAA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$232.32

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

1U Rack/Tower
3.20 Minute Stand
by
120 V AC Input
120 V AC Output
7 x NEMA 5
15R
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 20 lbs.

Tripp Lite by Eaton TAA-Compliant SmartPro 120V 500VA 300W Line-Interactive UPS, 1U Rack/Vertical, Network Card Options, USB, DB9 Serial - Battery Backup

Overview

Tech Specs

Specifications

Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SMART500RT1UTAA
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	SmartPro
Product Model	SMART500RT1UTAA
Product Name	SmartPro SMART500RT1UTAA 500VA Tower/Rack Mountable UPS
Marketing Information	Tripp Lite's SMART500RT1UTAA intelligent, line-interactive rack/tower uninterruptible power supply prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Requires only one rack space (1U) in a 2 or 4 post rack, with included accessories for upright tower placement. Large internal batteries offer 14.6 minutes half load runtime and 3.2 minutes at full load. Maintains regulated 120V nominal output without using battery power during brownouts as low as 90V. 500VA/300 watt power handling capability is compatible with networking, telecom and other sensitive electronic applications. Includes 6 UPS supported outlets with a single outlet load bank that can be individually controlled via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Includes 1 surge-only outlet for peripherals not requiring battery backup. Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency situation. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive all-black color scheme.
Product Type	Line-interactive UPS

Technical Information

Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R

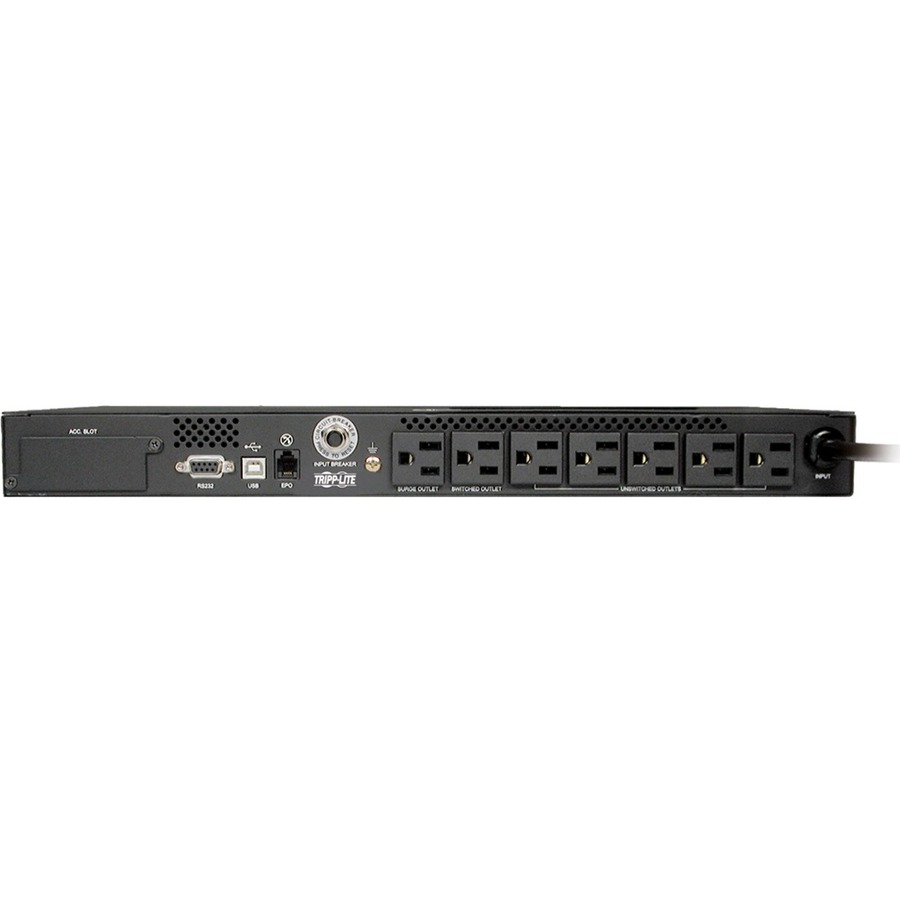

Receptacle Detail	7 x NEMA 5-15R
Dataline Protection	RJ-11 RJ-45
Protection Type	Brownout Surge Transient Line Noise EMI / RFI
Emergency Power OFF	Yes
Cord Length	10 ft

Power Description

Load Capacity (VA)	500 VA
Load Capacity (Watt)	300 W
Input Voltage	120 V AC
Input Current	5.60 A
Output Voltage	120 V AC
Waveform Type	Sine Wave Pulse-width Modulated Sine Wave
Surge Energy Rating	567 J

Management

Alarm	Power Failure Overload Low Battery
Battery Management	Field-replaceable

Controls/Indicators

Status Indicators

LED

Interfaces/Ports

Serial Port	Yes
Modem (RJ-11)	Yes
Network (RJ-45)	Yes
USB	Yes

Battery Information

Backup/Run Time (Full Load)	3.20 Minute
Backup/Run Time (Half Load)	14.60 Minute
Hot Swappable	Yes

Environmental Conditions

Maximum Operating Temperature

104°F (40°C)

Physical Characteristics

Height	1.7"
Width	17.5"
Depth	11.8"
Rack Height	1U
Form Factor	Rack/Tower
Weight (Approximate)	17.60 lb

Miscellaneous

Package Contents	SmartPro SMART500RT1UTAA 500VA Tower/Rack Mountable UPS Mounting Hardware Cabling for USB & DB9 Monitoring and EPO Switching Instruction Manual
Certifications & Standards	TAA GSA UL1778 (USA) CSA (Canada) NOM (Mexico) FCC Part 15 Category B (EMI)
Software Included	PowerAlert unattended shutdown and UPS/Power monitoring
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

2 Year
